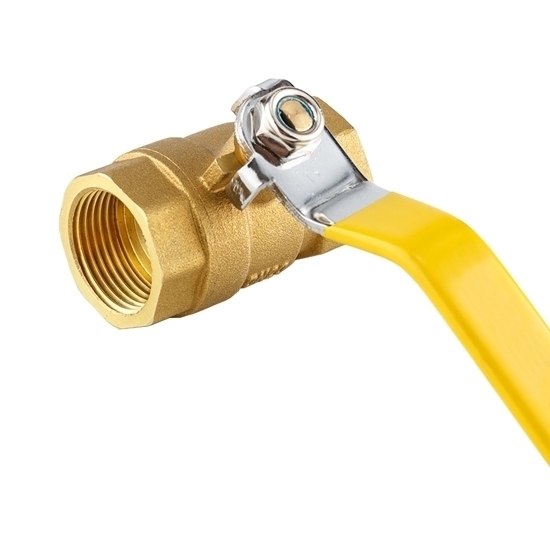

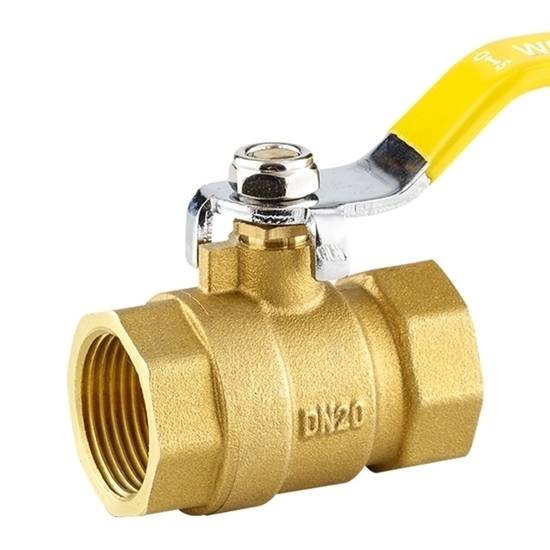

1" Brass Ball Valve, 2 Piece

0 reviews • Write a review

from

$47.69

Ex Tax: $47.69

Stock: In Stock
Model: RDDLZ-BBV-DN25
Weight: 1.00
SKU: RDDLZ-BBV-DN25

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note:

Unsalable status.
This brass ball valve can not be used for drinking water.

The valve body is made from high-quality brass forging to prevent leakage. Brass ball valve is manufactured by a high-precision special machine with low flow resistance. The medium inside the valve body has a straight channel, and the medium flows in a straight line.

Specification

Model: RDDLZ-BBV-DN25
Size: 1 inch (DN25)
Nominal Pressure: 1.6MPa
Body Material: Brass
Connection Type: Thread
Standard: Compliant with ISO 228 Standard
Applicable Temperature: -10℃≤T≤120℃
Working Medium: Water, Oil, Non-Corrosive and Non-Combustible Gas
Weight: 350g

Dimensions & Details (Unit: mm)

DN	Size	L	B	H	D
25	1	65	22	60.5	105

Number	1	2	3	4	5	6	7	8	9
Component	Valve Body	Valve Cap	Valve Seat	Valve Ball	Valve Stem	Filler	Iron Handle	Pressure Cap	Locknut
Material	Brass	Brass	PTFE	Iron	Brass	PTFE	Iron	Brass	Stainless Steel

Tips: Difference between floating ball valve and fixed ball valve

The ball of the floating ball valve is floating. Under the action of the medium pressure, the ball can produce a certain displacement and be tightly pressed on the sealing ring at the outlet end to ensure the sealing of the outlet end, which is a single-sided forced seal.

The sphere of the fixed ball valve is fixed and does not move after being pressed. Therefore, the two sealing rings should have sufficient pre-tightening force to ensure the sealing during design, which is a double-sided forced sealing. Thrust or sliding bearings are usually installed on the upper and lower valve stems that are integral with the ball.

When designing a floating ball valve, it is important to consider whether the material of the sealing ring can withstand the medium load of the ball. Because the load of the ball bearing the working medium is all transferred to the outlet sealing ring, this floating ball structure is widely used in medium and low pressure ball valves. In addition, the design should also consider the large torque required for the operation of the large-diameter ball valve.
