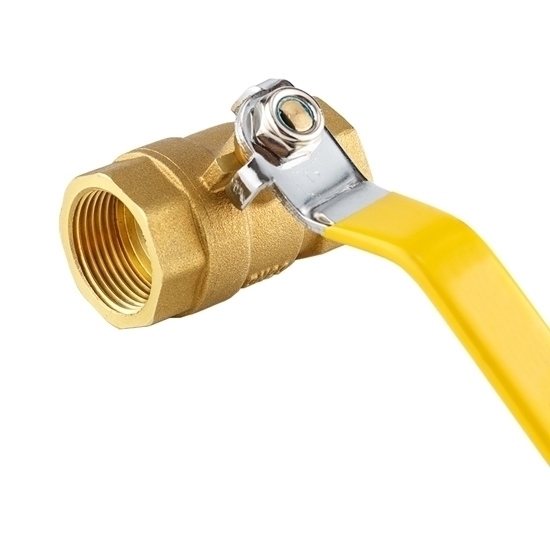

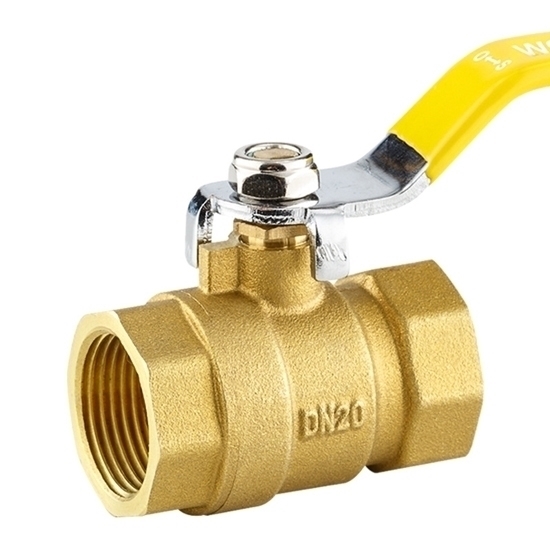

1-1/2" Brass Ball Valve, 2 Piece

0 reviews • Write a review

from

$75.79

Ex Tax: $75.79

Stock: In Stock
Model: RDDLZ-BBV-DN40
Weight: 1.00
SKU: RDDLZ-BBV-DN40

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note:

Unsalable status.
This brass ball valve can not be used for drinking water.

The valve body is made from high-quality brass forging to prevent leakage. Brass ball valve is manufactured by a high-precision special machine with low flow resistance. The medium inside the valve body has a straight channel, and the medium flows in a straight line.

Specification

Model: RDDLZ-BBV-DN40
Size: 1-1/2 inch (DN40)
Nominal Pressure: 1.6MPa
Body Material: Brass
Connection Type: Thread
Standard: Compliant with ISO 228 Standard
Applicable Temperature: -10℃≤T≤120℃
Working Medium: Water, Oil, Non-Corrosive and Non-Combustible Gas
Weight: 860g

Dimensions & Details (Unit: mm)

DN	Size	L	B	H	D
40	1-1/2	84	35	76	130

Number	1	2	3	4	5	6	7	8	9
Component	Valve Body	Valve Cap	Valve Seat	Valve Ball	Valve Stem	Filler	Iron Handle	Pressure Cap	Locknut
Material	Brass	Brass	PTFE	Iron	Brass	PTFE	Iron	Brass	Stainless Steel

Tips: Brass ball valve advantages

Open and close without friction. This function completely solves the problem that the traditional valve will affect the sealing due to the friction between the sealing surfaces.
Top-loading structure. The valve installed on the pipeline can be directly inspected and maintained online, which can effectively reduce the shutdown of the device and reduce the cost.
Single valve seat design. It eliminates the problem that the medium in the cavity of the valve affects the safety of use due to abnormal pressure increase.
Low torque design. The valve stem with special structure design can easily open and close the valve with only a small handle.
Wedge-shaped sealing structure. The valve relies on the mechanical force provided by the valve stem to press the ball wedge onto the valve seat to seal, so that the sealing performance of the valve is not affected by the change of pipeline pressure difference, and the sealing performance is reliably guaranteed under various working conditions.
Self-cleaning structure of sealing surface. When the ball is tilted away from the valve seat, the fluid in the pipeline passes 360° evenly along the sealing surface of the ball, which not only eliminates the local scouring of the valve seat by the high-speed fluid, but also washes away the accumulation on the sealing surface to achieve the purpose of self-cleaning.
