Fixed Hydrogen Sulfide (H2S) Gas Detector, 0 To 50/100/200 Ppm

0 reviews • Write a review

from

$486.77

Ex Tax: $486.77

Stock: In Stock
Model: GD300-H2S
Weight: 1.00
SKU: GD300-H2S

Available Options

Measuring Range

Signal Output

Relay Output

Power Adapter

Calibration Kit

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Fixed hydrogen Sulfide (H₂S) gas detector is used to monitor the H₂S concentration with measuring range from 0 to 50/100/200 ppm in different kinds of environments or pipeline and alarm with sound and light, to safeguard the organic life.

Features

Adopting high precision sensor for accurate gas leak detection.
Equipped with 3-wire system 4-20mA analog output, relay output, RS485 output (optional).
Compatible with various controlled alarms, PLC, DCS and other control system, and can be remote monitored.
Explosion-proof design, fast, relaible and stable.
Infrared ray controller can remote control the alarm point settings, zero calibration, and address modification.
Two-stage alarm with sound and light, and the alarm point is settable.
With self-calibration function, and three standard keys will be used to realize on-site maintenance.
Can output one or two on-off signals, can drive ventilator, solenoid valve or other external devices.

Specification

Model	GD300-H2S
Detection Principle	Electrochemistry
Gas	Hydrogen Sulfide (H2S)
Range (Optional)	0 to 5ppm, 0 to 20ppm,, 0 to 50ppm, 0 to 100ppm, 0 to 200ppm
Resolution	0.001ppm (0-5ppm), 0.01ppm (0-20/50ppm) or 0.1ppm (0-100/200ppm)

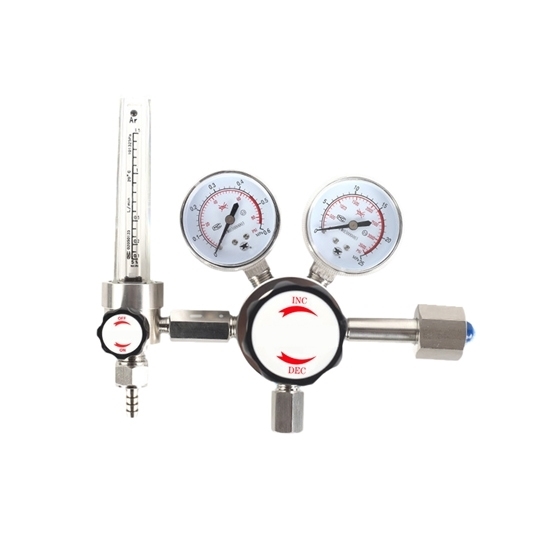

Calibration Kit	Gas pressure regulator (calibration gas cylinder NOT included)
Accuracy	≤±3% F.S.
Response Time	≤10s
Repeatability	≤±1%
Recovery Time	≤10s
Linearity Error	≤±1%
Zero Shift	≤±1% (F.S./year)
Signal Output (Optional)	4-20mA and RS485 Relay output: one group of relay output (1NO+1NC, 24V 100mA) for one alarm (default), or two groups of relay output (2NO+2NC, 24V 100mA) for high/low alarm (optional).
Alarms	Sound, light
Display	High light nixie tube display
Installation	Wall-mounted, piping type, flow-type (according to the detected environment)
Connection	Power connection type: G1/2 male thread explosion-proof flexible pipe Pipe-mounted type: M45*P2.0
Operating Time	24h
Explosion-proof Grade	Ⅱ 2G Ex ia Ⅱ CT4 Ga
Protection Grade	IP65
Certification	CE, ATEX (Standard: EN IEC 60079-0:2018, EN 60079-1:2014)
Working Voltage	12-36V DC
Case Material	Die-casting aluminum housing
Operating Temperature	-20℃~50℃
Operating Humidity	0~95%RH (non-condensing)
Dimension	20617990mm
Weight	≤1.6kg
Accessories	Power adapter: Input 100-240VAC 50/60Hz, Output 24VDC 1A (Optional USA plug, Europe plug or UK plug)

Note: To measure confined spaces such as pipelines, please contact us and inform the detailed conditions of use.

Fixed Gas Detector Dimension (Unit: mm)

***Other Common Gases and Ranges Available for Fixed Gas Detectors

Gas Type	Measure Range	Resolution
Ammonia (NH3)	0-50/100/200/500/1000/2000/5000ppm	0.01ppm/0.1ppm/1ppm
Benzene (C6H6)	0-1/10/50/100/200/1000/2000/5000/10000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Carbon Dioxide (CO2)	0-1000/2000/5000/9999ppm, 0-2/5/10/20/25/30/50/100%VOL	0.1ppm/1ppm/0.001%VOL/0.01%VOL/0.1%VOL
Carbon Monoxide (CO)	0-10/20/50/100/500/1000/2000ppm	0.01ppm/0.1ppm/1ppm
Chlorine (Cl2)	0-5/10/20/50/100ppm	0.001ppm/0.01ppm/0.1ppm
Chlorine Dioxide (ClO2)	0-1/5/10/20/50/100ppm	0.001ppm/0.01ppm/0.1ppm
Combustible Gas (EX)	0-100%LEL	1%LEL
Ethylene (C2H4)	0-10/20/50/100/500/1000/2000ppm	0.01ppm/0.1ppm/1ppm
Formaldehyde (CH2O)	0-10/20/50/100/500/1000ppm	0.01ppm/0.1ppm/1ppm
Hydrocarbons (HC)	0-100%LEL	1%LEL
Hydrogen (H2)	0-10/20/500/1000/2000/5000/9999ppm, 0-2/4% VOL, 0-100% LEL	0.1ppm/1ppm/0.001%VOL/1%LEL
Hydrogen Chloride (HCL)	0-10/20/50/100/200ppm	0.01ppm/0.1ppm
Hydrogen Cyanide (HCN)	0-10/20/50/100ppm	0.01ppm/0.1ppm
Hydrogen Sulfide (H2S)	0-5/20/50/100/200ppm	0.001ppm/0.01ppm/0.1ppm
Methane (CH4)	0-50/100%VOL, 0-100%LEL	0.01%VOL/0.1%VOL/1%LEL
Nitric Oxide (NO)	0-1/5/10/20/50/100/250/500/1000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Nitrogen (N2)	0-99.99/0-100%VOL	0.01%VOL/0.1%VOL
Nitrogen Dioxide (NO2)	0-1/5/10/20/50/100/500/1000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Nitrogen Oxides (NOX)	0-1/5/10/20/50/100/250/500/1000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Oxygen (O2)	0-25/30/100%VOL	0.01%VOL/0.1%VOL
Ozone (O3)	0-1/5/10/20/50/100ppm	0.001ppm/0.01ppm/0.1ppm
Phosphine (PH3)	0-10/20/50/100/500/1000/2000/3000ppm	0.01ppm/0.1ppm/1ppm
Sulfur Dioxide (SO2)	0-1/5/10/20/50/100/500/1000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm
Volatile Organic Compounds (VOC)	0-1/5/10/20/50/100/200/500/1000/2000/5000/10000ppm	0.001ppm/0.01ppm/0.1ppm/1ppm

Note: Some common gases and the measuring ranges are listed in the above table. For more information, please feel free to contact us.

Details

Tips: Installation of Fixed Hydrogen Sulfide (H2S) Detector

Fixed hydrogen sulfide (H2S) detector shall be installed in the areas which are easy to release and gather the hydrogen sulfide gas, such as the drilling site, downhole operation site, gathering station, natural gas evolution field, water treatment station and refinery area.

The mounting site of fixed-type H2S detector should be determined by on-site facilities, processes, and the diffusion and gathering of hydrogen sulfide gas.

The fixed hydrogen sulfide (H2S) detector should be installed below the release source, and it shall be within 2m outside and within 1m inside. Moreover, the detector is better to be installed at 0.5-0.6m away from the gas release source. The installation height shall be 0.3-0.6m higher than the ground or floor. If the detector is installed lower, it’s easy to be affected by the rain drops, which may damage the detector.

If possible, please select the gas detectors with concentration display and acousto-optic alarm. The operators can observe the existence of hydrogen sulfide gas on site without returning to the duty room to see the alarm controller. It is finally better to protect them.
