Electromagnetic Relay, 3PDT, 12/24/110/220V Coils

0 reviews • Write a review

from

$52.99

Ex Tax: $52.99

Stock: In Stock
Model: RDDLZ-EMR-HH53P
Weight: 1.00
SKU: RDDLZ-EMR-HH53P

Available Options

Coil Voltage(V)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

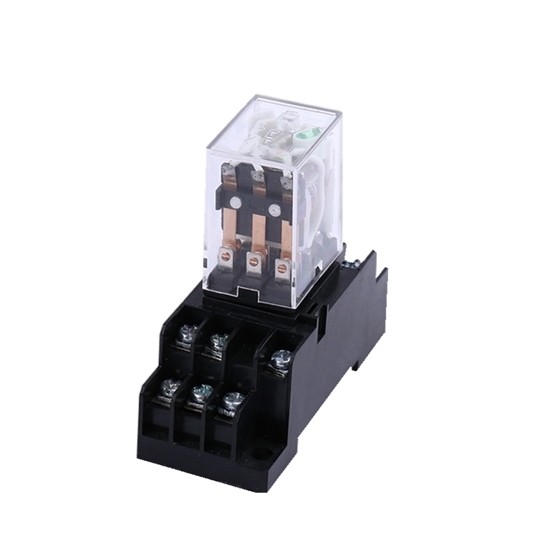

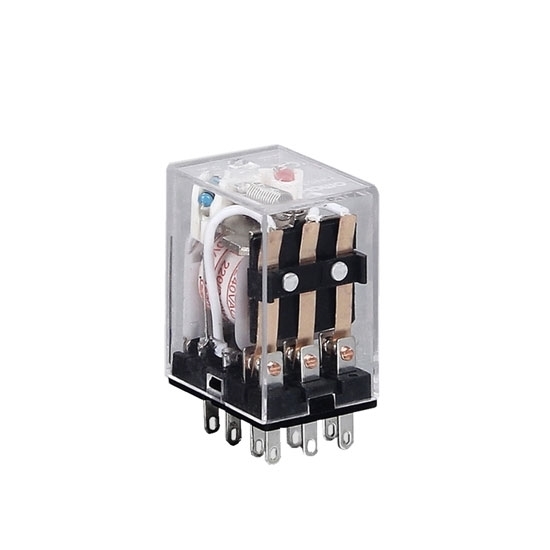

11-pin electromagnetic relay has 3PDT contact form with clear housing, generally used to switch circuit in a wide applications like electronic equipment, communication equipment, automatic equipment and tools etc.

Specification

Basics	Model		RDDLZ-HH53P/MY3NJ (Relay with Socket)
	Dimension (LWH)		27×21×35mm
	Weight		35g
	Ambient Temperature		-25℃~+55℃
	Terminal Type		Plug-in
	Number of Pins		11
Technical Parameters	Contact Form		3PDT
	Contact Material		Silver alloy
	Contact Capacity (Resistive load)		5A/28V DC, 5A/240V AC
	Coil Power		DC≤0.9W, AC≤1.2VA
	Coil Voltage (Optional)		12V DC, 24VDC, 110V AC, 220V AC
	Pick-up Voltage at 23℃		DC≤75%, AC≤80%
	Drop-out Voltage at 23℃		DC≥10%, AC≥30%
	Contact Resistance @6V DC 1A		≤100MΩ
	Dielectric Strength	Between open contact	≥1000V AC 50Hz/1min
		Between adjacent contact	≥1000V AC 50Hz/1min
		Between coil & contact	≥1500VAC 50Hz/1min
	Leakage current		≤1mA
	Insulation Resistance (MΩ)		≥500MΩ at 500V DC
	Service life	Electrical	10⁵Times (Frequency: On 1 Time/1s, Off 1 Time/1s)
		Mechanical	10⁶Times (Frequency: 300 Time/1min)

Note: Here just shows the contact form 3PDT, and another contact forms 3NO and 3NC are still available. What's more, please kindly note that other coil voltages are also available(DC: 6-220V; AC: 6-380V). If you have any requirments, please don't hesitate to contact us.

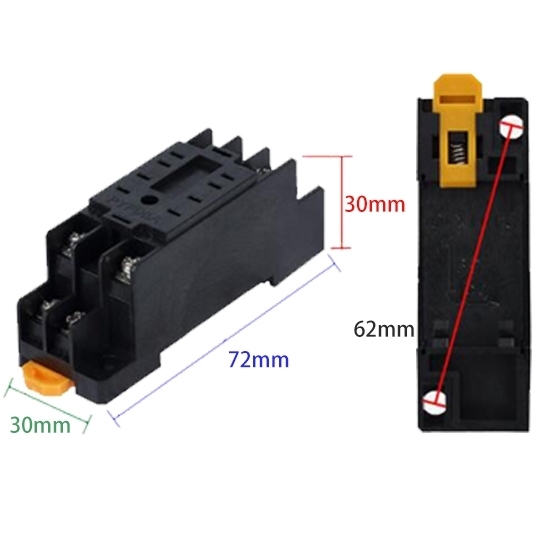

Dimensions & Connection Diagram

Details

Tips: What’s an electromagnetic relay (EMR)?

Electromagnetic relay is an electronic controller fitted with control system (also known as input circuit) and controlled system (also known as output circuit). EMR is often applied to automatic control circuit. As an automatic switch, electromagnetic relay tries to control larger current and higher voltage by smaller current and lower voltage. Therefore, it plays an important role in automatic adjustment, safety protection and circuit conversion.
