Electromagnetic Relay, 11-pin 3PDT, 12V/24V/110V/220V

0 reviews • Write a review

from

$53.77

Ex Tax: $53.77

Stock: In Stock
Model: RDDLZ-EMR-13F3Z
Weight: 1.00
SKU: RDDLZ-EMR-13F3Z

Available Options

Coil Voltage(V)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

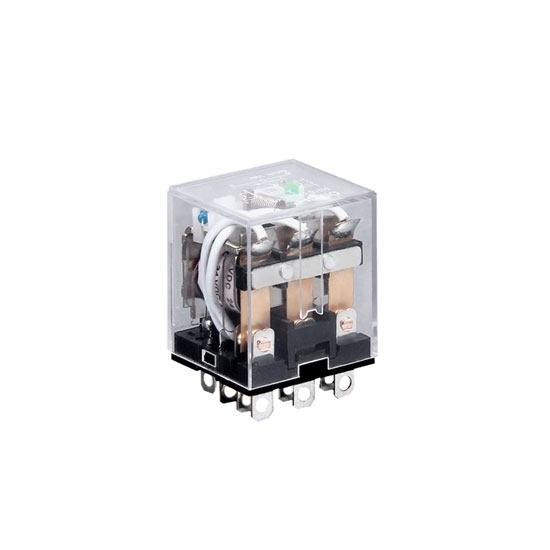

Compact-size electromagnetic relay is used for general purpose with 11 pins, 3PDT contct type, and widely applied in electronic equipment, communication equipment, automatic control system, instrument and meters, etc.

Specification

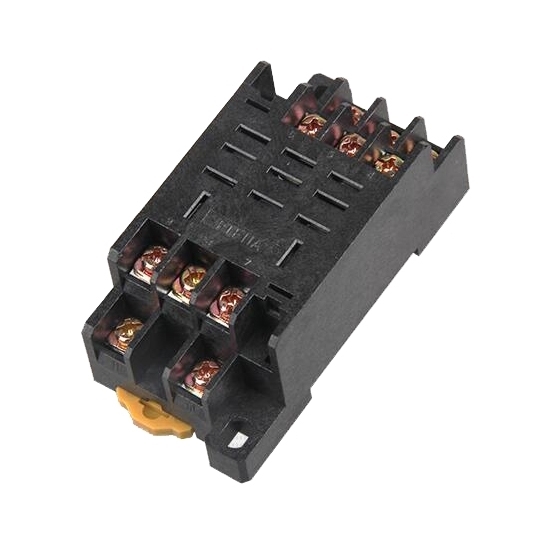

Basics	Model		RDDLZ-JZX-22F(D)/3Z (Relay with Socket)
	Dimension (LWH)		27.5×31×35mm
	Weight		50g
	Ambient Temperature		-25℃~+55℃
	Terminal Type		Plug in
	Number of Pins		11
Technical Parameters	Contact Form		3PDT
	Contact Material		Silver alloy
	Contact Capacity (Resistive load)		10A/240V AC 28V DC
	Coil Power		DC≤0.9W, AC≤1.2VA
	Coil Voltage		Optional: 12V DC, 24V DC, 12V AC, 24V AC, 36V AC, 110V AC, 220V AC
	Pick-up Voltage at 23℃		DC≤75%, AC≤80%
	Drop-out Voltage at 23℃		DC≥10%, AC≥30%
	Contact Resistance @6V DC 1A		≤100MΩ
	Dielectric Strength	Between open contact	≥1200V AC 50Hz/1min
		Between adjacent contact	≥1500V AC 50Hz/1min
		Between coil & contact	≥1500VAC 50Hz/1min
	Leakage current		≤1mA
	Insulation Resistance (MΩ)		≥500MΩ at 500V DC
	Service life	Electrical	10⁵Times (Frequency: On 1 Time/1s, Off 1 Time/1s)
		Mechanical	10⁶ Times (Frequency: 300 Time/1min)

Note: Here just shows the contact form 3PDT, and another contact forms 3NO and 3NC are still available. What's more, please kindly note that other coil voltages are also available(DC: 6-220V; AC: 6-380V). If you have any requirments, please don't hesitate to contact us.

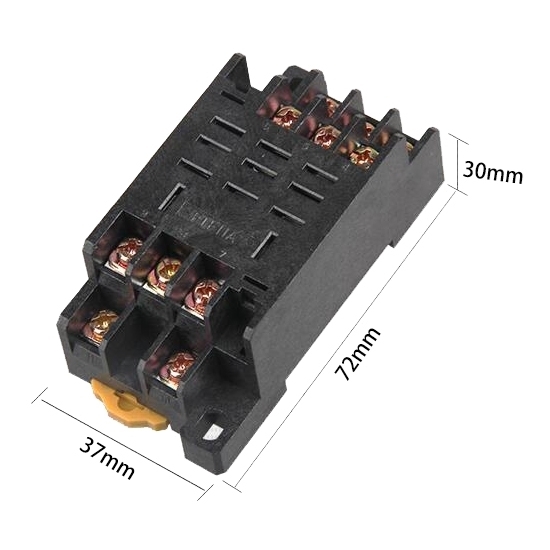

Dimensions & Connection Diagram
Details

Tips: How to select a relay?

Working environment
Working environment mainly refers to temperature (maximum and minimum temperature), humidity (maximum relative humidity in -40℃), low pressure (it is unnecessary for places with an elevation of lower than 1,000 meters to consider the factor), oscillation and impact. In addition, service environment involves requirements for packaging mode, installation mode, shape, dimensions, and insulation performance etc.
Input signals
Select electromagnetic, temperature, time or photoelectric relays by judging whether input signals are electricity, temperature, time or photo signals.
Input parameters
Input parameters refer to working voltage (or current) of the coil. Pull-in voltage (or current) refers to the parameter used by relay producers to control sensitivity of relays.
Load conditions
Configurations and groups of contacts shall be determined according to actual conditions of controlled circuit. It is very important to determine parameters according to load capacity and load nature (resistive, inductive, capacitive, light load and motor load).
