Electromagnetic Relay, 11-pin 3PDT, 12V/24V/110V/220V Coil

0 reviews • Write a review

from

$53.69

Ex Tax: $53.69

Stock: In Stock
Model: RDDLZ-EMR-MK3P1
Weight: 1.00
SKU: RDDLZ-EMR-MK3P1

Available Options

Short Description

Coil Voltage(V)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

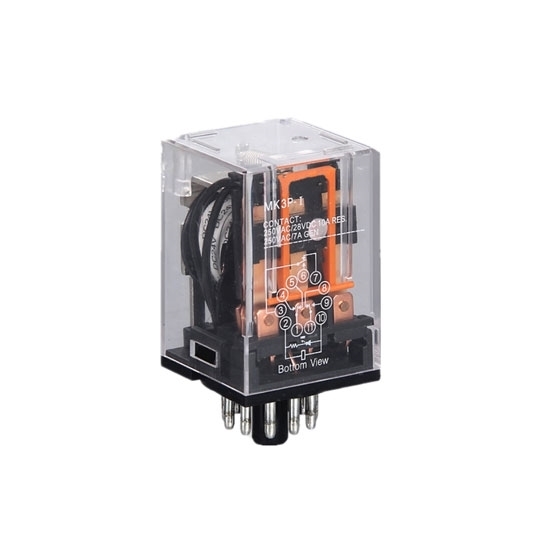

11-pin electromagnetic relay is designed for 3PDT contact form with silver alloy contacts. Low price and high quality, it can be widely applied in remote control, electronic equipment, communication equipment, automatic control system and tools and so on.

Specification

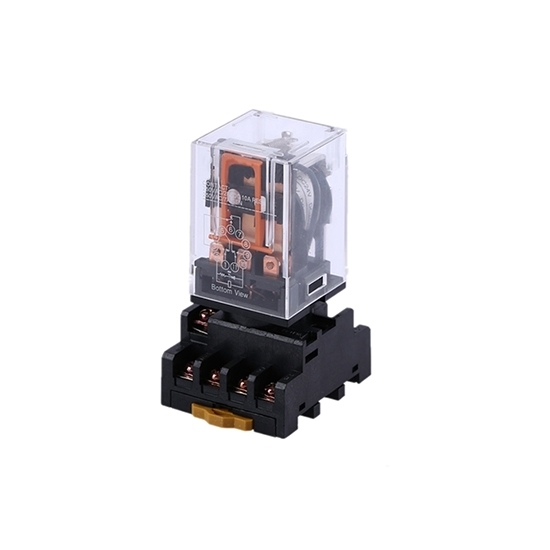

Basics	Model		RDDLZ-MK3P-1 (Relay with Socket)
	Dimension (LWH)		35×35×53mm
	Weight		80g
	Ambient Temperature		-25℃~+55℃
	Terminal Type		Plug in
	Number of Pins		11
Technical Parameters	Contact Form		3PDT
	Contact Material		Silver alloy
	Contact Capacity(Resistive load)		10A/250V AC 28V DC
	Coil Power		DC≤2W, AC≤3.5VA
	Coil Voltage		Optional: 12V DC, 24V DC, 12V AC, 24V AC, 36V AC, 110V AC, 220V AC
	Pick-up Voltage at 23℃		DC≤75%, AC≤80%
	Drop-out Voltage at 23℃		DC≥10%, AC≥30%
	Contact Resistance @6V DC 1A		≤100MΩ
	Dielectric Strength	Between open contact	≥1200V AC 50Hz/1min
		Between adjacent contact	≥1500V AC 50Hz/1min
		Between coil & contact	≥1500VAC 50Hz/1min
	Leakage current		≤1mA
	Insulation Resistance (MΩ)		≥500MΩ at 500V DC
	Service life	Electrical	10⁵Times (Frequency: On 1 Time/1s, Off 1 Time/1s)
		Mechanical	10⁶Times (Frequency: 300 Time/1min)

Note: Here just shows the contact form 3PDT, and another contact forms 3NO and 3NC are still available. What's more, please kindly note that other coil voltages are also available(DC: 6-220V; AC: 6-380V). If you have any requirments, please don't hesitate to contact us.

Dimensions & Connection Diagram
Relay Socket Size
Details

Tips: Main functions of a relay
A relay is an automatic switch with isolation function. It is widely applied to remote control, remote measuring, communication, automatic control, mechatronics, and electric or electronic devices as an important control component.
The relay has the following functions as a control component:

Expansion of control range: for example, when multi-contact relay control certain number of signals, it could change over contacts, and close or open several circuits according to types of contact groups.
Amplification: for example, sensitive relay and intermediate relay use a tiny controlled quantity to control circuits of larger power.
Integration of signals: for example, when several control signals are input to multi-wound relay in specified form, they will realize expected control effect after being compared and integrated.
Automation, remote control, and monitoring: for example, relays on automatic devices could form up programmed control circuit with other devices to realize automatic operation.

The Difference Between Solid State Relays and Electromagnetic Relays

SSR and EMR are both commonly used electrical control components. Their main difference is that solid state relays are usually based on semiconductor technology and have no mechanical contacts, while electromagnetic relays rely on electromagnetic effects to control the opening and closing of switches. Taken together, SSR have advantages in response speed, durability, and anti-interference capabilities, and are particularly suitable for application scenarios that require fast response and high precision. The EMR performs better in terms of cost and heat dissipation requirements, and is suitable for cost-sensitive applications with low heat dissipation requirements.
