AC Servo Drive For 400W-1000W Servo Motor

0 reviews • Write a review

from

$376.45

Ex Tax: $376.45

Stock: In Stock
Model: RDDLZ-AS151000
Weight: 1.00
SKU: RDDLZ-AS151000

Available Options

Short Description

Input Signal

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

AC Servo Drive for 400W-1000W Servo Motor can perform quick positioning operations over a short distance without the need for tuning, while providing smooth performance. It is widely used in CNC machining equipment, food processing machine, material conveying equipment, medical apparatus and instruments, textile machinery applications and so on.

Servo Drive Specification

Model		RDDLZ-SG-AS151000 (Click it to see more specifications)
Matching Servo Motor Model		RDDLZ-SERVO-80S500 (500W servo motor) RDDLZ-SERVO-60S600 (600W servo motor) RDDLZ-SERVO-80S750 (750W servo motor) RDDLZ-SERVO-110S800 (800W servo motor)
Output Power		400W-1000W
Voltage		Three phase 220V AC
Input Signal Type*		Pulse + analog (±10V) signal or pulse signal (Optional)
Current		15A
Control Mode		Position control, Speed control, JOG operation
Encoder Feedback		2500 lines incremental encoder
		17/23 bit absolute encoder
Structure		Base-mounted type
Weight		1.5 Kg
Application		for 400W-1000W AC servo motor
Operate Temperature		0℃~+50℃
Humidity		<90% (no frost)

Note: Our AC Servo Drive will come with a RS485 control software, so you can only monitor the motor parameters through 485 communication, but you cannot use it to control the motor.

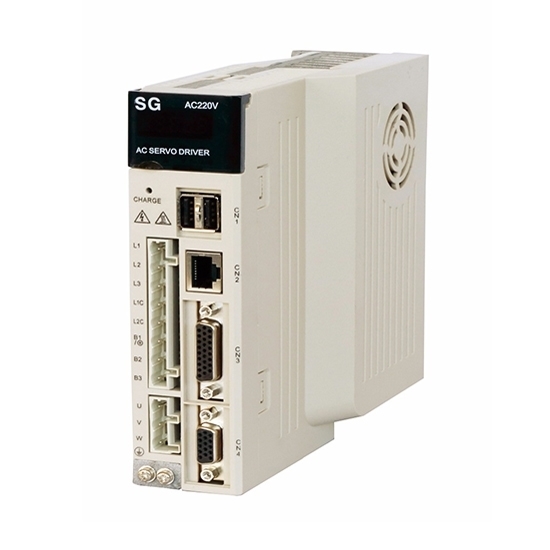

Servo Drive Terminal Details

NO.	Name	Description
1	Front Cover	--
2	Nameplate	Indicates the SERVOPACK model and rating.
3	Input Voltage	--
4	Charge	Lights up when the main circuit power is turned on. Note: Even if you turn OFF the main circuit power supply,this indicator will be lighting as long as the internal capacitor remains charged. Do not touch the main circuit or motor terminals while this indicator is lighting. Doing so may result in electric shocks.
5	Main Circuit Terminals	The terminals depend on the main circuit power supply input specifications of the SERVOPACK.
6	Servo Motor Terminals (U,V,W)	The connection terminals for the servo motor main circuit cable (power line).
7	Ground Terminal	The ground terminals to prevent electric shock. Always connect this terminal.
8	485 Communication Connector (CN1,CN2)	--
9	I/O Signal Connector (CN3)	Connect to reference input signals and sequence I/O signals.
10	Encoder Connector (CN4)	Rotary servo motor: Connect to the encoder in the servo motor. Linear servo motor: Connect to a serial converter unit or linear encoder.
11	Panel Display	Used to display SERVOPACK status, alarm numbers, and parameters.
12	Panel Operation keys	Used to set parameters.
13	Panel Operator	--

Servo Drive Dimension

Tips:
Some notes about servo drives using:

Servo drive should be fixed in the control panel. A cooling fan should be added when the ambient temperature is high enough.
A servo drive which has been put into use is forbidden to do withstand voltage test.
Before the machine running, a right driver should be selected to match the motor.
The binding posts of driver's U, V, W should be in one-to-one correspondence with the motor terminals U, V and W. Completely different from asynchronous motors, it is prohibited to reverse the motor by replacing the three-phase terminal.
The power through servo motor is high frequency current. For this reason, the leakage current of a servo motor is relatively large. The motor's ground terminal should be connected with the servo driver's PE connector, and grounded well.
