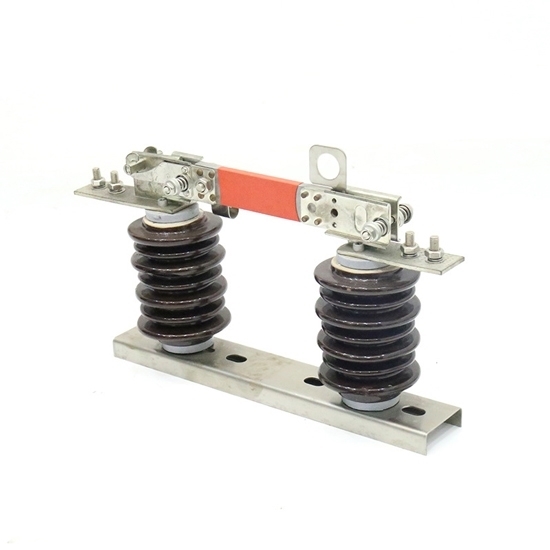

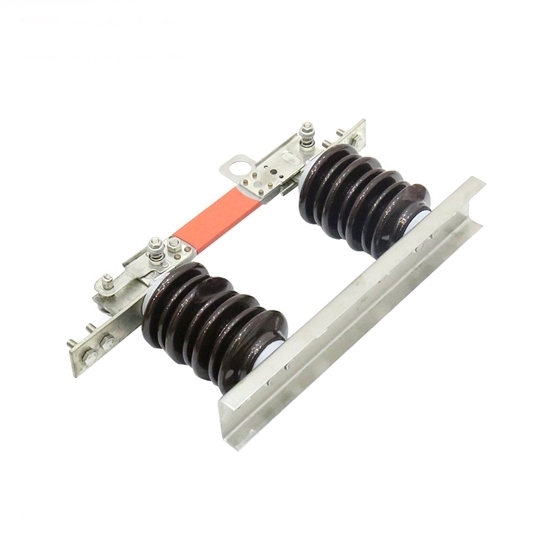

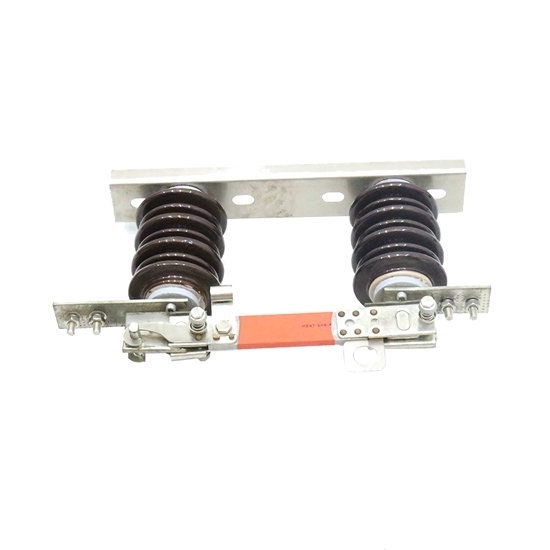

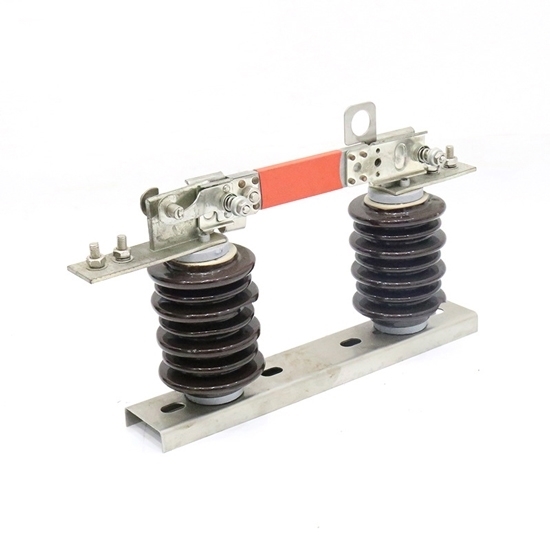

12kV High Voltage Isolator Switch, 400A~1250A

0 reviews • Write a review

from

$587.69

Ex Tax: $587.69

Stock: In Stock
Model: RDDLZ-HVIS-GW9-12
Weight: 1.00
SKU: RDDLZ-HVIS-GW9-12

Available Options

Current

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Outdoor single-pole isolator switch is suitable for 12kV high-voltage transmission and distribution lines to cut off and close single-phase or three-phase circuits with no load and voltage. 400A/600A/1000A/1250A high current for selection.

Specifications

Model: RDDLZ-(H)GW9-12(W)
Rated Voltage: 12kV
Rated Current: 400A/600A/1000A/1250A
Limiting Current Peak Value: 21kA
Limiting Current Effective Value: 15kA
10s Thermal Stability Current: 10kA
Contact Pressure: 32-36kgf

Dimension (Unit: mm)

Applications

Tips: What is high voltage isolator switch?

A high-voltage isolator switch is a device used to disconnect electrical circuits or equipment from a power source at high voltages. It ensures safety by isolating electrical circuits during maintenance or emergencies, preventing accidental contact with live wires. These switches are designed to handle high electrical loads and are built to provide reliable and secure operation under high voltage conditions.
