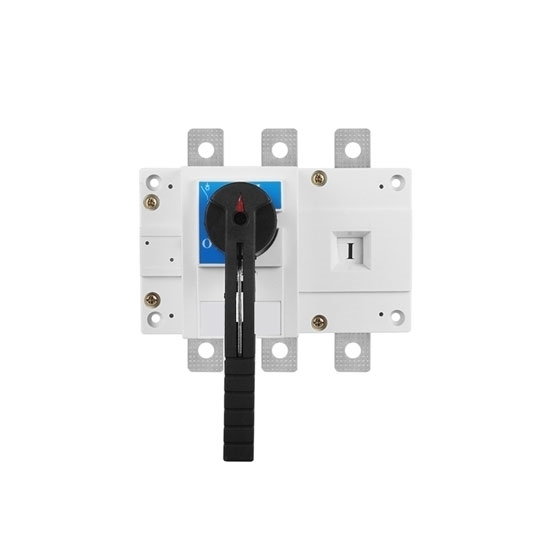

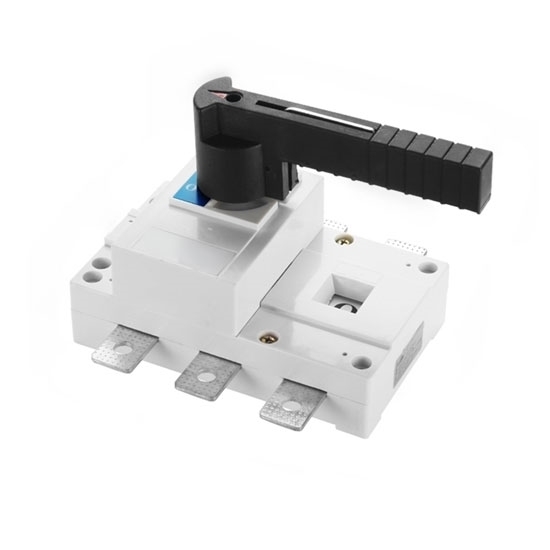

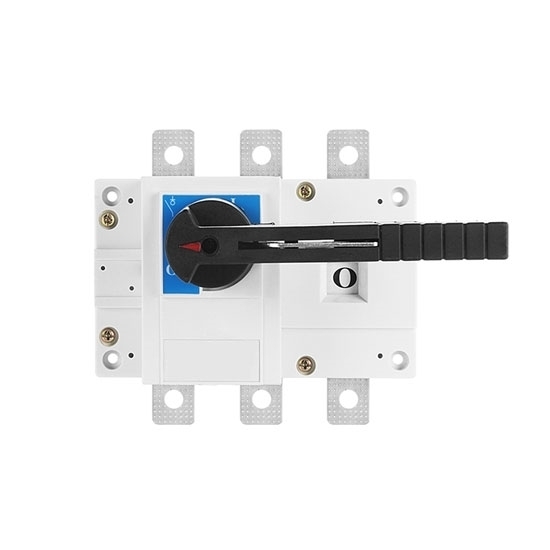

100 Amps Isolator Switch, 3 Pole/ 4 Pole

0 reviews • Write a review

from

$157.59

Ex Tax: $157.59

Stock: In Stock
Model: RDDLZ-IS-HGL100A
Weight: 1.00
SKU: RDDLZ-IS-HGL100A

Available Options

Number of Poles

Load Operation

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

100 Amps disconnect switch at a low price, 3 pole or 4 pole for selection, light weight, good performance and high security, the more you buy, the more you save.

Isolator Switch Specification

Basics	Model			RDDLZHGL-100A
	Pole			3 Pole/4 Pole
	Weight		3 Pole	0.40 kg
			4 Pole	0.42 kg
Technical Parameters	Rated current			100A
	Rated insulation voltage Ui			690V
	Dielectric strength			1890V
	Rated surge-resistant voltage Uimp kV (installed category IV)			8
	Rated working current le	380V	AC-21	125A
			AC-22	125A
			AC-23	125A
		660V	AC-21	125A
			AC-22	125A
			DC-23	80A
		220V	DC-21	125A
			DC-22	125A
			DC-23	125A
		440V	DC-21	100A
			DC-22	100A
			DC-23	100A
	Motor power P (380V) kW		380V	63 Kw
			660V	75 kW
	Rated short-time withstand current lcw (kA rms)0.1s/ 1.0s			2
	Rated breaking capacity Icm (Arms) AC23 380VA			1000
	Rated making capacity Icm (Arms) AC23 380V			1250
	Rated short-current making capacity Icm' (Kapeak value)			75
	Mechanical durability (number of cyclic operation)			10000
	Electric durability Ue=660V, Rated current		COSφ=0.95AC21	1700
			COSφ=0.65AC22	100
			COSφ=0.35AC23	500
Working Environment	Moment of operation			1.2 Nm
	Temperature			-5℃~+55℃
	Way of working			Continuously working
	Operating			Handle
	Installation form			Vertical
	Altitude			≤2000m
	Pollution level			3
	Overvoltage level			Ⅲ
	IP level			IP 20

Dimension

Operation Mode

Details

Tips: Isolator Switch Applications:

1. Isolator switch is used to isolate the power supply and disconnect the high-voltage maintenance equipment from the live equipment so that there is an obvious disconnection point between them.
2. Switch off switches and circuit breakers according to the needs of the system operation mode to change the system operation wiring mode.
3. Used to connect or disconnect small current circuits.
