200 MHz Digital Oscilloscope, 2/4 Channels, 4 GSa/s

0 reviews • Write a review

from

$2,985.23

Ex Tax: $2,985.23

Stock: In Stock
Model: RDDLZ-SCOPE-200M4
Weight: 1.00
SKU: RDDLZ-SCOPE-200M4

Available Options

Model

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

200 MHz Digital Oscilloscope Features

200 MHz bandwidth
With 2 or 4 analog channels, 16 digital channels for MSO models
Up to 4 GSa/s real-time sample rate, provides fine resolution and detail in high speed signals
140 Mpts standard memory depth
Waveform capture rate up to 110,000 waveforms per second
Real-time waveform record, playback and analysis up to 200,000 frames
9 inch WVGA (800×480), 256 level intensity grading display

This best Rigol digital oscilloscope can be controlled and monitored remotely from a PC, via its USB, LAN or optional GPIB interfaces, is ideal for a wide variety of engineers working in communications, defense, aerospace and industrial electronics.

Models and Key Specifications

Brand Name	RIGOL
Model	DS4022	DS4024
	MSO4022	MSO4024
Number of Analog Channels	2	4
Number of Digital Channels (For MSO Series)	16
Bandwidth	200 MHz
Max. Real-time Sample Rate	Analog channel up to 4 GSa/s Digital channel up to 1 GSa/s (MSO Series)
Max. Memory Depth	Analog channel up to 140 Mpts Digital channel up to 28 Mpts (MSO Series)
Max. Waveform Capture Rate	up to 110,000 wfms/s
Real-time, Hardware Waveform Recording, Playback, and Analysis Functions	Analog channel up to 200,000 frames Digital channel up to 64,000 frames (MSO Series)
Multi-level Intensity Grading Display	up to 256 levels
Standard probes	2 or 4 sets RP3500A 500 MHz BW Passive Probe 1 sets RPL2316 LA Probe (MSO series only)
Dimension	Width x Height x Depth = 440 mm x 218 mm x 130 mm
Weight	7 Kg (Package Included)
Packing Included	1 x Digital Oscilloscope; 2 (4) x Probes; 1 x USB Cable; 1 x Power Cord; 1 x Quick Guide

Rigol DS/MSO4000 Series Digital Oscilloscope Specs PDF

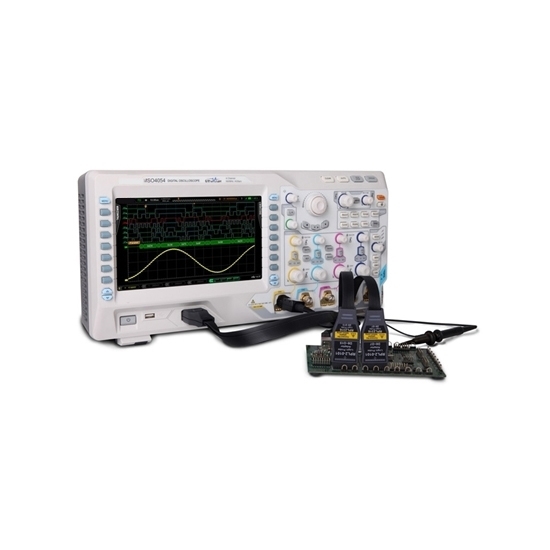

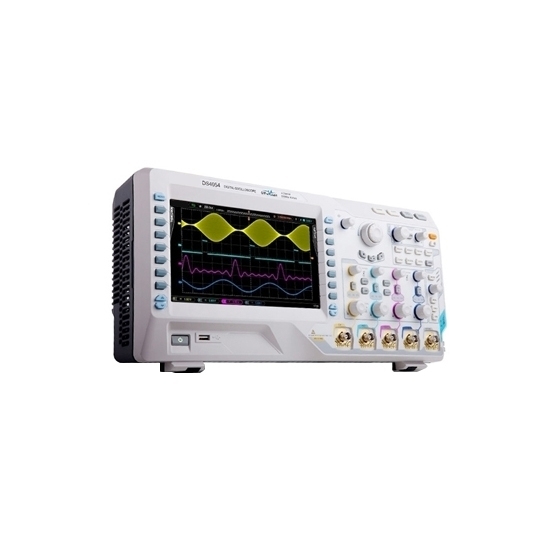

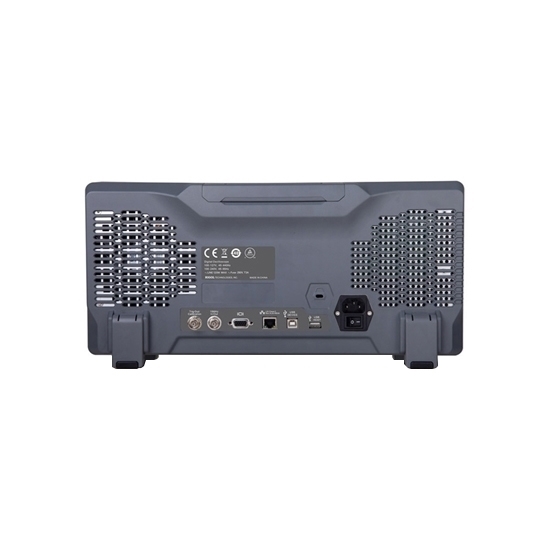

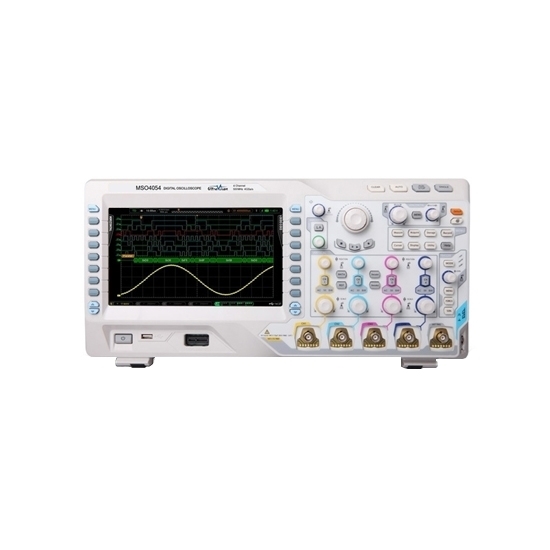

Digital Oscilloscope Detail
Tips: The advantages of a RDDLZ digital oscilloscope

Small size, light weight, easy to carry, and liquid crystal display.
The waveform can be stored for a long time, and the stored waveform can be enlarged for various operations and analysis.
It is particularly suitable for measuring single and low frequency signals, and there is no analog oscilloscope flicker when measuring low frequency signals.
More trigger mode, besides the pre-trigger that the analog oscilloscope does not have, there are also logic triggering, pulse width trigger, etc.
It can be connected with computer, printer and plotter through GPIB, RS232 and USB interface, and can print, archive and analyze documents.
Powerful waveform processing power, can automatically measure frequency, rise time, pulse width and other parameters.
