Pneumatic Solenoid Valve, 2 Position 5 Way, 12V/24V

0 reviews • Write a review

from

$69.84

Ex Tax: $69.84

Stock: In Stock
Model: RDDLZ-VALVE-AK3120
Weight: 1.00
SKU: RDDLZ-VALVE-AK3120

Available Options

Short Description

Voltage

Control Method

Wiring Method

Number of Solenoid Valves

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This solenoid valve cannot be used for drinking water.

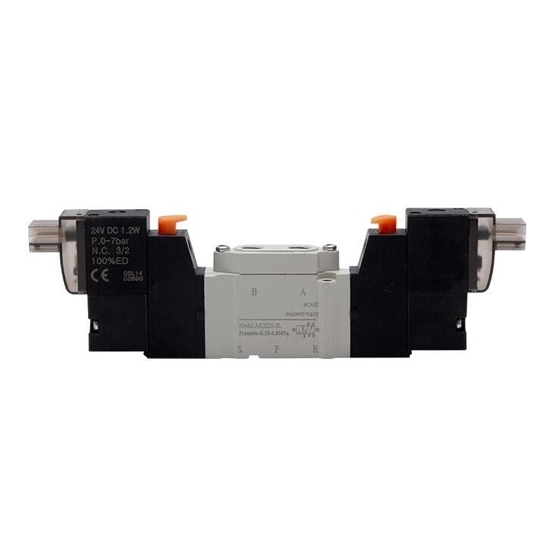

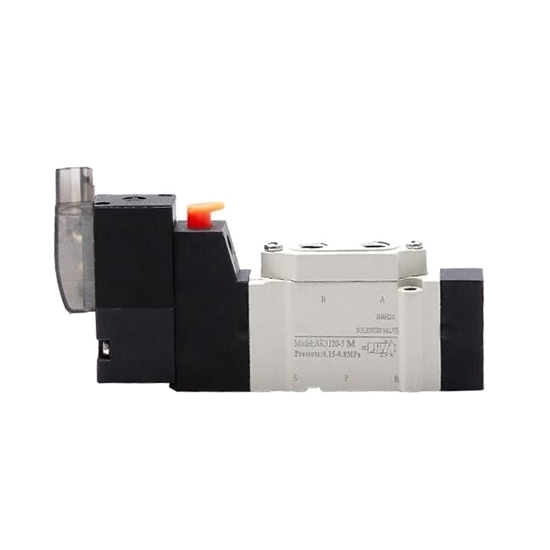

The provided 2 position 5 way pneumatic single/dual solenoid valve is a high speed solenoid valve with 12ms fast response, 15Hz switching frequency, 12/24V DC rated voltage, direct lead or vertical socket, supports 4 groups of solenoid valves, suitable for multiple high-speed industries.

Specifications

Model: RDDLZ-AK3120/RDDLZ-AK3220
Control Method: Single Solenoid/Dual Solenoid
Pipe Diameter: M5
Used Fluid: Compressed Air
Number Of Positions: 2 Position 5 Way
Using Pressure Range: 0.15Mpa-0.7Mpa
Maximum Pressure Resistance: 0.8Mpa
CV Value: 0.16
Response Time: within 12ms
Ambient Temperature: -5~60℃ (Non-Freezing)
Maximum Operating Frequency: 15Hz
Lubrication: Not Required
Rated Voltage: 12V/24V DC
Interface: M5, Direct Lead (Default) or Socket Type
Cable Length: 0.3m (Can be Customized)
Voltage Fluctuation Range: ±10%
Protection Level: Dustproof

Pneumatic Single Solenoid Valve Dimension (Unit: mm)

Pneumatic Dual Solenoid Valve Dimension (Unit: mm)

Tips: What is a 5 way pneumatic solenoid valve?

5-way pneumatic solenoid valve is a type of valve used to control the flow of air or gas in pneumatic systems. It has five ports and two positions, allowing it to direct airflow to different pathways within the system. Typically, these valves are used to control double-acting cylinders or actuators, where one port supplies air to extend the cylinder and another to retract it. The solenoid component of the valve is an electromagnet that, when energized, shifts the valve spool or poppet to change the flow path. This type of valve is essential in automation and machinery, providing precise control over the movement of pneumatic devices.
