5 KVA 50 KV AC DC Hipot Tester

0 reviews • Write a review

from

$4,207.69

Ex Tax: $4,207.69

Stock: In Stock
Model: RDDLZ-HTGTB-550
Weight: 1.00
SKU: RDDLZ-HTGTB-550

Available Options

Input Voltage

Control Box

DC Meter

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

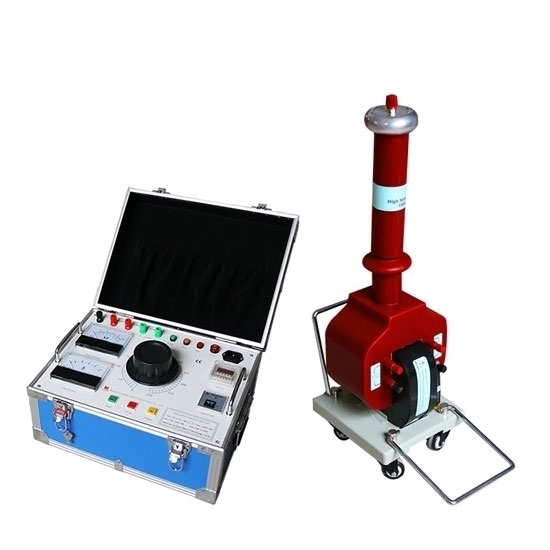

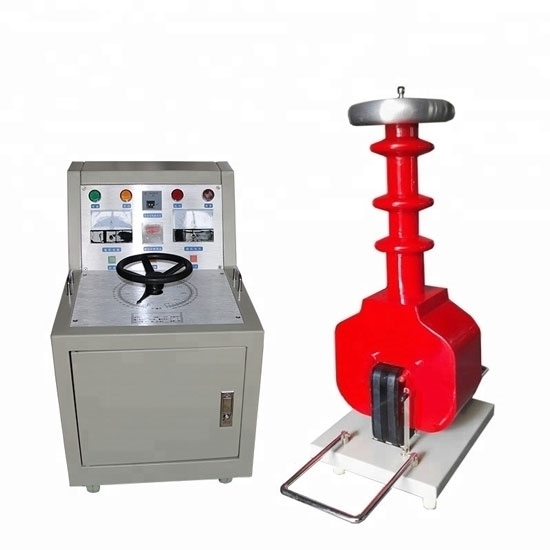

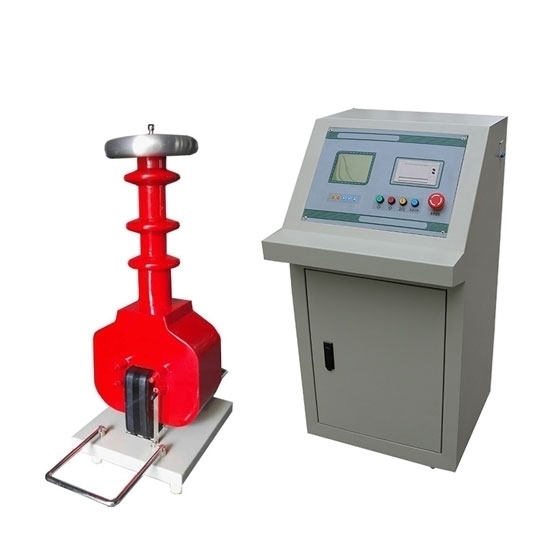

Portable AC hipot tester 50 kV, 5 kVA, 50 Hz, dry type testing transformer, it can be used in high-voltage cable testing procedures, low price and high quality.

Note: AC leakage current meter is not provided.

Specifications

Model	RDDLZ-HTGTB-550
Capacity	5 kVA
Input Voltage	110V/ 120V/ 220V
Frequency	50Hz/ 60Hz
Output Voltage	50 kV
Current	100 mA
DC Output	70 kV
Phase	1 Phase
Weight (Transformer+Control Box)	87 kg
Cooling Method	Dry
Effeciency	90%
Impedance Voltage	<12%
Surface Temperature Raising	< 55°C
No Load Current	< 4%
Output Voltage Waveform	Sine Wave
Usage	AC DC Hipot Tester
Warranty	12 Months
Temperature environment	0~40°C
Altitude	<2000m
Relative Humidity	<85%

Packing List

NO.	Description	Quantity
1	Hipot Test Set (1 Control Box + 5 kVA Dry Transformer)	1
2	Power Supply Cable	1
3	Earth Cable	1
4	Connecting Line	1
5	Fuse	3
6	Rectifying Diode	1
7	User Manual	1

Wiring Diagram

Tips: How Does High Voltage Hipot Tester Work?

Applying a voltage higher than normal operation to the insulator of the device under test for a specified period of time, the voltage applied to it will only produce a small leakage current, and the insulation is better. Three modules of program-controlled power module, signal acquisition and conditioning module and computer control system form a test system.
