3 KVA 50 KV AC DC Hipot Tester

0 reviews • Write a review

from

$3,615.79

Ex Tax: $3,615.79

Stock: In Stock
Model: RDDLZ-HTGTB-350
Weight: 1.00
SKU: RDDLZ-HTGTB-350

Available Options

Short Description

Input Voltage (V)

DC Meter

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

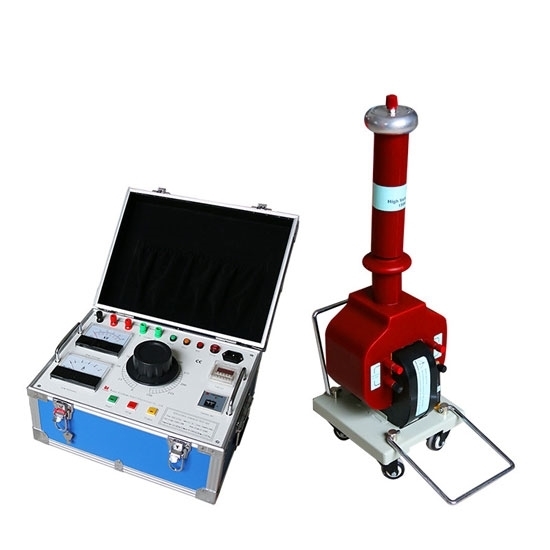

3 kVA hipot tester with a digital display control box, single phase, output 50 kV, dry type testing transformer, it is very convenient, flexible and high efficiency, factory direct sales.

Note: AC leakage current meter is not provided.

Specifications

Model	RDDLZ-HTGTB-350
Capacity	3 kVA
Input Voltage	110V/ 120V/ 220V
Frequency	50Hz/ 60Hz
Output Voltage	50 kV
Current	60 mA
DC Output	70 kV
Phase	1 Phase
Weight (Transformer + Control Box)	68 kg
Cooling Method	Dry
Effeciency	90%
Impedance Voltage	<12%
Surface Temperature Raising	< 55°C
No Load Current	< 4%
Output Voltage Waveform	Sine Wave
Usage	AC DC Hipot Tester
Warranty	12 Months
Temperature Environment	0~40°C
Altitude	<2000m
Relative Humidity	<85%

Packing List

NO.	Description	Quantity
1	Hipot Test Set (1 Control Box + 3 kVA Dry Transformer)	1
2	Power Supply Cable	1
3	Earth Cable	1
4	Connecting Line	1
5	Fuse	3
6	Rectifying Diode	1
7	User Manual	1

Wiring Diagram

Tips: What is AC Hipot test?

AC hipot test is the most effective and direct method to identify the insulation strength of power equipment, and it is an important part of preventive test. In addition, since the AC hipot test voltage is generally higher than the operating voltage, the equipment has a large safety margin after the test, so the AC withstand voltage test is an important means to ensure the safe operation of power equipment.
