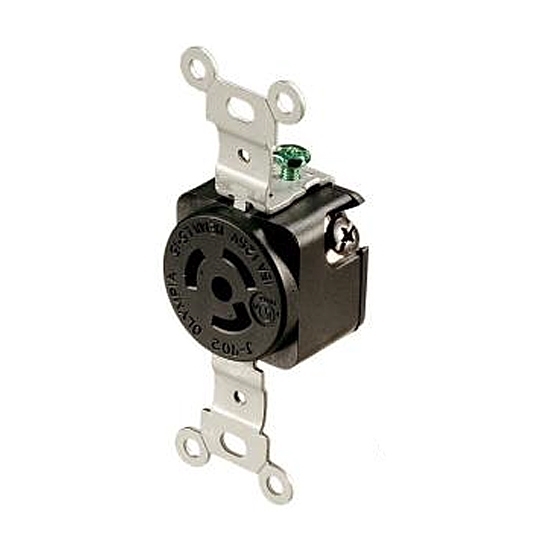

15A 125V Locking Receptacle, 2 Pole, 3 Wire

0 reviews • Write a review

from

$54.21

Ex Tax: $54.21

Stock: In Stock
Model: RDDLZ-BL5-15R
Weight: 1.00
SKU: RDDLZ-BL5-15R

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

15 amp 125 volt twist lock receptacle utilize a twisting method with a plug to establish a connection, helping you avoid the danger of loose plugs.

Specification

Model: RDDLZ-BL5-15R
Certification: UL
Grounding: Standard Grounding
Rated Voltage: 125 Volt
Rated Current: 15 Amp
Application: Commercial
Flammability: Rated V-2 per UL94
Back Cover: Thermoplastic
Color: Black
Pole: 2
Wire: 3
Body Material: Super Tough Nylon
Assembly Screws: Steel, Zinc Plated
Terminal Screws: Brass
Standard and Certification: UL498

Tips: How does a locking receptacle work?

Typically, the male connector on a twist lock receptacle has a bent pin that can be inserted into the socket and twisted to lock it into place. To minimize the possibility of accidental disconnection, the plug must be pulled out by turning it in the opposite direction. Unless this procedure is followed, the plug of the electrical device or machine will remain in the socket and the current will continue to flow. Even if a twist lock receptacle is installed, the wrong cord can still trip, which can be dangerous if the cord is stretched or worn to expose the cord to live currents. In cases where the wires are just getting in the way of employees or passers-by, outlets should be reconfigured within the layout or at least securely anchored to the ground to minimize any potential safety hazards.
