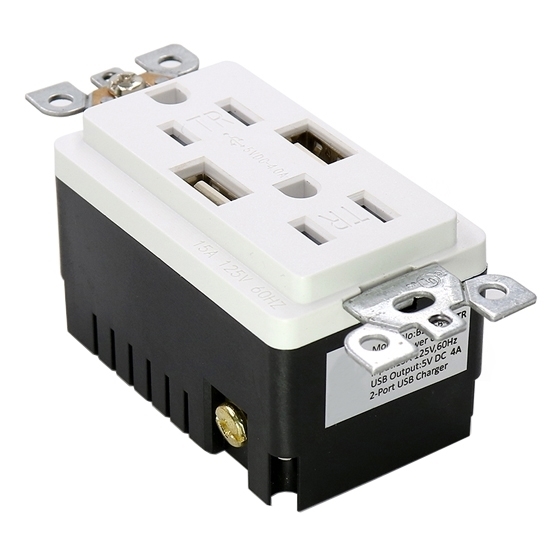

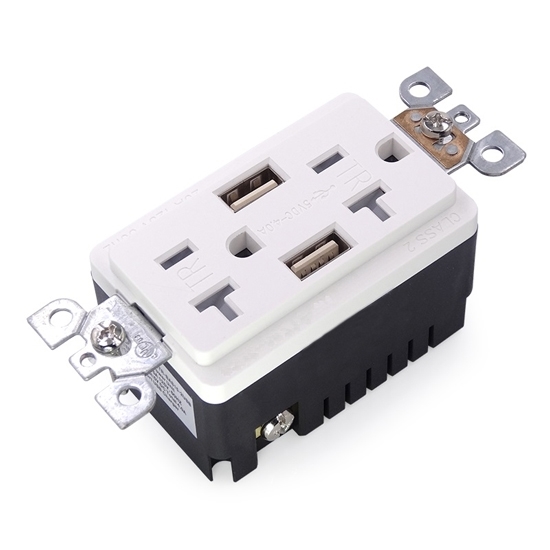

Low price dual USB wall outlet is built to meet every need in commercial, industrial, household, institutional settings. This USB socket has safe lock function, the reset button will not engage if protection has been compromised.

Feature

• Good heat dissipation.
• Design of bottom grid, good cooling.
• Super high impact resistance and thermal stability.
• Cover pans are made of high quality polycarbonate.
• Chemical corrosion resistance.
• Fingerprint-resistant zinc plated mounting brackets.

Specification

• Model: RDDLZ-B2USB-15
• Rated Working Current: 15 amp
• Rated Working Voltage: 125V
• Power Frequency: 60Hz
• USB Voltage and Current: 5VDC 4A/ 2.1A
• Wire Specifications: #14-@10AWG
• USB Compatible Products: USB1.0/2.0/3.0, Includes Apple Products
• Electric Strength: Pressure Resistance 1500V 50Hz
• Duration: 1 Min
• Working Temperature: -20℃ ~ 60℃
• Insulation Resistance: ＞50MΩ (DC500V)
• Short-Circuit Current: 10kA
• Meet the Standard: UL498CSA-C22.2 NO.42, Housing Material Flame Retardant Grades UL94-V2

Dimensions

Tips: How to install the dual USB wall outlet?

First, deal with the power cord, leave the wires in the box to the maintenance length, and then cut out the wire core, taking care not to damage the wire core. Then, wrap the wire around the corresponding terminal of the socket in a clockwise direction, and tighten the pressure head, so that the wire core must not be exposed. Connect the live wire to one of the 2 holes of the switch marked A, and then connect the insulated wire from the other hole to the L hole of the socket below. The neutral line is directly connected to the N hole in the socket. The ground wire is directly connected to the E hole in the socket. If the neutral wire and the ground wire are wrongly connected, there will be tripping and other phenomena during the use of the electrical appliance.
