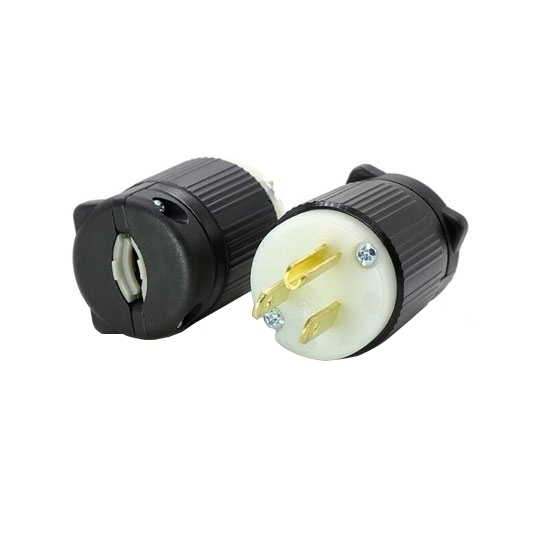

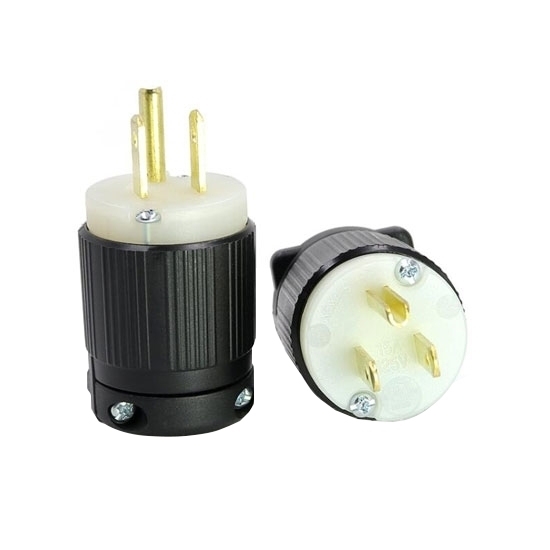

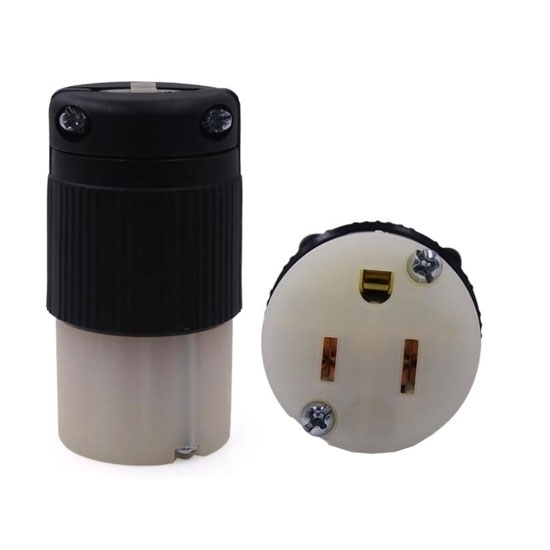

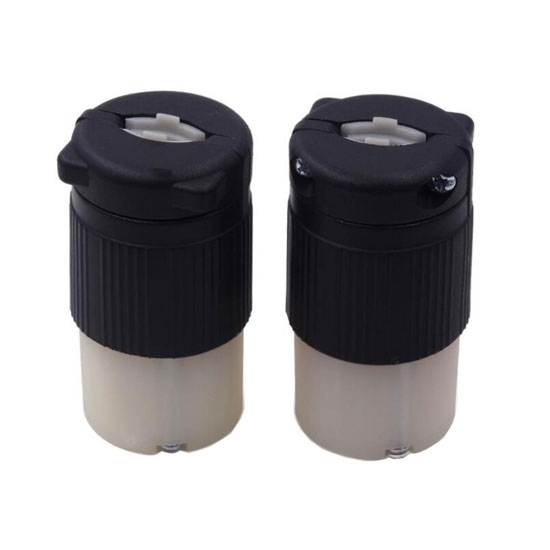

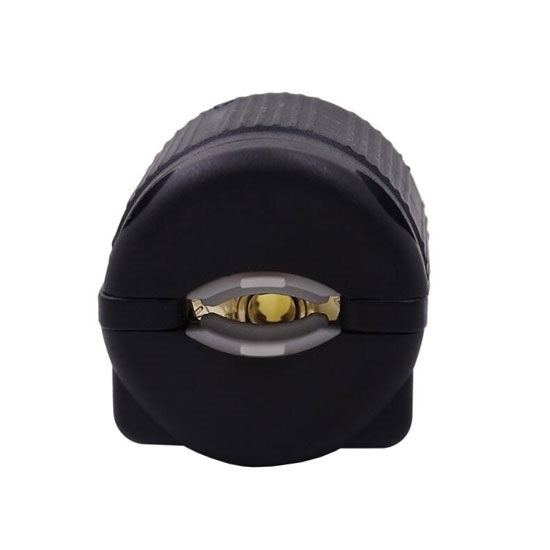

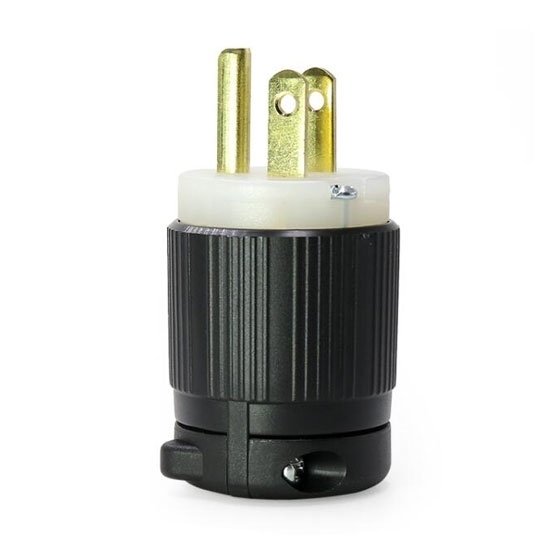

15A 125V Locking Plug, 2 Pole, 3 Wire

0 reviews • Write a review

from

$29.99

Ex Tax: $29.99

Stock: In Stock
Model: RDDLZ-LP5-15
Weight: 1.00
SKU: RDDLZ-LP5-15

Available Options

Plug

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Twist locking plug is suitable for medical devices, electronics, lighting, machinery, grills, generators and lifts, etc. It comes with nylon material, high quality and durable, fall resistant and explosion-proof. Plug matching socket has the function of clamping the power cord to prevent the phenomenon of slack power failure in the work.

Specification

Model	RDDLZ-LP5-15
Plug Type	NEMA 5-15 Plug
Materials	Nylon and full copper
Certifications	UL/ CSA/ CUL
Rated Voltage	125V
Rated Current	15 Amp
Wiring & Connecting	2 Pole 3 Wire
Terminal Clamp Material	0.08" (2) steel-nickel plated
Terminal Screw Material	10-32 Brass white finish on neutral screw when use
Ground Screw Material	10-32 Brass (green finish), multi-device
Dielectric Voltage Withstand	18000V minimum
Current Interrupting	Certified for current interrupt at full rate current
Temperature Resistant	Max 30℃ temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75℃
Operating Temperatures	Maximum continuous 75℃ minimum-40℃ (w/o impact)
Terminal Identification	14/3, 12/3, 10/3 AWG size conductors; terminals identified in accordance with UL498 (X, Y, Z, white, green)

Tips: How to use the electrical locking plug correctly?

Improper use of the electrical locking plug is easy to cause electricity safety risks, grasp the correct use method to ensure that the locking plug can be better used by us. So, how to use the locking plug correctly?

Prevent the occurrence of excess locking plug load. Each type of locking plug standard has a rated voltage and current, when use, you should ensure that the voltage and current of the inserted appliance is less than the rated voltage and current of it, otherwise it is easy to overload and heat, and even shorten its life span.
If the locking plug is loose, bad contact and other phenomena, it should be repaired in time. If the repair is not good, it should be abandoned.
Clean the locking plug regularly. The panel and jack are easy to accumulate dust. If the dust is not cleaned up for a long time, it will not only affect the appearance of the locking plug, but also make the copper rust easily, resulting in problems in the use of it. Accordingly, when using it, you should wipe the shell regularly with the alcohol of low concentration, and shake it to remove the dust in the jack.
