6" Pneumatic Wafer Butterfly Valve

0 reviews • Write a review

from

$743.39

Ex Tax: $743.39

Stock: In Stock
Model: RDDLZ-PBV-150
Weight: 1.00
SKU: RDDLZ-PBV-150

Available Options

Short Description

Butterfly Valve Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This butterfly valve cannot be used for drinking water.

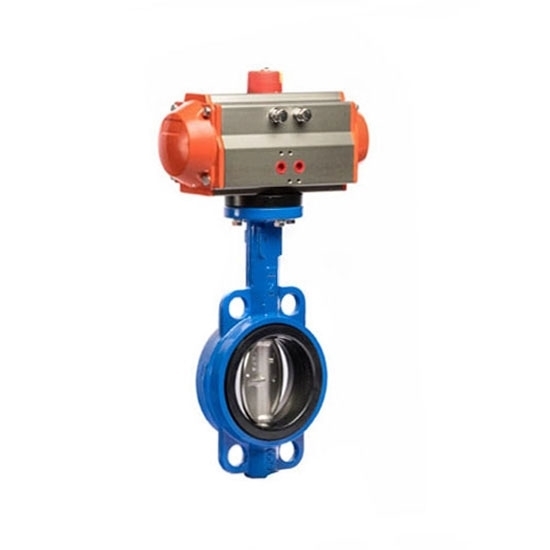

Industrial 6 inch pneumatic wafer butterfly valve comes with 150mm (DN150) port size for water flow working. The air actuated 2 way butterfly control valve is equipped with a pneumatic actuator and stainless steel disc, which is a reliable device for gases and liquids flow control.

Specification

Butterfly Valve	Model	RDDLZ-PBV-150
	Media	Water, Air, Gas, Oil, Liquid, etc.

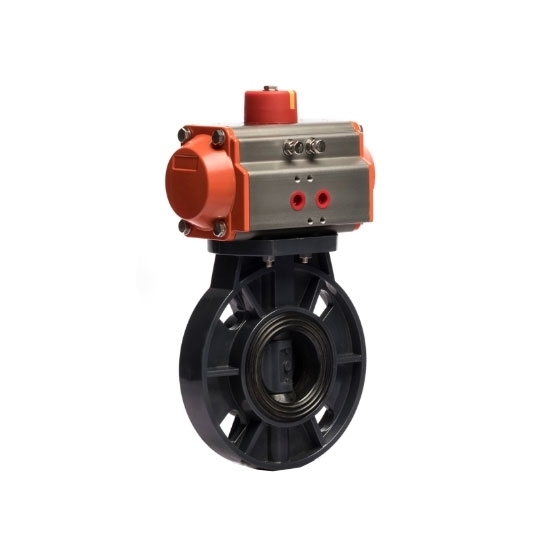

	Butterfly Valve Type	Wafer Type	PVC Type
	Port Size	6 inch (DN150, 150mm)
	Body Material	Cast Iron	PVC
	Disc Material	Stainless Steel (SS)	UPVC
	Seat Material	EPDM
	Working Temperature	-10 °C to 120 °C
Pneumatic Actuator	Model	RDDLZ-AT100D
	Actuator Type	Double Acting
	Bore Size	100mm
	Air Pressure	0.25 - 0.8MPa, PN16
	Pressure Difference	0 - 1.0MPa
	Air Supply Port	1/4 inch
	Actuator Material	Aluminum Alloy

Wafer Butterfly Valve Body Dimension (Unit: mm)

DN	L	H1	H2	A	D	D1	N-φd
150	56	139	385	268	238	211	4-25

PVC Butterfly Valve Body Dimension (Unit: mm)

JIS		ANSI		DIN		D	D2	D3	H2	H3	W1	W2	d1	D4	S	H	L
D1	n-φe	D1	n-φe	D1	n-φe
240	8-23	241.5	8-23	240	8-18	287	152	169	177	19	70	54	10.5	102	22	360	268

Pneumatic Actuator Dimension (Unit: mm)

RDDLZ-AT100D

Q	A	B	C	D	E	F	G	H	I
Φ70/Φ102mm	268mm	120mm	55mm	65mm	157mm	125mm	30mm	80mm	PF
J	K	O	P	S	T	U	V	W	X
M6	1/4"	20mm	40.5mm	4mm	4mm	12mm	24mm	16mm	32mm

Details

Tips: Difference between pneumatic butterfly valve and electric butterfly valve

The electric butterfly valve is driven by electricity and is composed of an electric actuator and a butterfly valve, so it is less affected by temperature, pressure and climate, but it is not suitable for working in wet conditions. It can drive the butterfly valve plate through the electric actuator. To realize the opening and closing action, it has a larger action torque than a common butterfly valve. It is generally used in large-diameter pipelines, and can also be used for the control and regulation of water, air, mud, oil and corrosive media.

The pneumatic butterfly valve uses compressed air as the driving force, and is composed of a pneumatic actuator and a butterfly valve. It is relatively small in size and light in weight. When installing a pneumatic butterfly valve, you can choose accessories, such as pressure reducing valves, solenoid valves, limit switches, etc. Faster action and response than electric butterfly valves. Pneumatic butterfly valves are generally used for small diameter pipes, and can also be used to control gas, air, water, oil, mud, and corrosive media.
