10" Pneumatic Wafer Butterfly Valve

0 reviews • Write a review

from

$1,770.89

Ex Tax: $1,770.89

Stock: In Stock
Model: RDDLZ-PBV-250
Weight: 1.00
SKU: RDDLZ-PBV-250

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This butterfly valve cannot be used for drinking water.

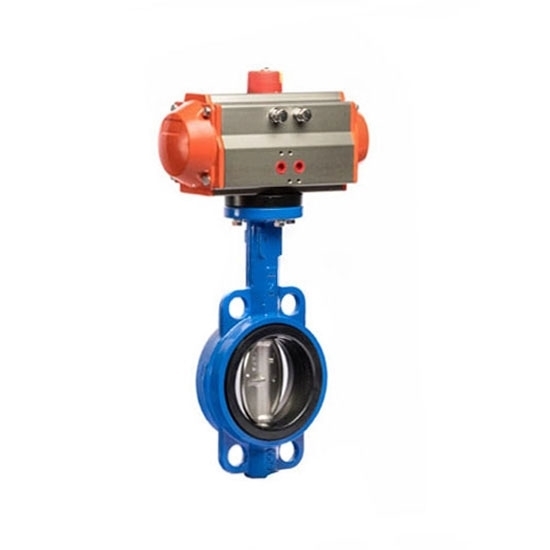

Industrial 10 inch pneumatic wafer butterfly valve comes with 250mm (DN250) port size for water flow working. The air actuated 2 way butterfly control valve is equipped with a pneumatic actuator and stainless steel disc, which is a reliable device for gases and liquids flow control.

Specification

Butterfly Valve	Model	RDDLZ-PBV-250
	Media	Water, Air, Gas, Oil, Liquid, etc.
	Butterfly Valve Type	Wafer Type
	Port Size	10 inch (DN250, 250mm)
	Body Material	Cast Iron
	Seat Material	EPDM
	Disc Material	Stainless Steel (SS)
	Working Temperature	-10 °C to 120 °C
Pneumatic Actuator	Model	RDDLZ-AT145D
	Actuator Type	Double Acting
	Bore Size	145mm
	Air Pressure	0.25 - 0.8MPa, PN16
	Pressure Difference	0 - 1.0MPa
	Air Supply Port	1/4 inch
	Actuator Material	Aluminum Alloy

Wafer Butterfly Valve Body Dimension (Unit: mm)

DN	L	H1	H2	A	D	D1	N-φd
250	60.5	203	510	418	357	319	4-29

Pneumatic Actuator Dimension (Unit: mm)

RDDLZ-AT145D

Q	A	B	C	D	E	F	G	H	I
Φ102/Φ125mm	418mm	167mm	80mm	87mm	218mm	178mm	30mm	80mm	PF
J	K	O	P	S	T	U	V	W	X
M6	1/4"	30mm	62mm	4mm	4mm	12mm	24mm	16mm	32mm

Details

Tips: What is a pneumatic butterfly valve?

Pneumatic butterfly valve is composed of a pneumatic actuator and a butterfly valve. Pneumatic butterfly valve uses the circular butterfly plate that rotates with the valve stem to open and close to realize the activation action. Air actuated butterfly valve is divided into stainless steel pneumatic butterfly valve, hard seal pneumatic butterfly valve, soft seal pneumatic butterfly valve, carbon steel pneumatic butterfly valve, etc. The main advantages are simple structure, small size, light weight and low cost.
