2" Pneumatic Wafer Butterfly Valve

0 reviews • Write a review

from

$257.69

Ex Tax: $257.69

Stock: In Stock
Model: RDDLZ-PBV-50
Weight: 1.00
SKU: RDDLZ-PBV-50

Available Options

Short Description

Butterfly Valve Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This butterfly valve cannot be used for drinking water.

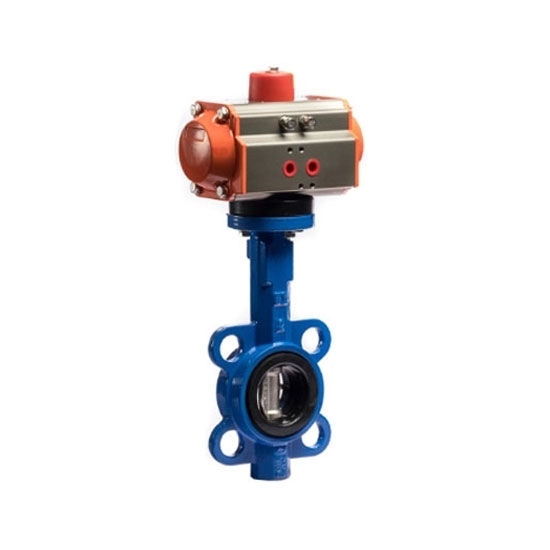

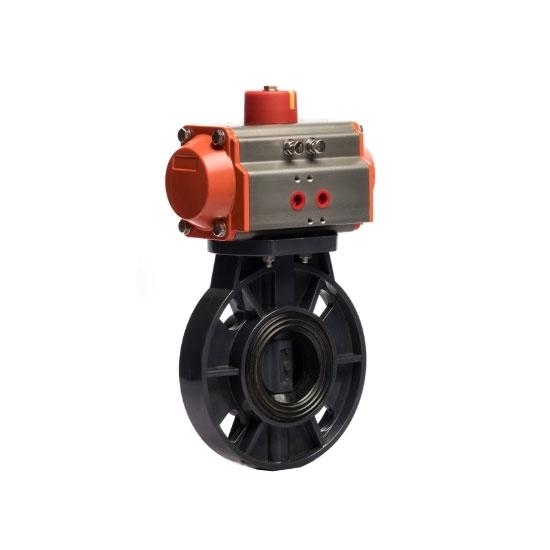

Favorable price 2 inch pneumatic butterfly valve consists of a pneumatic actuator and a cast iron or PVC butterfly valve that comes with a 50mm (DN50) port and high performance disc. Our air actuated butterfly valve can work at high temperature below 100 °C, which is a reliable device for flow control.

Specification

Butterfly Valve	Model	RDDLZ-PBV-50
	Media	Water, Air, Gas, Oil, Liquid, etc.
	Butterfly Valve Type	Wafer Type	PVC Type
	Port Size	2 inch (DN50, 50mm)
	Body Material	Cast Iron	PVC
	Disc Material	Stainless Steel (SS)	UPVC
	Seat Material	EPDM
	Working Temperature	-10 °C to 120 °C
Pneumatic Actuator	Model	RDDLZ-AT063D
	Actuator Type	Double Acting
	Bore Size	63mm
	Air Pressure	0.25 - 0.8MPa, PN16
	Pressure Difference	0 - 1.0MPa
	Air Supply Port	1/4 inch
	Actuator Material	Aluminum Alloy

Wafer Butterfly Valve Body Dimension (Unit: mm)

DN	L	H1	H2	A	D	D1	N-φd
50	42	80	276	167	120	99	4-23

PVC Butterfly Valve Body Dimension (Unit: mm)

JIS		ANSI		DIN		D	D2	D3	H2	H3	W1	W2	d1	D4	S	H	L
D1	n-φe	D1	n-φe	D1	n-φe
120	4-19	120.5	4-19	125	4-18	160	56.5	105	103	13	43	29	6.5	50	14	230	167

Pneumatic Actuator Dimension (Unit: mm)

RDDLZ-AT063D

Q	A	B	C	D	E	F	G	H	I
Φ36/Φ50mm	167mm	82mm	35mm	47mm	113mm	85mm	30mm	80mm	PF
J	K	O	P	S	T	U	V	W	X
M6	1/4"	20mm	40.5mm	4mm	4mm	12mm	24mm	16mm	32mm

Details

Tips: Pneumatic butterfly valve working principle

The pneumatic butterfly valve uses a circular butterfly plate that rotates with the valve stem to open and close, and the pneumatic valve that realizes the activation action is mainly used as a cut-off valve, and can also be designed to have the function of adjustment or segment valve and adjustment. Increasing use of medium diameter pipes.

The pneumatic butterfly valve is simple in structure, small in size and light in weight. And it only needs to rotate 90° to open and close quickly, the operation is simple, and the electric valve has good fluid control characteristics. When the butterfly valve is in the fully open position, the thickness of the butterfly plate is the single resistance when the medium flows through the valve body, so the pressure drop generated by the valve is very small, so it has better flow control characteristics. Butterfly valves have two types of seals, including elastic seal and metal seal. The sealing ring can be inlaid on the valve body or attached to the periphery of the disc.

If the butterfly valve is required to be used for flow control, it is necessary to select the correct size and type of the valve. The structural principle of the butterfly valve is especially suitable for making large-diameter valves. Butterfly valves are not only widely used in general industries such as petroleum, gas, chemical, water treatment, etc., but also in the cooling water system of thermal power plants.
