3" Pneumatic Wafer Butterfly Valve

0 reviews • Write a review

from

$328.29

Ex Tax: $328.29

Stock: In Stock
Model: RDDLZ-PBV-80
Weight: 1.00
SKU: RDDLZ-PBV-80

Available Options

Short Description

Butterfly Valve Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This butterfly valve cannot be used for drinking water.

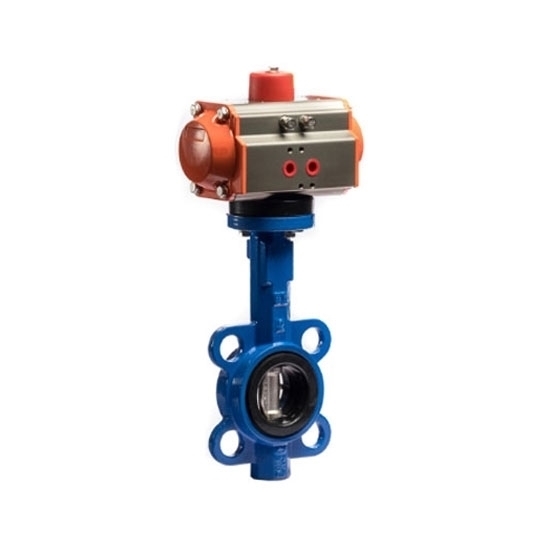

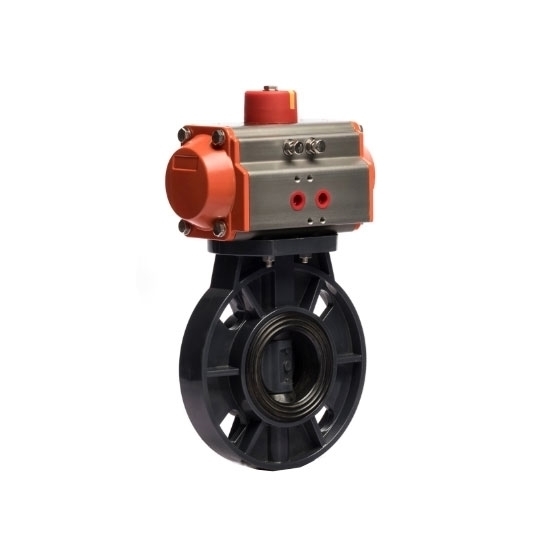

Favorable price 3 inch pneumatic butterfly valve consists of a pneumatic actuator and a cast iron or PVC butterfly valve that comes with a 80mm (DN80) port and high performance disc. Our air actuated butterfly valve can work at high temperature below 100 °C, which is a reliable device for flow control.

Specification

Butterfly Valve	Model	RDDLZ-PBV-80
	Media	Water, Air, Gas, Oil, Liquid, etc.
	Butterfly Valve Type	Wafer Type	PVC Type
	Port Size	3 inch (DN80, 80mm)
	Body Material	Cast Iron	PVC
	Disc Material	Stainless Steel (SS)	UPVC
	Seat Material	EPDM
	Working Temperature	-10 °C to 120 °C
Pneumatic Actuator	Model	RDDLZ-AT063D
	Actuator Type	Double Acting
	Bore Size	63mm
	Air Pressure	0.25 - 0.8MPa, PN16
	Pressure Difference	0 - 1.0MPa
	Air Supply Port	1/4 inch
	Actuator Material	Aluminum Alloy

Wafer Butterfly Valve Body Dimension (Unit: mm)

DN	L	H1	H2	A	D	D1	N-φd
80	45.5	95	296	167	160	132	8-18

PVC Butterfly Valve Body Dimension (Unit: mm)

JIS		ANSI		DIN		D	D2	D3	H2	H3	W1	W2	d1	D4	S	H	L
D1	n-φe	D1	n-φe	D1	n-φe
150	8-19	152.5	4-19	160	4-18	196	79.5	123	115	13	49	31	8.5	70	17	255	275

Pneumatic Actuator Dimension (Unit: mm)

RDDLZ-AT063D

Q	A	B	C	D	E	F	G	H	I
Φ36/Φ50mm	167mm	82mm	35mm	47mm	113mm	85mm	30mm	80mm	PF
J	K	O	P	S	T	U	V	W	X
M6	1/4"	20mm	40.5mm	4mm	4mm	12mm	24mm	16mm	32mm

Details

Tips: How to maintain the pneumatic butterfly valve?

During use, the pneumatic butterfly valve should be kept clean frequently, and the transmission thread must be lubricated regularly. When a fault is found, it should be stopped immediately, and the cause should be identified to clear the fault.
The bolts of the packing gland should be tightened evenly, and should not be pressed into a crooked state, so as to avoid bumping and hindering the movement of the valve stem or causing leakage.
When the pneumatic butterfly valve is used, it is only fully open or fully closed, and it is not allowed to adjust the flow, so as to avoid erosion of the sealing surface and accelerated wear. There are inverted sealing devices in the gate valve and the upper threaded globe valve. The handwheel is turned to the uppermost position and tightened to prevent the medium from leaking from the packing.
Use the handwheel when opening and closing the pneumatic butterfly valve. Do not use levers or other tools to avoid damage to the valve parts. Turn the handwheel clockwise to close, and vice versa to open.
Butterfly valves stored for a long time should be checked regularly. The exposed processing surface should be kept clean and the dirt should be removed. During storage, both ends of the ball valve should be blocked and open, and both ends of the channel should be blocked and closed for pneumatic butterfly valves. Store neatly in a ventilated and dry place indoors, and it is strictly forbidden to stack or store in the open air.
