2-1/2" Pneumatic Wafer Butterfly Valve

0 reviews • Write a review

from

$276.99

Ex Tax: $276.99

Stock: In Stock
Model: RDDLZ-PBV-65
Weight: 1.00
SKU: RDDLZ-PBV-65

Available Options

Short Description

Butterfly Valve Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This butterfly valve cannot be used for drinking water.

2-1/2 inch pneumatic butterfly valve consists of a pneumatic actuator and a cast iron or PVC butterfly valve that comes with a 65mm (DN65) port and high performance disc. Our air actuated butterfly valve can work at high temperature below 100 °C, which is a reliable device for flow control.

Specification

Butterfly Valve	Model	RDDLZ-PBV-65
	Media	Water, Air, Gas, Oil, Liquid, etc.

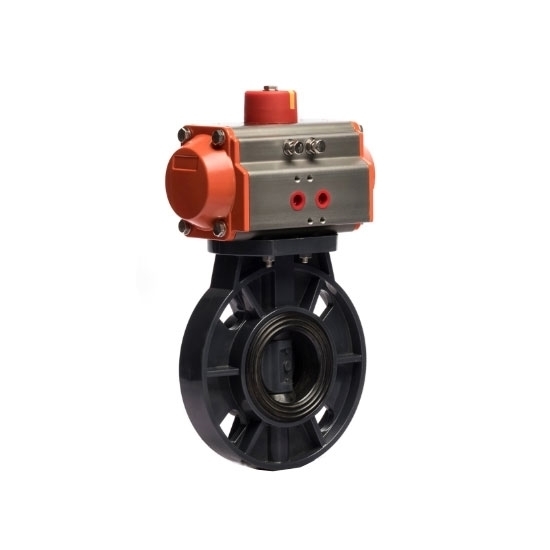

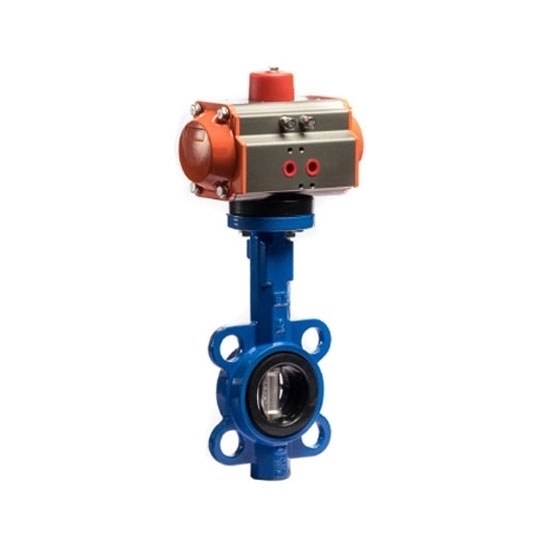

	Butterfly Valve Type	Wafer Type	PVC Type
	Port Size	2-1/2 inch (DN65, 65mm, 2.5 inch)
	Body Material	Cast Iron	PVC
	Disc Material	Stainless Steel (SS)	UPVC
	Seat Material	EPDM
	Working Temperature	-10 °C to 120 °C
Pneumatic Actuator	Model	RDDLZ-AT063D
	Actuator Type	Double Acting
	Bore Size	63mm
	Air Pressure	0.25 - 0.8MPa, PN16
	Pressure Difference	0 - 1.0MPa
	Air Supply Port	1/4 inch
	Actuator Material	Aluminum Alloy

Wafer Butterfly Valve Body Dimension (Unit: mm)

DN	L	H1	H2	A	D	D1	N-φd
65	44.5	89	290	167	136	118	4-26.5

PVC Butterfly Valve Body Dimension (Unit: mm)

JIS		ANSI		DIN		D	D2	D3	H2	H3	W1	W2	d1	D4	S	H	L
D1	n-φe	D1	n-φe	D1	n-φe
140	4-19	139.5	4-19	145	5-18	180	69.5	120	113	13	46	31	6.5	50	14	240	167

Pneumatic Actuator Dimension (Unit: mm)

RDDLZ-AT063D

Q	A	B	C	D	E	F	G	H	I
Φ36/Φ50mm	167mm	82mm	35mm	47mm	113mm	85mm	30mm	80mm	PF
J	K	O	P	S	T	U	V	W	X
M6	1/4"	20mm	40.5mm	4mm	4mm	12mm	24mm	16mm	32mm

Details

Tips: Advantages of pneumatic butterfly valve

Small and light, easy to disassemble and maintain, and can be installed in any position.
The structure of the pneumatic butterfly valve is simple and compact, the operating torque is small, and the 90° rotation can be opened quickly.
The flow characteristics tend to be straight, and the adjustment performance is good.
The connection between the butterfly plate and the valve stem adopts a pin-free structure, which overcomes the possible internal leakage point.
The outer circle of the butterfly plate adopts a spherical shape, which improves the sealing performance and prolongs the service life of the valve. It still maintains zero leakage for more than 50,000 times of opening and closing under pressure.
The seals can be replaced, and the sealing is reliable and can achieve bidirectional sealing.
The butterfly plate can be sprayed with coating according to user requirements, such as nylon or PTFE.
