10μF 35V Tantalum Capacitor

0 reviews • Write a review

from

$1.79

Ex Tax: $1.79

Stock: In Stock
Model: RDDLZ-TC-10UF35V
Weight: 1.00
SKU: RDDLZ-TC-10UF35V

Available Options

Short Description

Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

10μF 35V tantalum capacitor matches with DIP and SMD two types of Encapsulation type. Tantalum capacitor applies in mobile phone, printer and electric tool.

Features:

Small volume and small capacity error
Wide temperature range, high temperature resistance
Long life, high insulation resistance, small leakage current
Equivalent series resistance (ESR) has good high frequency performance

Specification:

Nominal Capacity	10μF, 35V
Type	DIP	SMD
Equivalent Series Resistance	1
Net Size	1 mm
Tolerance	10%
Height Mounting (Maximum)	1 mm
Leading Spacing	2.54 mm	Leadless
Working Temperature	-40 ℃— +125 ℃	-85 ℃— +125 ℃

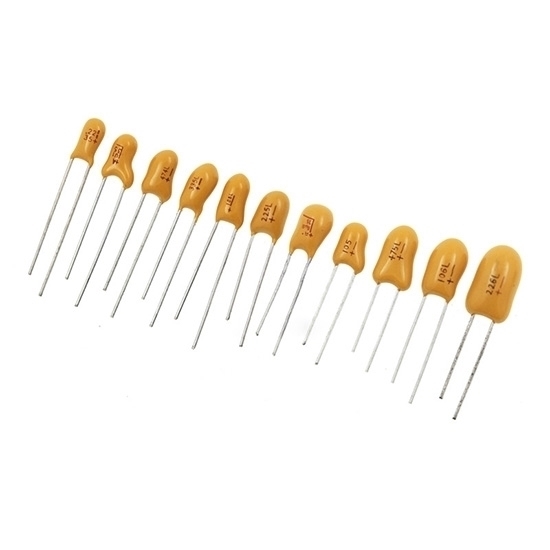

DIP Tantalum Capacitor Dimension: (Unit: mm)

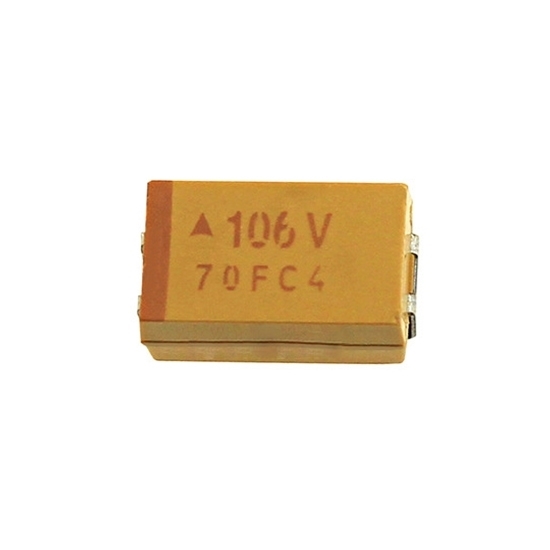

SMD Tantalum Capacitor Dimension: (Unit: mm)

D: L= 7.3, S= 1.3, W₁= 4.3, W₂= 2.4, H= 2.8

Tips: What is SMD Tantalum Capacitor?

Surface mount tantalum capacitors are widely used in modern electronics equipment. When designed with sufficient margins they provide reliable service and enable high values of capacitance to be obtained within the small package sizes needed for modern equipment.

Aluminium electrolytics were not initially available in surface mount packages as they were not able to withstand the temperatures needed in soldering. As a result tantalum capacitors which were able to withstand the soldering process were almost the only choice for high value capacitors in assemblies using surface mount technology.

Now that SMD capacitors are available, tantalum is still used on surface mount printed circuit boards as they offer an excellent size and performance parameters, but electrolytic capacitors tend to be used more in newer electronic designs because of the cost differential between these two electronic components.
