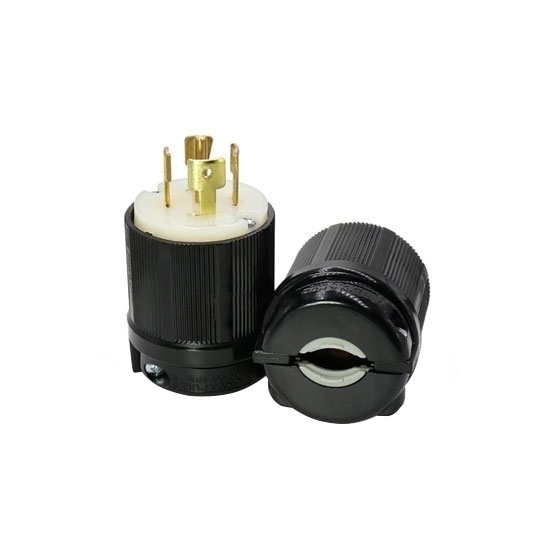

30A 347V/ 600V Locking Plug, 4 Pole 5 Wire
from
$59.99
Ex Tax: $59.99
- Stock: In Stock
- Model: RDDLZ-LP23-30
- Weight: 1.00
- SKU: RDDLZ-LP23-30
Available Options
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Heavy duty twist locking plug is good to use and install. It comes with nylon material, high quality and durable, fall resistant and explosion-proof. Plug matching socket has the function of clamping the power cord to prevent the phenomenon of slack power failure in the work.
Specification
Model | RDDLZ-LP23-30 |
Plug Type | NEMA L23-30 Plug |
Materials | Nylon and full copper |
Certifications | UL/ CSA/ CUL |
Rated Voltage | 347V/ 600V |
Rated Current | 30 Amp |
Wiring & Connecting | 4 Pole 5 Wire |
Terminal Clamp Material | 0.08" (2) steel-nickel plated |
Terminal Screw Material | 10-32 Brass white finish on neutral screw when use |
Ground Screw Material | 10-32 Brass (green finish), multi-device |
Dielectric Voltage Withstand | 18000V minimum |
Current Interrupting | Certified for current interrupt at full rate current |
Temperature Resistant | Max 30℃ temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75℃ |
Operating Temperatures | Maximum continuous 75℃ minimum -40℃ (w/o impact) |
Terminal Identification | 14/3, 12/3, 10/3 AWG size conductors; terminals identified in accordance with UL498 (X, Y, Z, white, green) |
