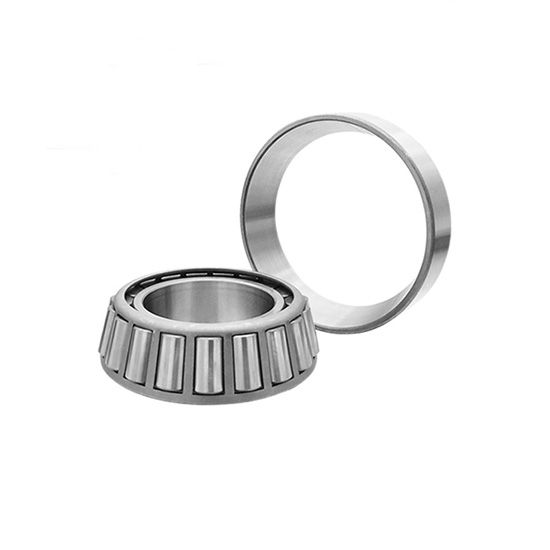

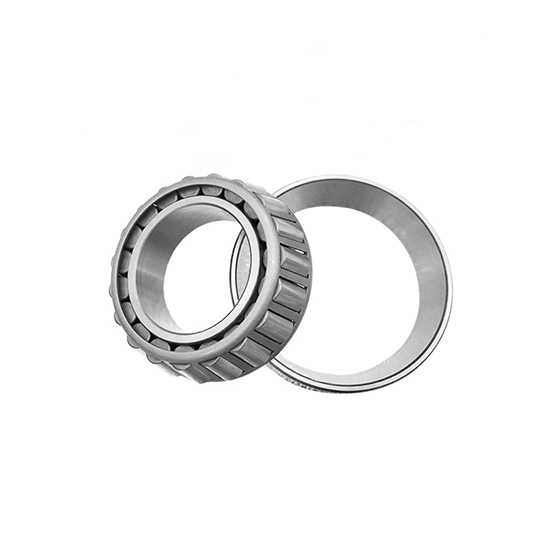

25mm Tapered Roller Bearing, Single Row

0 reviews • Write a review

from

$55.99

Ex Tax: $55.99

Stock: In Stock
Model: RDDLZ-TRB-25
Weight: 1.00
SKU: RDDLZ-TRB-25

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High-speed tapered roller bearing comes with an inner diameter of 25mm, static load rating of 25.8kN, and 650 rpm limiting speed. High-speed tapered roller bearing is widely used in machine tools, paper-making machinery, mechanical gears, motors, wind generators, steel equipment and mining equipment, etc.

Specification

Model: RDDLZ-30205
Inner diameter: 25mm
Outer diameter: 52mm
Width: 16.25mm
Accuracy class: P6
Limiting speed: 650 rpm
Bearing basic dynamic load rating: 25.8 kN
Rated static load: 163 kN
Bearing material: Bearing steel

Dimension (mm)

Application

Tips: Do tapered roller bearings need adjusting?

When adjusting tapered bearings against each other, the bearings must be rotated so that the roller ends are in correct contact with the guide flange of the inner ring. At initial assembly, other factors determine the non-operating clearance or preload.
