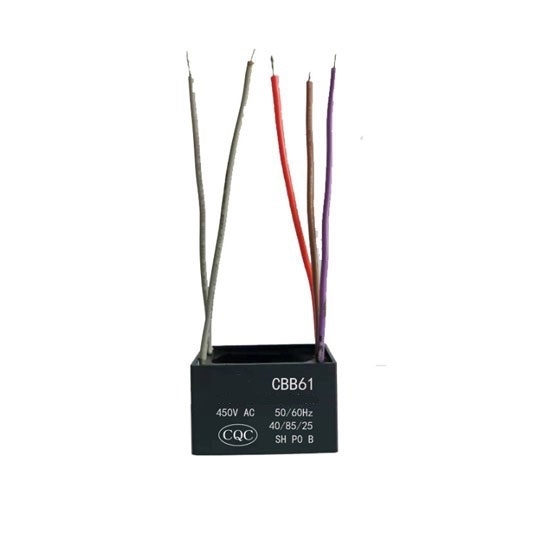

450V Ceiling Fan Capacitor, 1.5μF+2μF+3μF

0 reviews • Write a review

from

$1.62

Ex Tax: $1.62

Stock: In Stock
Model: RDDLZ-FC-CBB61-1523
Weight: 1.00
SKU: RDDLZ-FC-CBB61-1523

Available Options

Short Description

Rated Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Selling ceiling capacitors for fan speed control, tolerance ±5%, capacity 1.5μF+2μF+3μF, used for starting and running of single-phase motors with 50/60Hz AC power supply for various electrical motors, also for motor speed control.

Specification

Model: RDDLZ-FC-CBB61-1523
Capacity: 1.5μF+2μF+3μF
Rated Voltage: 450V/500V
Tolerance: ±5%
Withstand Voltage: 2. 0 Un (2s)
Loss: (DF)≤0.0010 100Hz
Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
Rated Frequency: 50/60Hz
Climate Category: 40/85/23
Scope of Application: Start, run
Appearance: Rectangular
Lead Out Method: Cord, pin, insert
Dielectric Material: Organic thin film
Dimension: 48(W) x 23(L) x 35(H)mm
Certificate: CE, CQC

5 Wire Ceiling Fan Capacitor Connection Diagram

Tips: The function of capacitor of electric fan

The capacitor of the fan can play the role of shifting items. After the electric fan is connected to the power supply, the circuit will charge the capacitor, which will generate a relatively large current at first, while the voltage will be close to 0. As the charging volume increases, the current will gradually decrease until the entire charging cycle is completed, and then the electric fan can be started to achieve the effect of blowing air.
