1.2μF 450V Ceiling Fan Capacitor

0 reviews • Write a review

from

$1.59

Ex Tax: $1.59

Stock: In Stock
Model: RDDLZ-FC-CBB61-012
Weight: 1.00
SKU: RDDLZ-FC-CBB61-012

Available Options

Short Description

Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

2 Wire capacitor ceiling fan rated voltage 450V, 1.2 mdf capacity, low loss at high frequencies, suitable for higher currents, high insulation resistance and long service life, explosion-proof design, can be used indoor and outdoor.

Specification

Model: RDDLZ-FC-CBB61-012
Capacity: 1.2μF
Rated Voltage: 450V
Tolerance: ±5%
Withstand Voltage: 2. 0 Un (2s)
Loss: (DF)≤0.0010 100Hz
Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
Rated Frequency: 50/60Hz
Climate Category: 40/105/21
Scope of Application: Start, run
Appearance: Rectangular
Lead Out Method: Cord, pin, insert
Dielectric Material: Organic thin film
Dimension: 36(W) x 11(L) x 22(H)mm
Certificate: CE, CQC

1.2μF Ceiling Fan Capacitor 2 Wire Connection Diagram

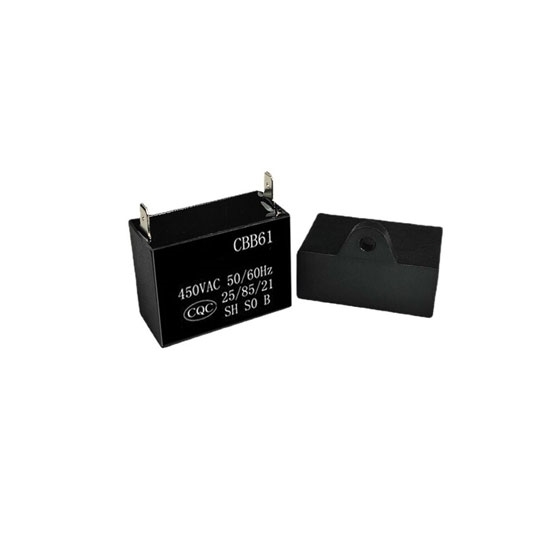

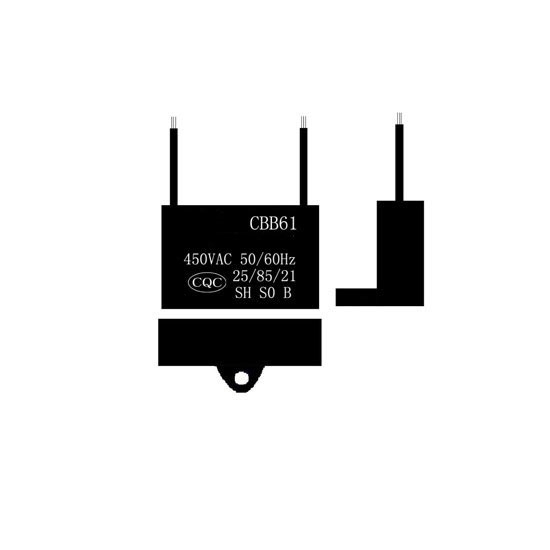

Ceiling Fan Capacitor Details

Tips: Is the "medium" of non-polarized capacitor and polarized capacitor the same?

The answer is different, the medium of capacitor is the material between the two poles of capacitor, most of the polarized capacitors use electrolyte as the medium material, generally the capacitor of the same volume has a large capacitance. In addition, the capacitance of the same volume of polarized capacitors made by different electrolytic materials and processes will be different. Moreover, the voltage resistance and the dielectric material are also closely related. There are many materials for non-polarized capacitors, but most of them use metal oxide film, polyester, etc. The reversible or irreversible performance of the dielectric determines the environment of polarized and non-polarized capacitors.
