1.8μF 450V Ceiling Fan Capacitor

0 reviews • Write a review

from

$1.69

Ex Tax: $1.69

Stock: In Stock
Model: RDDLZ-FC-CBB61-018
Weight: 1.00
SKU: RDDLZ-FC-CBB61-018

Available Options

Short Description

Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy low price ceiling fan capacitor online, rated capacity 1.8 mfd, capacitor tolerance 5%, fan capacitor is not only for motor, but also for various fans, range hoods, air conditioners, fans, pumps, toasters, one of the important accessories.

Specification

Model: RDDLZ-FC-CBB61-018
Capacity: 1.8μF
Rated Voltage: 450V
Tolerance: ±5%
Withstand Voltage: 2. 0 Un (2s)
Loss: (DF)≤0.0010 100Hz
Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
Rated Frequency: 50/60Hz
Climate Category: 40/105/21
Scope of Application: Start, run
Appearance: Rectangular
Lead Out Method: Cord, pin, insert
Dielectric Material: Organic thin film
Dimension: 37(W) x 15(L) x 25(H)mm
Certificate: CE, CQC

1.8μF Ceiling Fan Capacitor 2 Wire Wiring Diagram

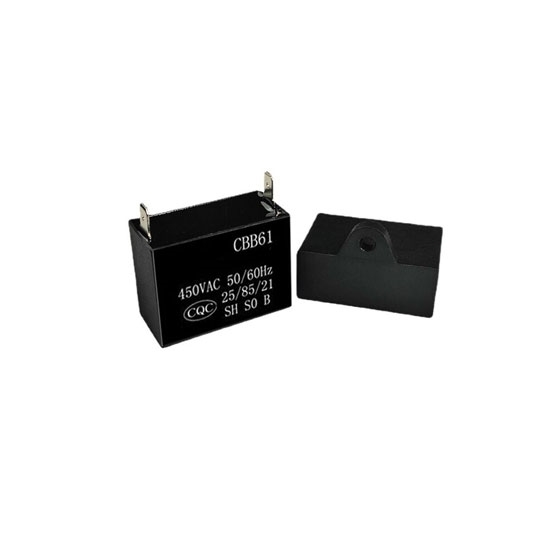

Ceiling Fan Capacitor Details

Tips: Is the "capacity" of non-polarized capacitor and polarized capacitor the same?

Generally speaking, electrolytic capacitors and aluminum electrolytic capacitors are more commonly used, and electrolytic capacitors are cylindrical, and the capacitance of 100uf~1000uf is common, but the capacitance of 100uf of non-polarized capacitors is rare, of course, the price is also more expensive, chip capacitors are a little cheaper, and tantalum capacitors are more expensive. The advantages of non-polarity capacitors are small size, low price and good high frequency characteristics. The only disadvantage is that they are not suitable for large capacitance, like porcelain chip capacitors and monolithic capacitors, etc.
