0.8μF 450V Ceiling Fan Capacitor

0 reviews • Write a review

from

$1.28

Ex Tax: $1.28

Stock: In Stock
Model: RDDLZ-FC-CBB61-008
Weight: 1.00
SKU: RDDLZ-FC-CBB61-008

Available Options

Short Description

Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

CBB61 type ceiling fan capacitor with frequency of 50/60Hz AC power supply, rated voltage 450V, 0.8 mfd capacity, reliable insulation performance and long service life, is suitable for starting and running of various electrical motors.

Specification

Model: RDDLZ-FC-CBB61-008
Capacity: 0.8μF
Rated Voltage: 450V
Tolerance: ±5%
Withstand Voltage: 2. 0 Un (2s)
Loss: (DF)≤0.0010 100Hz
Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
Rated Frequency: 50/60Hz
Climate Category: 40/105/21
Scope of Application: Start, run
Appearance: Rectangular
Lead Out Method: Cord, pin, insert
Dielectric Material: Organic thin film
Dimension: 36(W) x 10(L) x 18(H)mm
Certificate: CE, CQC

0.8μF Fan Capacitor 2 Wire Circuit Diagram

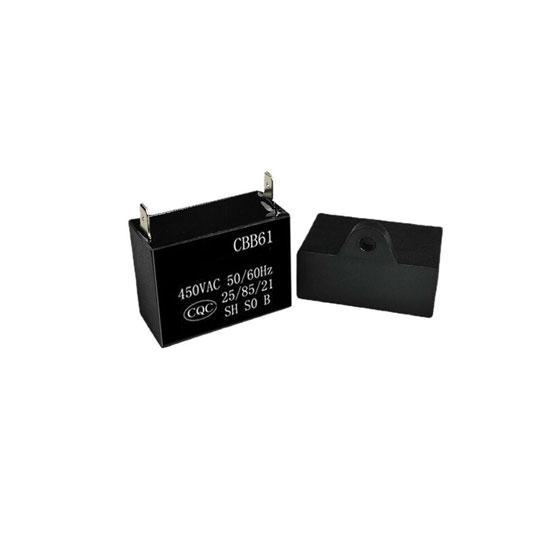

Ceiling Fan Capacitor Details

Tips: Are the "principles" of non-polarized and polarized capacitors the same?

The answer is the same, both non-polarized and polarized capacitors store and release charge, and the voltage on the pole plate (here the electric potential of charge accumulation is called voltage) cannot be changed suddenly.

The difference lies in the different medium, different performance, different capacity, different structure, and different environment and usage. In turn, according to the needs of production practice, people have experimented and manufactured various functions of capacitors to meet the normal operation of various electrical appliances and new equipment. With the development of science and technology and the discovery of new materials, better quality and diversified capacitors will emerge.
