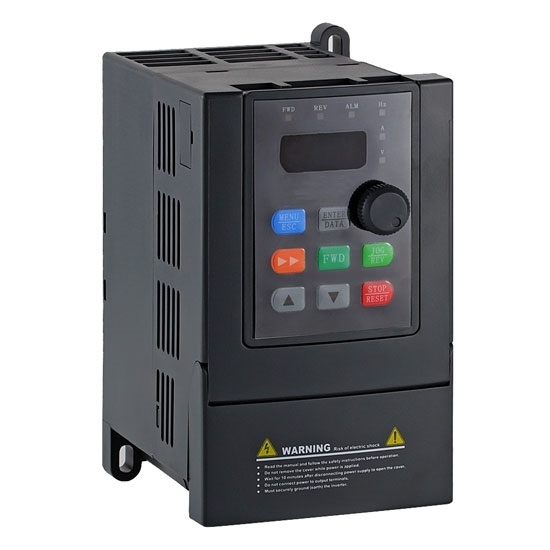

1 Hp (0.75 KW) VFD, Single Phase Input & Output

0 reviews • Write a review

from

$195.82

Ex Tax: $195.82

Stock: In Stock
Model: GK3000-1S0007
Weight: 1.00
SKU: GK3000-1S0007

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

1 hp variable frequency drive, 0.75 kW, 1 phase 220V - 240V for single phase AC motor, manufacturer direct sale.

Specification:

Basics	Model	GK3000-1S0007
	Capacity	1 hp (0.75 kW)
	Shipping weight	2 kg
	Dimension	14285110 mm
I/O Feature	Rated current	7 A
	Input voltage	single phase AC 220V±15%
	Input frequency	47~63Hz
	Output voltage	0～rated input voltage
	Output frequency	0~1000Hz
	Over load capacity	150% of rated current for 60s, 180% of rated current for 10s, 200% of rated current for 3s
Control Features	Control mode	V/F, Sensorless vector control (SVC), Speed sensor vector control (FVC)
	Operation command mode	Keypad control, Terminal control, Serial communication control
	Frequency setting mode	Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combined & switched in various modes.
	Start frequency	0.40Hz~20.00Hz
	Speed adjustment range	1:50
	Carrier frequency	1.0-16.0kHz, automatically adjusted according to temperature and load characteristics
	Frequency accuracy	Digital setting: 0.01Hz Analog setting: Maximum frequency * 0.05%
	Torque boost	Automatically torque boost; manually torque boost: 0.1%~30.0%
	V/f curve	Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)
	Acceleration/deceleration mode	Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.1s~3600.0s
	Jog operation	Jog operation frequency: 0.0Hz~maximum frequency Jog acceleration/deceleration time: 0.1s~3600.0s
	Simple PLC & multi-step speed operation	It can realize a maximum of 16 segments speed running via the built-in PLC or control terminal.
	Built-in PID	Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)
	Automatic voltage regulation	Keep output voltage constant automatically when input voltage fluctuating
Control Function	Common DC bus	Common DC bus for several VFDs, energy balanced automatically
	Torque control	Torque control without PG
	Torque limit	"Rooter" characteristics, limit the torque automatically and prevent frequent over-current tripping during the running process
	Wobble frequency control	Multiple triangular-wave frequency control, special for textile
	Timing/length/counting control	Timing/length/counting control function
	Over-voltage & over-current stall control	Limit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping
	Fault protection function	Up to 30 fault protections including over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running status during failure & has fault automatic reset function
Input/output terminals	Input terminals	Programmable DI: 7 on-off inputs, 1 high-speed pulse input 2 programmable AI: AI1: 0～10V or 0/4～20mA A12: 0～10V or 0/4～20mA
	Output terminals	1 programmable open collector output: 1 analog output (open collector output or high-speed pulse output) 2 relay output 2 analog output: 0/4~20mA or 0~10V
	Communication terminals	Offer RS485 communication interface, support MODBUS-RTU communication protocol
Human machine interface	LED display	Display frequency setting, output frequency, output voltage, output current, etc.
Human machine interface	Multifunction key	QUICK/JOG key, can be used as multifunction key
Environment	Ambient temperature	-10℃～40℃, derated 4% when the temperature rise by every 1℃ (40℃～50℃).
	Humidity	90%RH or less (non-condensing)
	Altitude	≤1000M: Output rated power, ＞1000M: Output derated
	Storage temperature	-20℃～60℃

Note:

The single phase motor should Not be adjusted to run based on a lower frequency than 80% of its rated frequency for along time, otherwise the motor may fail.
RDDLZ VFD Cannot be used as a power source, it Can only be directly connected to an induction motor to control the motor speed.
Single phase VFD Cannot control the motor in reverse, if you want to reverse the motor, refer to the motor nameplate instructions for operation.

Details

Tips: Variable frequency drive applications

Air conditioner load
Office buildings, shopping malls, supermarkets and some factories have central air conditioner. In the summer electricity peak, large city air conditioner power consumption accounted for more than 40% of peak power. Therefore, using variable frequency drive to drag the air conditioning system, refrigeration pumps, cold water pumps and fans is a very good energy-saving technology.
Crusher load
Metallurgical mines and building material industry use a lot of crushers and grinding mills, these machineries have significant effect using variable frequency drive.
Large furnace calciner furnace load
Metallurgy, building materials, caustic soda and other large industrial rotary kiln uses DC motor, commutator motor, slip motor, cascade speed control and medium frequency unit speed control before. Because of these speed control mode or a slip ring have low efficiency, in recent years, many companies use frequency control, the effect is excellent.
Compressor load
Low-pressure compressors are widely used in various industrial sectors, high-pressure high-capacity compressors has more applications in steel, mining, fertilizer, ethylene industries. Using frequency control will bring low starting current, energy saving, optimizing equipment and other advantages.
Rolling mill load
The metallurgical industry uses AC-DC-AC VFD, and the multi-rack aluminum rolling unit uses general-purpose VFD to meet the low-frequency load starting. The variable frequency drive has advantages of inter-rack synchronous operation, constant tension control, simple and reliable operation.
Winding engine load
Iron mill blast furnace hoist equipment requires smooth boot and brake, balance speed adjusting and high reliability. These machineries use cascade, DC or rotor string resistance speed mode with low efficiency and poor reliability before. But, using VFD instead of the old speed control mode can achieve the desired results.
Revolving furnace load
Using AC variable frequency drive to replace DC unit in revolving furnace will get simple, reliable and stable operation.
Roller load
Roller load is mostly used in the iron and steel metallurgy industry. Using AC motor frequency control can improve equipment reliability and stability.
