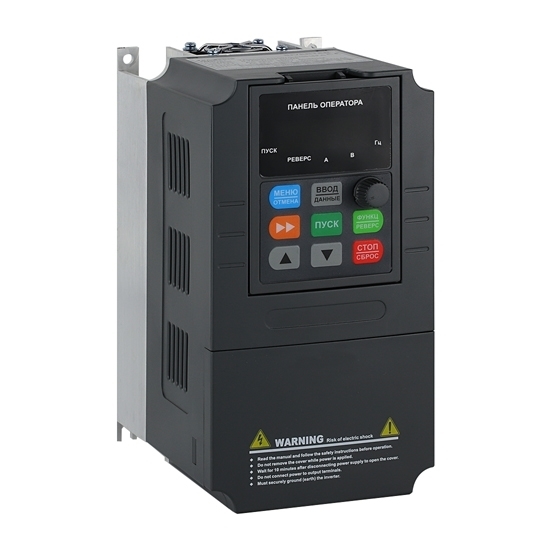

2 Hp (1.5 KW) VFD, Single Phase Input & Output

0 reviews • Write a review

from

$243.08

Ex Tax: $243.08

Stock: In Stock
Model: GK3000-1S0015
Weight: 1.00
SKU: GK3000-1S0015

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

2 hp variable frequency drive, 1.5 kW, 1 phase 220V - 240V for single phase AC motor, manufacturer direct sale.

Specification:

Basics	Model	GK3000-1S0015
	Capacity	2 hp (1.5 kW)
	Shipping weight	2 kg
	Dimension	190104150 mm
I/O Feature	Rated current	9.6 A
	Input voltage	single phase AC 220V±15%
	Input frequency	47~63Hz
	Output voltage	0～rated input voltage
	Output frequency	0~1000Hz
	Over load capacity	150% of rated current for 60s, 180% of rated current for 10s, 200% of rated current for 3s
Control Features	Control mode	V/F, Sensorless vector control (SVC), Speed sensor vector control (FVC)
	Operation command mode	Keypad control, Terminal control, Serial communication control
	Frequency setting mode	Digital setting, analog setting, pulse frequency setting, serial communication setting, multi-step speed setting & simple PLC, PID setting, etc. These frequency settings can be combined & switched in various modes.
	Start frequency	0.40Hz~20.00Hz
	Speed adjustment range	1:50
	Carrier frequency	1.0-16.0kHz, automatically adjusted according to temperature and load characteristics
	Frequency accuracy	Digital setting: 0.01Hz Analog setting: Maximum frequency * 0.05%
	Torque boost	Automatically torque boost; manually torque boost: 0.1%~30.0%
	V/f curve	Three types: linear, multiple point and square type (1.2 power, 1.4 power, 1.6 power, 1.8 power, square)
	Acceleration/deceleration mode	Straight line/S curve; four kinds of acceleration/deceleration time, range: 0.1s~3600.0s
	Jog operation	Jog operation frequency: 0.0Hz~maximum frequency Jog acceleration/deceleration time: 0.1s~3600.0s
	Simple PLC & multi-step speed operation	It can realize a maximum of 16 segments speed running via the built-in PLC or control terminal.
	Built-in PID	Built-in PID control to easily realize the close loop control of the process parameters (such as pressure, temperature, flow, etc.)
	Automatic voltage regulation	Keep output voltage constant automatically when input voltage fluctuating
Control Function	Common DC bus	Common DC bus for several VFDs, energy balanced automatically
	Torque control	Torque control without PG
	Torque limit	"Rooter" characteristics, limit the torque automatically and prevent frequent over-current tripping during the running process
	Wobble frequency control	Multiple triangular-wave frequency control, special for textile
	Timing/length/counting control	Timing/length/counting control function
	Over-voltage & over-current stall control	Limit current & voltage automatically during the running process, prevent frequent over-current & over-voltage tripping
	Fault protection function	Up to 30 fault protections including over-current, over-voltage, under-voltage, overheating, default phase, overload, shortcut, etc., can record the detailed running status during failure & has fault automatic reset function
Input/output terminals	Input terminals	Programmable DI: 7 on-off inputs, 1 high-speed pulse input 2 programmable AI: AI1: 0～10V or 0/4～20mA A12: 0～10V or 0/4～20mA
	Output terminals	1 programmable open collector output: 1 analog output (open collector output or high-speed pulse output) 2 relay output 2 analog output: 0/4~20mA or 0~10V
	Communication terminals	Offer RS485 communication interface, support MODBUS-RTU communication protocol
Human machine interface	LED display	Display frequency setting, output frequency, output voltage, output current, etc.
Human machine interface	Multifunction key	QUICK/JOG key, can be used as multifunction key
Environment	Ambient temperature	-10℃～40℃, derated 4% when the temperature rise by every 1℃ (40℃～50℃).
	Humidity	90%RH or less (non-condensing)
	Altitude	≤1000M: Output rated power, ＞1000M: Output derated
	Storage temperature	-20℃～60℃

Note:

The single phase motor should Not be adjusted to run based on a lower frequency than 80% of its rated frequency for along time, otherwise the motor may fail.
RDDLZ VFD Cannot be used as a power source, it Can only be directly connected to an induction motor to control the motor speed.
Single phase VFD Cannot control the motor in reverse, if you want to reverse the motor, refer to the motor nameplate instructions for operation.

Details

Tips: Variable frequency drive dust cleaning attentions
In actual operation of the variable frequency drive, the device will always be affected by the environment, such as temperature, humidity, air quality and so on. Especially in the dusty production workshops, if not timely clean up the dust, the operation of the VFD will have a certain impact, or seriously lead to some problems. In the process of dust removal of VFD, there are something need to pay attention:

Each VFD needs to be dust cleaned once a season.
Shutdown the VFD before cleaning, and wait for the voltage down to the safety then start working.
First use brush to clean the dust on the surface of the VFD, but pressure fan is not recommended for the cleaning.
If the VFD surface is greasy, use a small amount of alcohol to wipe clean, and must wait for the VFD dried before booting again.
In the maintenance, carefully check whether there are hot discolor parts, whether there is cracking of the cement resistance, or whether the electrolytic capacitors has expansion of leakage hole, protruding holes and other phenomena.
If possible, remove the shell and use compressed air to blow out the dust inside the VFD and in the wind path. Pay attention when using compressed air because it may contain large amount of moisture. Using a vacuum cleaner is better than compressed air, because the moisture in the compressed air may cause error to the VFD.
