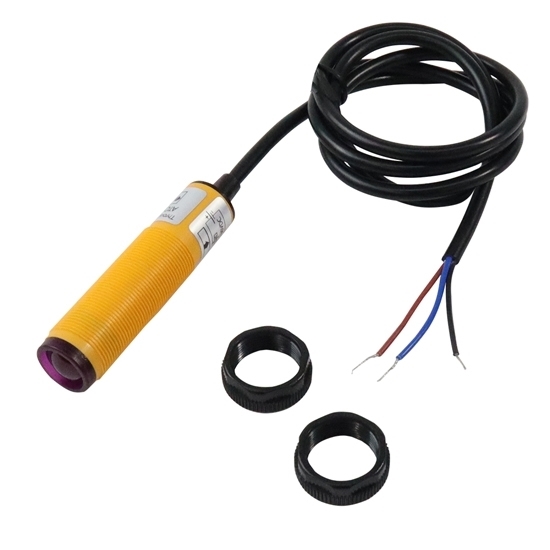

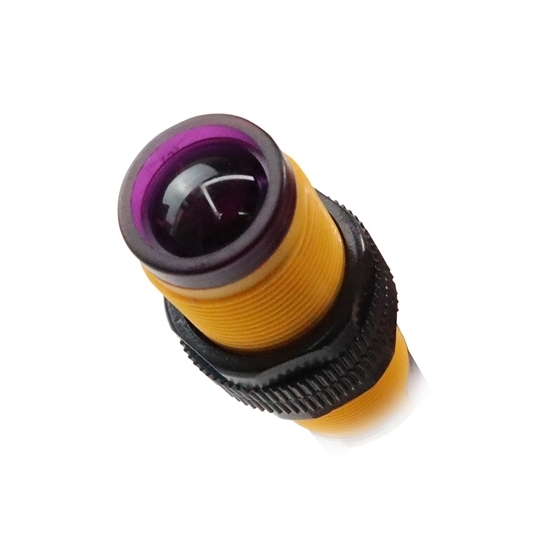

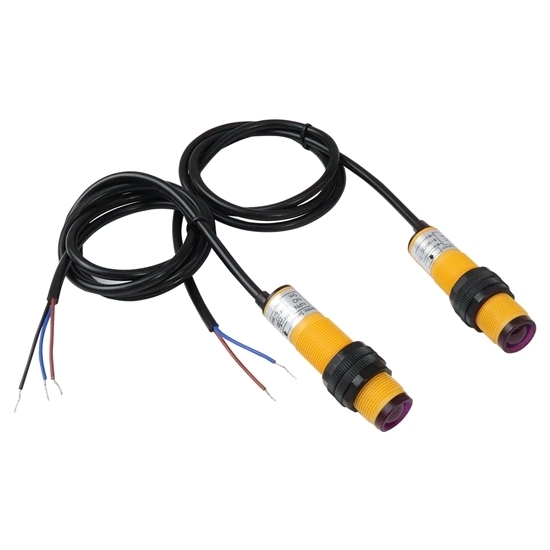

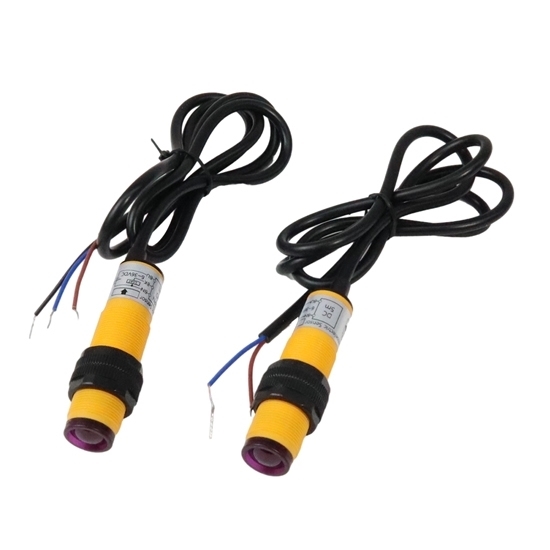

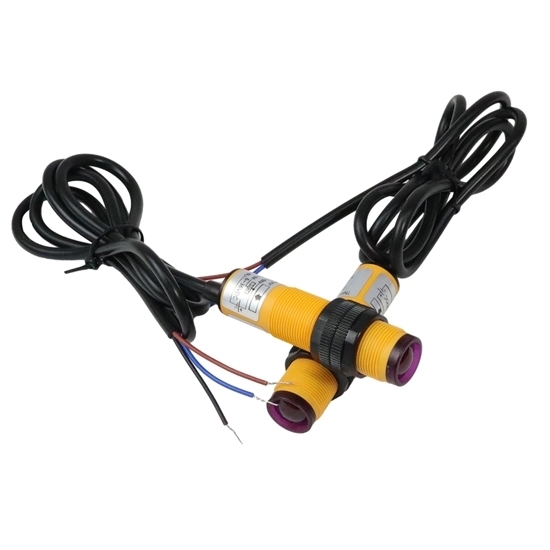

Photoelectric Switch Sensor, M18, DC 12V-24V

0 reviews • Write a review

from

$18.99

Ex Tax: $18.99

Stock: In Stock
Model: RDDLZ-PHOS-TBM18
Weight: 1.00
SKU: RDDLZ-PHOS-TBM18

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Through beam photoelectric sensor with reverse power protection, short circuit protection, current overload protection, can be directly connected with PLC.

Application: Through beam photoelectric sensors are used in industrial environments for tasks such as object detection on conveyors, material handling, packaging, automatic doors, liquid level sensing, printing and label detection, assembly line automation, vehicle detection, security systems and robotics. These photo electric switches use infrared light beams and are valued for their reliability and adaptability in different industrial processes.

Specification

Type	Round type
Dimension	M18*1
DC type	NPN, NO
Detection range	5m±10%
Detection target	Opaque object
Detection range regulation	Fixed
Response time	1ms
Connection delay	1.5ms
Light source	Infrared light 660nm
Power supply	DC type: DC 12-24V (6-36V)
Withstand voltage	AC1000V 50/60Hz 1min between charging part and housing
Voltage influence	Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current	N/P type: ≤20mA, A type: ≤1.7mA
Control output	N/P type: ≤300mA, A type: ≤400mA, J type: ≤2A (contact service life: 0.1 million times)
Loop protection	N/P/D type: reversal connection protection, surge absorption, load short-circuit protection, A type: surge absorption
Ambient temperature & humidity	Operation temperature/storage temperature: -30~65℃ (no freeze, no dew); Operation humidity/storage humidity: 35~95%RH
Temperature influence	Temperature range -30~65℃, at +23℃, ±15% detection distance; Temperature range -25~60℃, at +23℃, ±10% detection distance
Insulation impedance	≥50MΩ (DC500 megameter) between charging part and housing
Material	Housing: Nickel plated brass (ABS), Detection surface (lens): PMMA
Protection class	IP67
Cable length	0.9~1.2m

Wiring Diagram

Tips: How to choose the right photoelectric sensor for my application?

There are several key factors to consider when choosing the right photoelectric sensor:

Sensing distance: Determine the distance between the photoelectric sensor and the object to be detected. Choose a sensor with a sensing range that can easily cover this distance.
Environment: Evaluate the environmental conditions in which the photoelectric sensor will be installed. Factors such as ambient light, dust, humidity, and temperature can affect sensor performance. Choose a sensor with the appropriate environmental rating for your application (such as an IP rating for dust and water resistance).
Output type: Decide whether you need a sensor with a digital (on/off) output or an analog output. Digital sensors provide a simple indication of the presence of an object, while analog photoelectric sensors provide more detailed information about the object's distance or reflectivity.
Response time: Consider how quickly an object moves through the photo sensor detection area and the response time required for your application.
Mounting options: Determine how you plan to mount the photoelectric sensor, such as through-beam, retro-reflective, or diffuse. Depending on your application setup, different installation options provide varying levels of simplicity and flexibility.
