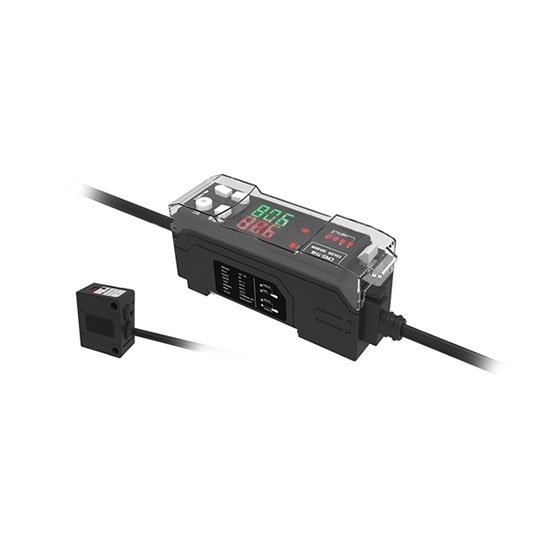

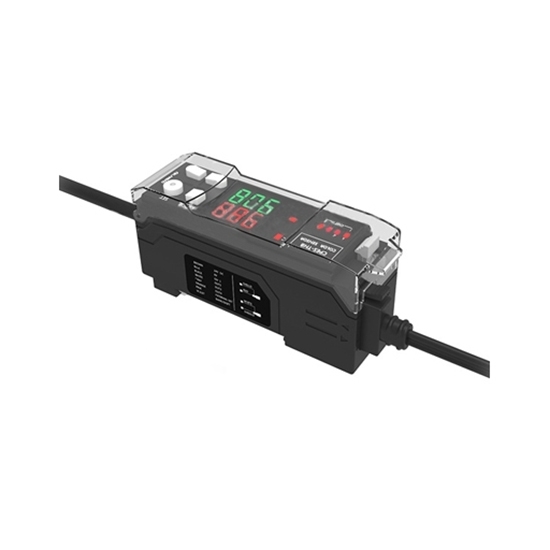

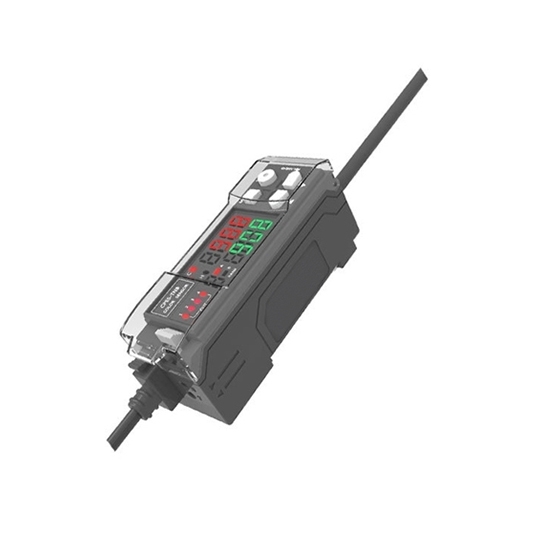

Color Recognition Sensor, NPN/PNP Output

0 reviews • Write a review

from

$735.62

Ex Tax: $735.62

Stock: In Stock
Model: RDDLZ-PS-CPES
Weight: 1.00
SKU: RDDLZ-PS-CPES

Available Options

Accessories

Output Mode

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Color recognition sensor, NPN/PNP Output brings you accurate color judgment, using red/green/blue LED light source, detection range up to 11~20mm, the smallest spot is only 1mm.With RDDLZ-CPES-C09 detector head, it has high resistance to light interference, and can still be stable to recognize the color under sunlight or incandescent lamp.

Specification

Model	RDDLZ-CPES-TNB	RDDLZ-CPES-TPB
Output Mode	NPN	PNP
	Open collector * 4 channels, 40VDC max (30VDC)
	1 output to 100mA, total of 4 outputs to 200mA, residual voltage: 1V max.
Response Time	200μs (HIGH SPEED)/1ms (FINE)/4ms (TURBO)/8ms (SUPER)
Protection Circuit	Short circuit protection, reverse polarity protection, Zener protection
External Calibration Input	Input time: ≥20ms
External Switching Input	Input time: ≥20ms (C/C+/I Mode)
External Offset Input (Super I Mode)	Input time: ≥20ms (Super I Mode)
Timer Function	Timer OFF/ON-delay/ON-delay/single-shot, Timer time: adjustable from 1 to 1,000ms (for each domain separately)
Supply Voltage	24VDC, Ripple (P-P): <10%
Current Consumption	Normal mode: 1.5W (≤62.5mA), Eco mode: 1W (≤42mA)
Ambient Temperature	-10°C~55°C (no frost condensation)
Vibration Resistance Characteristics	10~55Hz, double amplitude 1.5mm (2 hours each in X, Y, Z direction)
Material	Housing, cover: PC
Weight	Approx. 150g (with 2m cable)

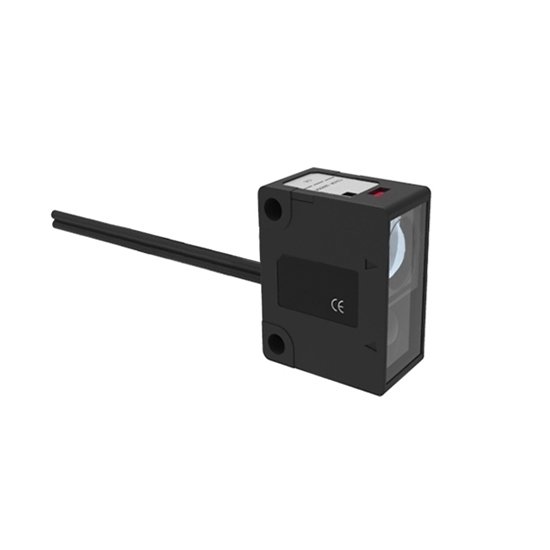

Detector Head Matching
Model	RDDLZ-CPES-C09
Detection Range	11~20mm
Minimum Spot Diameter	1mm@16mm
Light Source Type	Composite LED: Red/Green/Blue (Light source wavelength: 665nm/520nm/465nm)
Minimum Bend Radius	R25mm
Ambient Light Resistance	Incandescent: 1,000lux max; Daylight: 20,000lux max
Ambient Temperature	-10°C~55°C (no frost)
Vibration Resistant	10~55Hz, double amplitude 1.5mm (2 hours each in X, Y, Z directions)
Protection Class	IP40
Material	Housing: PC; Lens cap: Polyaryletherketone
Weight	Approx. 40g (contains 2m cable)

Note: Color recognition sensors should be used in conjunction with the detector head.

Dimension (unit: mm)

Detector Head Dimension (unit: mm)

Wiring Diagram

Tips: Color recognition sensor features

Capable of microchromatic identification, can detect nearly 3000 kinds of colors.
Simple sensitivity adjustment, intelligent, digital settings, equipped with a small volume of high-power special detection head.
8-channel or 4-channel detection, a variety of color detection, the function of a generation of eight, reducing production costs.
A variety of detection modes suitable for a variety of different application requirements.
