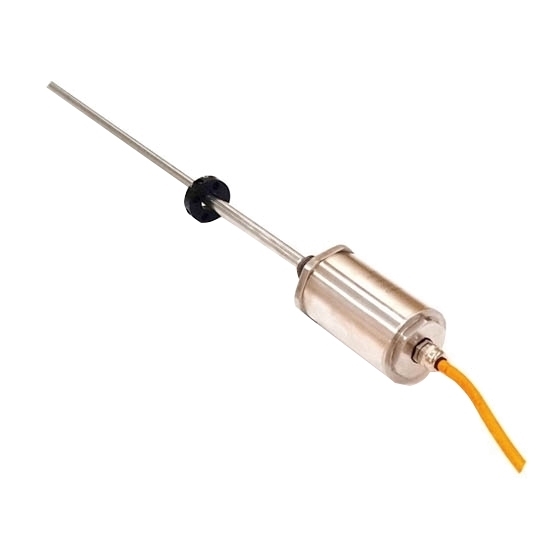

120mm Magnetostrictive Linear Displacement Sensor

0 reviews • Write a review

from

$929.86

Ex Tax: $929.86

Stock: In Stock
Model: RDDLZ-MSD-0120
Weight: 1.00
SKU: RDDLZ-MSD-0120

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Magnetostrictive linear displacement sensor with measuring range 120mm is used for the machinery position preset and feedback, such as the wood machinery position. Magnetostrictive sensors also can be used in most industrial automation systems.

Specification:

Basics	Model	RDDLZ-MSD-0120
	Measuring range	0~120 mm
	Shipping weight	1.1 kg
	Length	319.3 mm
	Diameter	51 mm
Technical parameters	Linearity	≤0.03%FS
	Repeatability	≤0.003%FS
	Resolution ratio	≤0.001%FS
	Hysteresis	≤0.001%FS
	Working Voltage	24V /12V DC
	Working current	Voltage /digital output type≤16mA; Current output type≤35mA
	Output method	0~5V / 0~10V / 4~20mA / 0-20mA RS485 binary digital signal / SSI gray code signal
	Product type	Normal type; Explosion-proof type; Anti-corrosion type
	Measuring rod material	0Cr18Ni9 (304) or 316L stainless steel (secial custom-made)
	Measuring rod diameter	Ф10mm
	Electronic bin material	1Cr18Ni9 (304)
		304 and PTFE casing outside (Anti-corrosion type, special custom-made)
		1Cr18Ni9Ti and protection cover outside (Anti-corrosion type, special custom-made)
	Connecting screw thread	M18×1.5; M20×1.5; 3/4-16UNF
	Type of lead wire	PVC shielded cable; aviation plug (not applicable to explosion-proof type)
	Measuring rod pressure	40MPa, 70MPa (Explosion-proof type)
	Temperature	T1: 0~+ 70℃, T2: -25~+80℃, T3: -40~+120℃
	Buffer area	Front-end of buffer 50.8mm (electronic bin), the end of the buffer 63.5mm (the buffer area can be custom-made)
	Vibration	100g, IEC standards 68-2-715g /10-2000Hz IEC standards 68-2-6
	Protection Class	IP67
	Explosion-proof level	Explosion-proof type: EXd II BT5

Installation diagram (unit: mm):
1. PG7 connection

2. Explosion-proof connection

3. External installation

Tips: What is the repeated accuracy, nonlinearity degree and resolution ratio of magnetostrictive sensor?
Repeated accuracy: Indicating the difference value output by the sensor if measuring along the stroke and when the magnet reaches the same location repeatedly along the same direction.
Nonlinearity degree: Along the measuring stroke of the sensor, there is difference between the positon display value and true value by the position magnet. In magnetostrictive displacement sensor, such change is caused by the nonlinearity of signal transmission of waveguide medium. Nonlinearity is usually presented by the percentage of absolute error or effective stroke.
Resolution ratio: The displacement represented by the last digit of measurement output value of magnetostrictive sensor.
