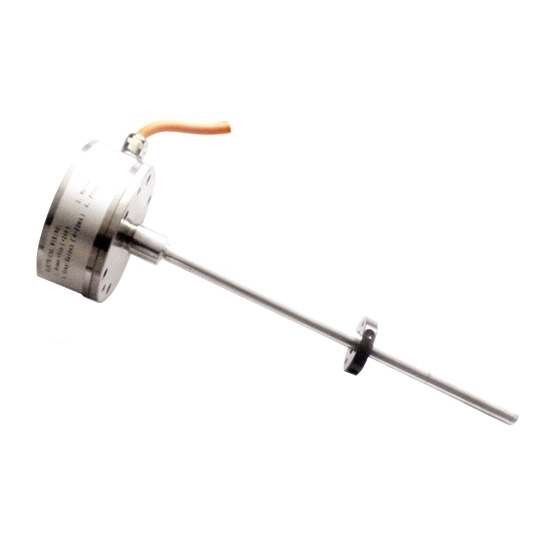

1000mm Magnetostrictive Displacement Sensor For Hydraulic Cylinder

0 reviews • Write a review

from

$979.86

Ex Tax: $979.86

Stock: In Stock
Model: RDDLZ-MSD-WA1000
Weight: 1.00
SKU: RDDLZ-MSD-WA1000

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Magnetostrictive sensors have effective travel 50mm-5000mm. The length of electronic bin is 34mm, the length of the buffer area both ends can be defined by the customer. Magnetostrictive displacement sensors can be widely used in mobile machinery, power machinery, construction machinery, etc.

Specification:

Basics	Model	RDDLZ-MSD-WA1000
	Measuring range	0~1000 mm
	Shipping weight	5.5 kg
	Length	1148.3 mm
	Width	97 mm
Technical parameters	Linearity	≤0.03%FS (minimum±50μm)
	Repeatability	≤0. 001%FS
	Working Voltage	24VDC±10%
	Working current	Voltage /digital output type≤16mA; Current output type≤35mA
	Output method	0-5V / 0-10v / 4-20mA
	Temperature	- 40℃～+85℃
	Measuring rod material	0Cr18Ni9 (304) or 316L stainless steel (special custom-made)
	Electronic bin material	304 or 316L stainless steel (special custom-made)
	Type of lead wire	PG7 connection (waterproof joint); Aviation plug
	Protection Class	IP68 (waterproof joint), IP67 (aviation plug)
	Installation method	Six M6X16
	effective travel in this series (customizable)	50-5000mm

Installation diagram (unit: mm):
1. PG7 connection

2. Aviation plug connection

Tips: Magnetostrictive sensors apply in hydraulic system of wind turbine generator system
In hydraulic system of wind turbine generator system, linear displacement sensor plays an important role in measuring hydraulic oil cylinder piston stroke, while magnetostrictive displacement sensor becomes the best among all stroke measuring displacement sensors in different industry, relying on its measuring accuracy, reliability, environment adaptation etc. Magnetostrictive linear displacement sensors are widely used in wind power generation field.
