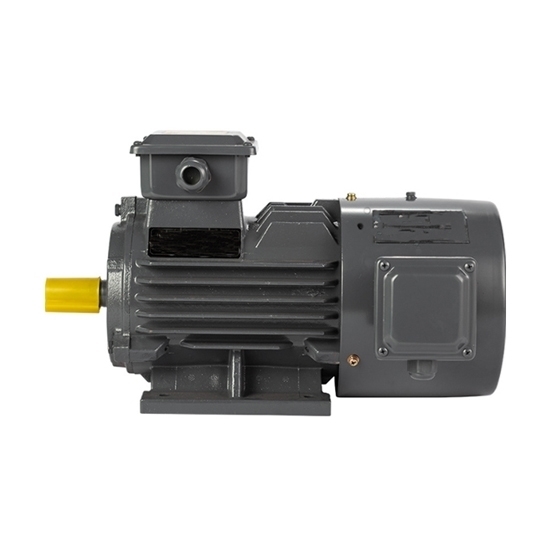

2hp (1.5kW) Variable Speed Motor, 3 Phase, 2P/ 4P/ 6P

0 reviews • Write a review

from

$590.15

Ex Tax: $590.15

Stock: In Stock
Model: RDDLZ-VSM-90
Weight: 1.00
SKU: RDDLZ-VSM-90

Available Options

Short Description

Number of Poles

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Lower cost adjustable speed electric motor with rated current 3.5A/ 3.8A/ 4.2A, constant torque frequency conversion range 3-50Hz, F grade insulation, IP55 protection grade. The adjustable speed electric motor is widely used in places that require energy-saving continuous operation and frequent work, such as fans, reducers, water pumps, vacuum pumps, etc.

Specification

Model	RDDLZ-VSM-90S	RDDLZ-VSM-90L	RDDLZ-VSM-100L
Numbers of pole	2P	4P	6P
Rated current	3.5A	3.8A	4.2A
Rated torque	4.8Nm	9.5Nm	14.3Nm
Locked-rotor torque/ rated torque	2.2 Tst/ Tn	2 Tst/ Tn	1.9 Tst/ Tn
Minimum torque/ rated torque	1.5 Tmin/ Tn	1.6 Tmin/ Tn	2.8 Tmin/ Tn
Weight	29kg	36kg	39kg
Constant power frequency conversion range	50-60Hz	50-100Hz
Rated power	2hp (1.5kW)
Mounting types	B3
Rated voltage	380V (380V-480V can be customized)
Fan voltage	380V
Constant torque frequency conversion range	3-50Hz
Locked-rotor current/ rated current	9 Ist/ In
Maximum torque/ rated torque	2.8 Tmax/ Tn
Certificate	CE
Warranty	12 months

Dimension

Frame size	Mounting dimensions (mm)									Overall dimensions (mm)
Frame size	A	B	C	D	E	F	G	H	K	AB	AC	AD	HD	L
90S	140	100	56	56	50	8	20	90	10	180	195	160	195	385
90L	140	125	56	56	50	8	20	90	10	180	195	160	195	410
100L	160	140	63	63	60	8	24	100	12	205	215	180	245	465

Details

Tips: Technical Characteristics of Variable Speed Motor.

1. High efficiency
Reach the second level of the European CEMEP-EU efficiency class motor standard.
2. Dual bandwidth voltage
The voltage range is 220V~690V, suitable for 50Hz and 60Hz power supplies.
3. Low noise
By optimizing electromagnetic design, ventilation conditions, structural dimensions and other technologies, the noise of M2JA series motors is lower.
4. High bearing load capacity
The motor uses deep groove ball bearings, which has a long life. The 80-132 center height motor is permanently lubricated, and 160-355 is equipped with a refueling device.
5. Good reliability
The motor is a fully enclosed air-cooled structure, with a protection level of IP55, and the materials and processes meet environmental requirements. The motor has high mechanical strength, sturdiness and durability, and strong anti-rust and anti-corrosion performance. Winding reliability is good, using F-level insulation structure, and B-level assessment. And can add PTC thermistor or thermal switch according to user needs.
