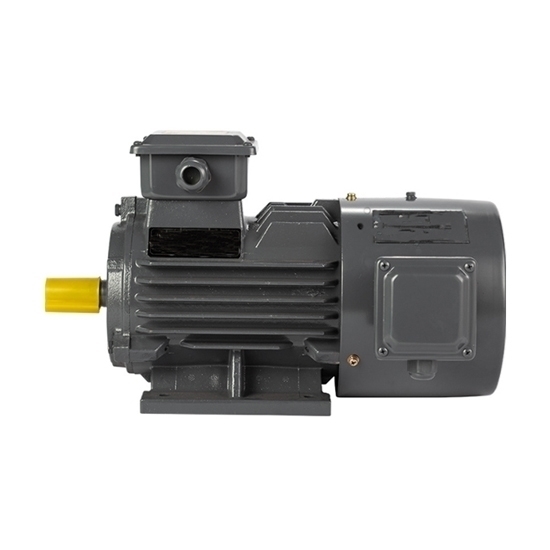

15hp (11kW) Variable Speed Motor, 3 Phase, 2P/ 4P/ 6P
from
$3,091.15
Ex Tax: $3,091.15
- Stock: In Stock
- Model: RDDLZ-VSM-160
- Weight: 1.00
- SKU: RDDLZ-VSM-160
Available Options
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Cheap variable speed electric motor for sale, 2P/ 4P/ 6P for selection. Adjustable speed electric motor with rated current 21.4A/ 23A/ 24.5A, constant power frequency conversion range 50-60Hz/ 50-100Hz.
Specification
Model | RDDLZ-VSM-160M1 | RDDLZ-VSM-160M | RDDLZ-VSM-160L |
Numbers of pole | 2P | 4P | 6P |
Rated current | 21.4A | 23A | 24.5A |
Rated torque | 35Nm | 70Nm | 105Nm |
Locked-rotor torque/ rated torque | 2.2 Tst/ Tn | 2 Tst/ Tn | 1.9 Tst/ Tn |
Minimum torque/ rated torque | 1.2 Tmin/ Tn | 1.4 Tmin/ Tn | 1.2 Tmin/ Tn |
Weight | 165kg | 175kg | 85kg |
Constant power frequency conversion range | 50-60Hz | 50-100Hz | |
Rated power | 15hp (11kW) | ||
Mounting types | B3 | ||
Rated voltage | 380V (380V-480V can be customized) | ||
Fan voltage | 380V | ||
Constant torque frequency conversion range | 3-50Hz | ||
Locked-rotor current/ rated current | 9 Ist/ In | ||
Maximum torque/ rated torque | 2.8 Tmax/ Tn | ||
Certificate | CE | ||
Warranty | 12 months |
Dimension
Frame size | Mounting dimensions (mm) | Overall dimensions (mm) | ||||||||||||
A | B | C | D | E | F | G | H | K | AB | AC | AD | HD | L | |
160M | 254 | 210 | 108 | 108 | 110 | 12 | 37 | 160 | 15 | 330 | 355 | 265 | 385 | 665 |
160L | 254 | 254 | 108 | 108 | 110 | 12 | 37 | 160 | 15 | 330 | 355 | 265 | 385 | 710 |
Details
Tips: Advantages of Variable Speed Motor.
1. With start-up function.
2. The electromagnetic design reduces the resistance of the stator and rotor.
3. Adapt to frequent speed changes under different working conditions.
4. Energy saving to a certain extent.
