Step up or step down isolation transformer is manufactured direct sale and fully compliant with reduced low voltage regulations, is a is a non-ventilated transformer rated for hazardous locations as well as harsh industrial environments.

75 kVA Isolation Transformer Features

• 3-phase unit with 75 kVA power rating.
• Primary voltage of 480V AC on the primary side and secondary voltage of 230V AC on the secondary side.
• enclosure is IP 24 protection grade.
• Better protection, high quality workmanship.

Specifications

Note:

Transformer can only convert voltage and CANNOT convert frequency.
Transformer CANNOT convert single phase voltage to 3 phase voltage.
Input/output voltage, power rating and whether with shell of all transformers, can be customized according to clients' requirements.

3 Phase Isolation Transformer Schematic Diagram

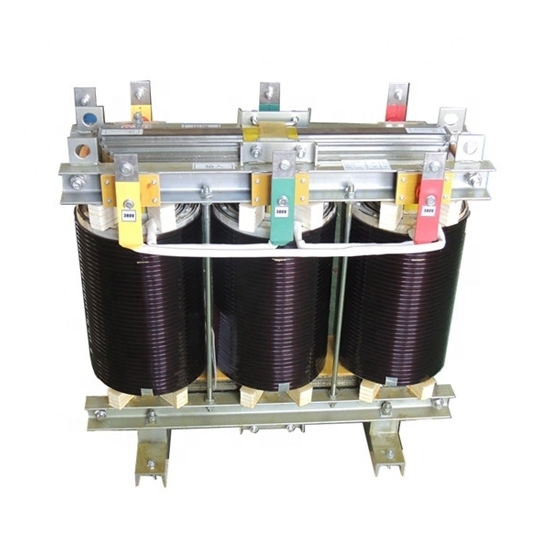

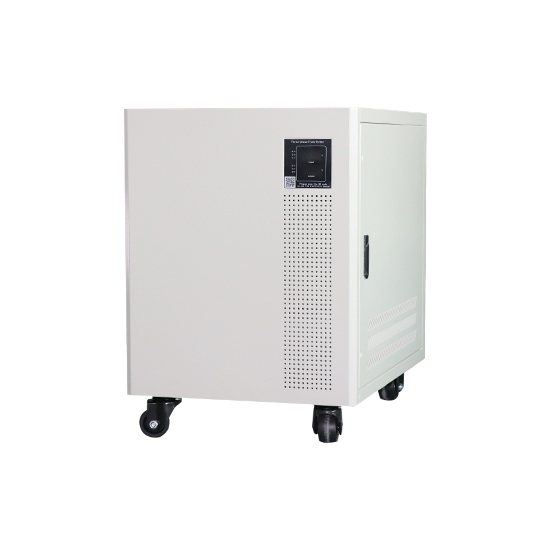

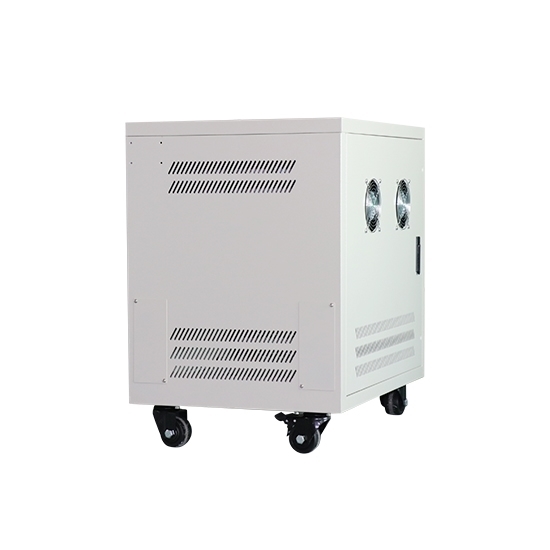

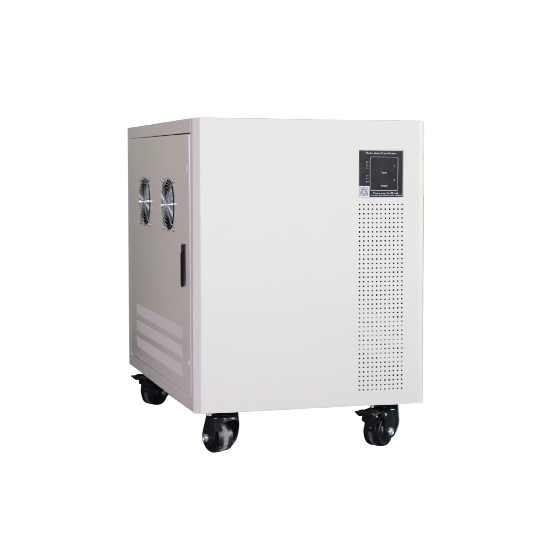

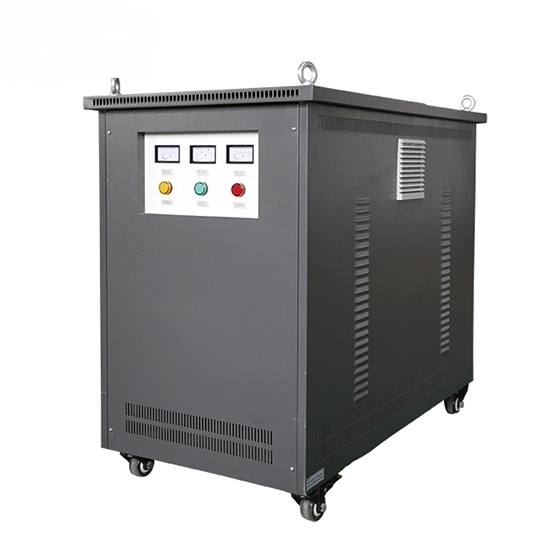

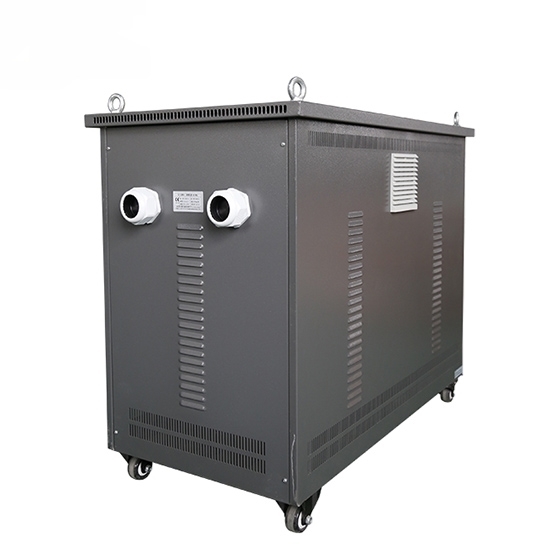

3 Phase Isolation Transformer Details

75 kVA Isolation Transformer Installation Dimension

Tips: Functions of RDDLZ 3 phase isolation transformer

The main function of three phase isolation transformer on RDDLZ.com is to fully insulate primary and secondary electricity and circuit. In addition, its iron core has great ability of high-frequency clutter rejection with the features of high-frequency and great loss. Isolation transformer commonly known as safety transformer is usually used to isolate high-frequency clutter from entering control loop.
Isolation transformer is designed for personal safety in the use, maintenance and commissioning of certain electrical appliance. Taken fixing a color TV as example, the power supply of the color TV is directly rectified into machine, so the chassis of machine could be charged. If a maintenance man cursorily touches this part circuit, he will get an electric shock that endangers his personal safety. In the process of inspection and testing, if the connection between instrument grounding and chassis may cause power supply short-circuited, resulting in the damage to transistors, integrated circuits and test equipment inside machine. Therefore, 3 phase isolation transformer should be used for the maintenance of certain household appliances.
