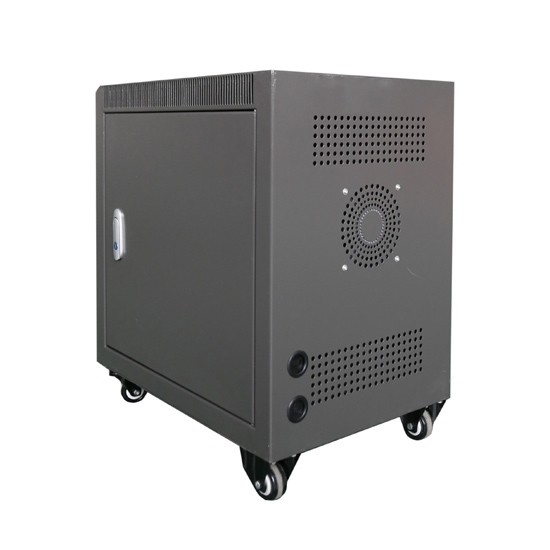

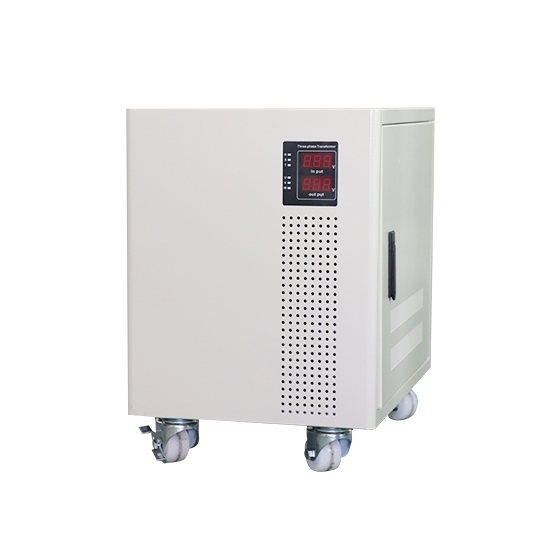

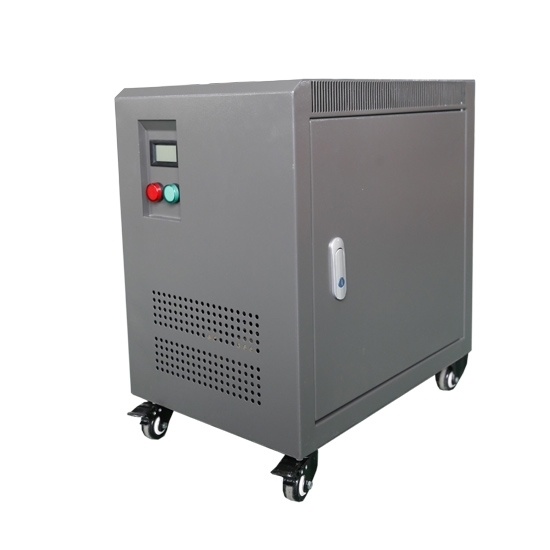

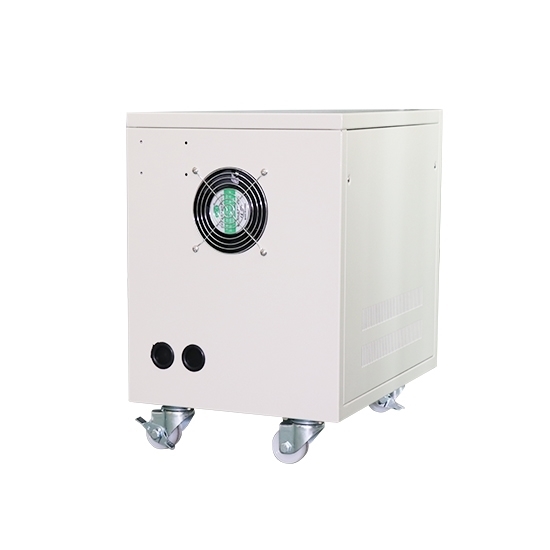

10 KVA Isolation Transformer, 3 Phase, 400 Volt To 240 Volt

0 reviews • Write a review

from

$2,635.71

Ex Tax: $2,635.71

Stock: In Stock
Model: RDDLZ-T-SG10KVA
Weight: 1.00
SKU: RDDLZ-T-SG10KVA

Available Options

Winding Material

Primary Voltage (AC)

Transformer Type

With Movable Wheels

Secondary Voltage (AC)

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

10 kVA dry type isolation transformer step down 3 phase voltage 400V to 3 phase 240V, step up 240V to 400V version is available. It is designed for use in control circuits and general applications such as mechanical and electronic equipment, precision machine tool, CNC machine tool, lighting, etc.

10 kVA Isolation Transformer Specifications

Basics	Model	RDDLZ-SG10KVA
	Phase	3 phase
	Capacity	10 kVA
	Weight of Aluminium Wire Transformer	Open type: 75kg Protected type: 96kg
	Weight of Copper Wire Transformer	Open type: 78kg Protected type: 98kg
Technical Parameters	Primary Voltage	400V (Optional: 120V/ 190V/ 208V/ 220V/ 230V/ 240V/ 380V/ 400V/ 415V/ 480V)
	Secondary Voltage	240V (Optional: 120V/ 190V/ 208V/ 220V/ 230V/ 240V/ 380V/ 400V/ 415V/ 480V)
	Frequency	50Hz / 60 Hz
	Winding Material	Aluminium/Copper wire (Optional)
	Work Efficiency	≥95%
	Insulation Resistance	≥50 MΩ
	Electrical Strength	3000V AC/1 min
	Noise	<35-65dB (1 meter)
	Insulation Grade	H level
	Wiring Mode	Dyn11
	Cooling Mode	Dry type air cooling
	Overload Capacity	Allow more than 1.2 times rated load to work for up to 4 hours
	Enclosure Protection Grade	IP 24
	Certificate	CE, ISO
	Warranty	12 months
Working Environment	Temperature	-15℃~+40℃
	Humidity	≤90%RH, without condensation
	Altitude	<1000m, non corrosive gas and conductive dust

Note:

Transformer can only convert voltage and CANNOT convert frequency.
Transformer CANNOT convert single phase voltage to 3 phase voltage.
Input/output voltage, power rating and whether with shell of all transformers, can be customized according to clients' requirements.

3 Phase Isolation Transformer Schematic Diagram

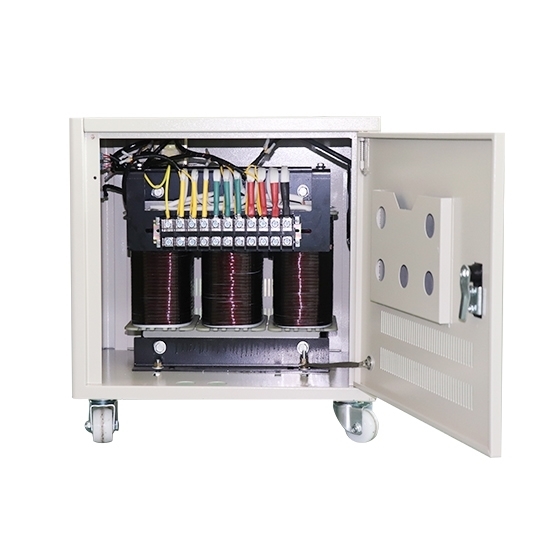

3 Phase Isolation Transformer Details

10 kVA Isolation Transformer Installation Dimension

Aluminium Wire Transformer Size				Copper Wire Transformer Size
Open type: abc=380240380mm				Open type: abc=380240380mm
Mouting size: de=260150mm				Mouting size: de=260150mm
Protected type: ABC=380530560mm				Protected type: ABC=380530560mm

Tips: What is a 10 kVA isolation transformer?

10 kVA isolation transformer is a step up & step down 3 phase isolation transformer whose input windings and output windings have electrical isolation, it can avoid accidentally contact with the charged body at the same time. The transformer can isolate the respective current of primary and secondary windings. Its principle is the same with ordinary dry-type transformer, also use electromagnetic induction principle to isolate primary power circuit and secondary circuit ground floating to ensure electrical safety. RDDLZ isolation transformers are widely used for control power of general circuit, power of safety lighting and indicator light in the electronics industry, mining enterprises and machine equipment.
