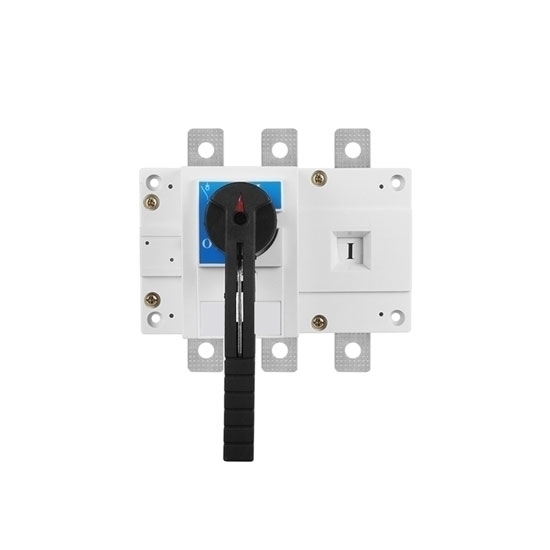

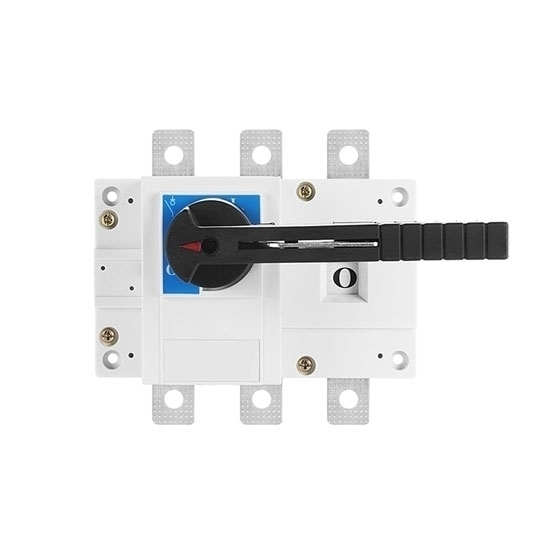

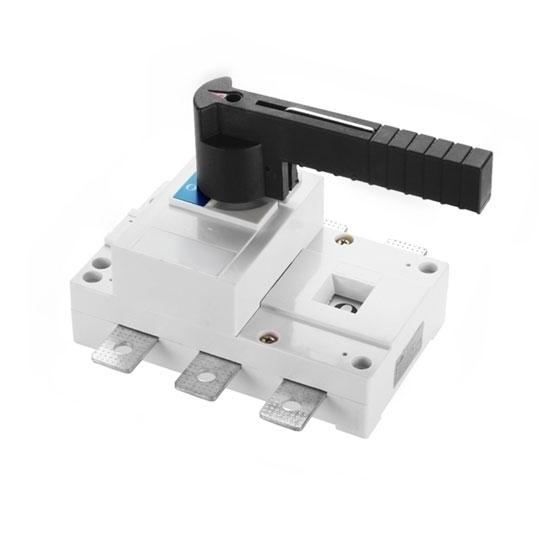

500 Amps Isolator Switch, 3 Pole/ 4 Pole

0 reviews • Write a review

from

$219.63

Ex Tax: $219.63

Stock: In Stock
Model: RDDLZ-IS-HGL500A
Weight: 1.00
SKU: RDDLZ-IS-HGL500A

Available Options

Number of Poles

Load Operation

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

500A load break isolator switch for sale, RDDLZ provide you with the highest quality, lowest price, free shipping, 3 pole or 4 pole for choose from, dielectric strength 1890V, manufacturer direct sale.

Isolator Switch Specifications

Basics	Model			RDDLZHGL-500A
	Pole			3 Pole/4 Pole
	Weight		3 Pole	4.7 kg
			4 Pole	6 kg
Technical Parameters	Rated current			500A
	Rated insulation voltage Ui			690V
	Dielectric strength			1890V
	Rated surge-resistant voltage Uimp kV (installed category IV)			6
	Rated working current le	380V	AC-21	400A
			AC-22	400A
			AC-23	340A
		660V	AC-21	400A
			AC-22	315A
			DC-23	125A
		220V	DC-21	400A
			DC-22	400A
			DC-23
		440V	DC-21	400A
			DC-22	400A
			DC-23	400A
	Motor power P (380V) Kw		380V	220 Kw
			660V	185 kW
	Rated short-time withstand current lcw（kA rms)0.1s/ 1.0s			12.6
	Rated breaking capacity Icm (Arms) AC23 380VA			3200
	Rated making capacity Icm (Arms) AC23 380V			4000
	Rated short-current making capacity Icm' (Kapeak value）			25
	Mechanical durability (number of cyclic operation)			800 times without power, 200 times with power, a total of 1000 times.
	Electric durability Ue=660V, Rated current		COSφ=0.95AC21	1700
			COSφ=0.65AC22	100
			COSφ=0.35AC23	500
Working Environment	Moment of operation			1.2 Nm
	Temperature			-5℃~+55℃
	Way of working			Continuously working
	Operating			Handle
	Installation form			Vertical
	Altitude			≤2000m
	Pollution level			3
	Overvoltage level			Ⅲ
	IP level			IP 20

Dimension

Current	A	B	C	D	D1	E	ΦL	J	K	N	P	R	S	U	ΦX	Y	F	H
500A/3P	230	240	179	50	137	115	7	210	140	135	65	32	40	206	11	37	95	20
500A/4P	290	240	179	520	137	114	7	210	140	135	65	32	40	206	11	37	95	20

Load Break Switch Operation Mode

Details

Tips: What causes the contact resistance of the isolating switch to increase?

The reason for the increase in contact resistance is: the repulsive force of the contact between the blade and the knife tip is very large, and the knife edge is not tightly closed, which causes surface oxidation and increases the contact resistance. Secondly, the disconnecting switch will cause arcing during the pulling and closing process, burn the contacts, and increase the contact resistance.
