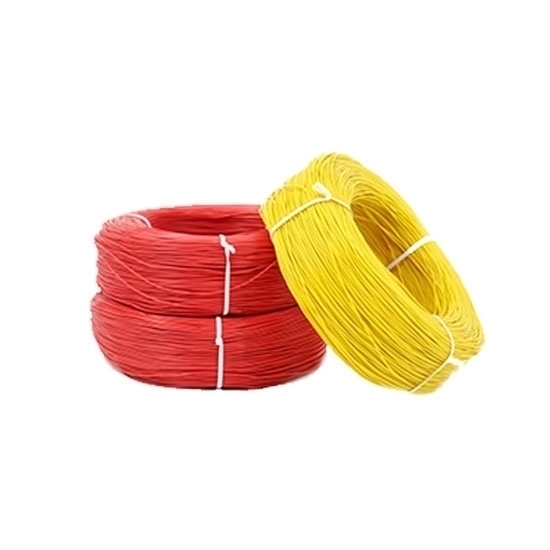

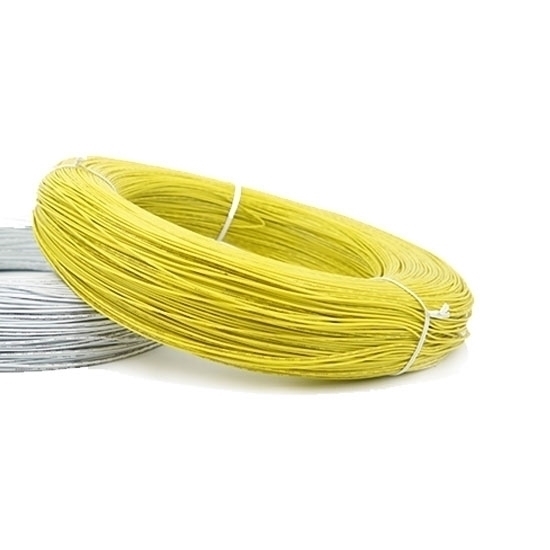

28AWG Hook-Up Wire, UL1007, 300V, 2000 Ft

28AWG Hook-Up Wire, UL1007, 300V, 2000 Ft
28AWG Hook-Up Wire, UL1007, 300V, 2000 Ft
28AWG Hook-Up Wire, UL1007, 300V, 2000 Ft
28AWG Hook-Up Wire, UL1007, 300V, 2000 Ft
28AWG Hook-Up Wire, UL1007, 300V, 2000 Ft
0 reviews • Write a review
from
$69.59
Ex Tax: $69.59
  • Stock: In Stock
  • Model: RDDLZ-UL1007-28
  • Weight: 1.00
  • SKU: RDDLZ-UL1007-28

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Hook up wire provides good electrical connection and PVC insulation keeps wires from abrasion, chemical and solvents. The insulated wire is widely used for industrial, electronics and automotive applications.

Specification

ModelRDDLZ-UL1007-28
UL Style1007
Size28 AWG
Rated Voltage300V
Color (Optional)White, Black, Red, Yellow, Green, Brown, Gray, Blue, Orange, Purple
Rated Temperature80 ℃
ConductorTinned/ Bare Copper
Conductor TypeStranded
Conductor Size (±0.005）NO. 7/ 0.127mm
Conductor Resistance 20℃239.00 Ω/km
Conductor Diameter0.38mm
InsulationPVC
Insulation ThicknessNom.0.40mm
Min.0.33mm
Overall DiameterAverage1.18mm
Tolerance±0.1mm
Package2000 ft/roll
Weight4kg

Details

Tips: Can UL1007 hook-up wire withstand -40℃？

UL1007 electric hook up wire is PVC outer cover for insulation which protects tinned or bare copper conductor from oil, chemistry and solvents. The temperature of PVC material is 0℃ to 80℃, so that it cannot tolerate -40℃, unless it adopts PVC cold-resistant rubber. In addition, the cold-resistant rubber generally needs to be customized.
