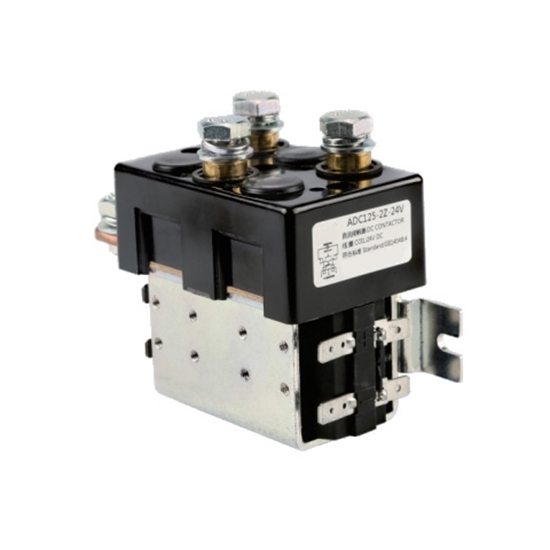

125A DC Reversing Contactor, 2 Pole, 12V/24V/48V

125A DC Reversing Contactor, 2 Pole, 12V/24V/48V
125A DC Reversing Contactor, 2 Pole, 12V/24V/48V
0 reviews • Write a review
from
$132.41
Ex Tax: $132.41
  • Stock: In Stock
  • Model: RDDLZ-DCCON-R125
  • Weight: 1.00
  • SKU: RDDLZ-DCCON-R125

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

RDDLZ ADC125 reversing contactor is used to change the direction of rotation in alternating current motors, start them gently and to monitor their load. It is widely used in auto electric winch, telecommunication equiment, engineering machinery and other electric control system.

Features

  • 125 amps rated load current of contact circuit.
  • 2 pole, DPST-NO, DPST-NC contact form.
  • 12V, 24V, 48V DC coil rated voltage for selection.
  • Main contact voltage drop at 100A, not above 100mV.
  • Mechanical life up to 300 thousand times.

Specifications

BasicsModelRDDLZ-ADC125
Body Size105*53*94 mm
Weight1030 g
Technical ParametersCoil Rated Voltage12V/24V/48V
Rated Load Voltage12~60V DC
Contact Circuit Rated Load Current125 A
Contact Form2NO and 2NC
Starting Current≤4 A
Overload Current≤7 le
Coil Power≤12 W
Main Contact Voltage Drop at 100A Load≤100 mV
The Allowed Range of Coil Voltage±20%
Pull-In Time (N/O Contacts to Open)≤30 ms
Drop-Out Time (N/O Contact to Close)≤20 ms
Insulation Resistance≥50 MΩ
Dielectric Withstanding Voltage50Hz/60Hz 1500VAC/Min
Electric LifeContinuous 20000 times
Mechanical Life300 thousand times
EnvironmentEnvironmental ProtectionIP 50
Operating Temperature-25℃~55℃
Operating Humidity5~95% RH

DC Reversing Contactor Circuit Diagram (Unit: mm)

Installation Diagram

Details

Tips: How to select a DC contactor?

  1. The DC contactor shall be selected in accordance with the type of load current and degree of load, namely whether it's the AC load or DC load, the light load, general load or heavy load.
  2. Rated current of the main contact of a DC contactor should be greater than or equal to the current of load circuit. If the motor controlled by DC contactor starts, brakes or reverses frequently, the rated current of the contactor's main contact shall be generally degraded by one in its application.
  3. Rated voltage of the main contact refers to the rated voltage that the main contact can bear according to the value marked on the label, it doesn't refer to the voltage of sucking coil. When using, the rated voltage of the contactor's main contact should be greater than or equal to the rated voltage of the load.
  4. Selection of operation frequency. Operation frequency refers to the times the contactor connects and disconnects every hour. When the on-off current is large or the on-off frequency is too high, the contact will be seriously overheated, even suffer from fusion welding. In case the operation frequency exceeds the specified value, please select a DC contactor that has a higher level rated current.
  5. Selection of the coil's rated voltage. Rated voltage of the coil may not be necessarily equal to that of the main contact. When the circuit is simple and less appliances are used, please select a 380V or 220V voltage directly. If the circuit is complex and the appliances shall be used for more than 5 hours, a coil with a voltage at 24V, 48V or 110V can be selected.
