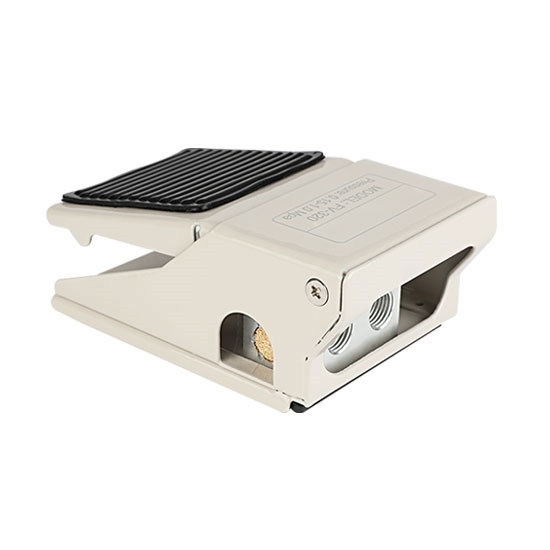

Pneumatic Foot Pedal, 3 Way 2 Position

0 reviews • Write a review

from

$23.39

Ex Tax: $23.39

Stock: In Stock
Model: RDDLZ-PFD-FV320
Weight: 1.00
SKU: RDDLZ-PFD-FV320

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The pneumatic air foot pedal is made of high-quality aluminum alloy, which is resistant to high pressure and does not rust surface polishing treatment, no burrs and not easy to leak, widely used in automobiles, automobiles, and various pneumatic systems.

Specification

Model: RDDLZ-FV320
Working Medium: Air
Action Mode: Foot control direct action
Port Size: PT 1/8
Number of Positions: 3 Way 2 position
Operating Pressure Range: 0~0.8 MPa (0~114 psi)
Pressure Resistance: 1.5 MPa (215 psi)
Working Temperature: -20~70℃
Material: Aluminum alloy
Weight: 490g

Features

Aluminum pedal, surface oxidation, corrosion resistance and oxidation resistance.
Direct-acting design, easy to operate, more stable and reliable, high-quality material, long service life.
The internal thread of the pneumatic foot pedal valve is clear and standard, with good sealing performance, not easy to leak, and without burrs.
Bold spring, good quality and durable, not easy to rust.

3 Way 2 Position Pneumatic Foot Pedal Dimension

Tips: What is a pneumatic foot pedal?

Pneumatic foot pedals are often used in wet environments. Instead of using electricity, the foot pedal is compressed by "blowing" a stream of air through some PVC tubing to an air switch. The activation of the air switch will operate the device to which the switch is connected.

The main reason for using a pneumatic foot pedal is to keep the user away from electricity. In a humid environment, this is extremely important for the safety of the user.
