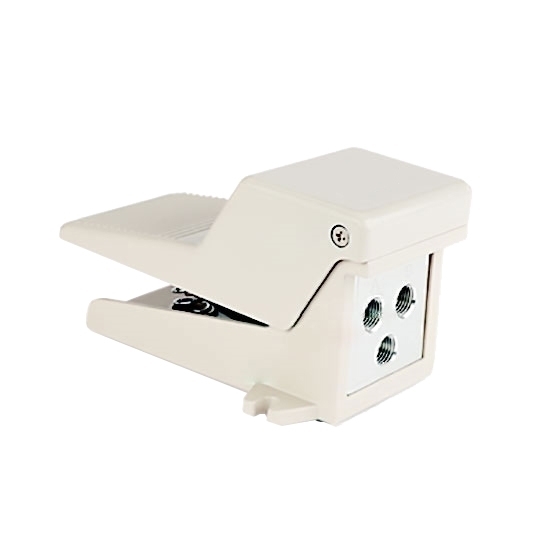

Pneumatic Foot Pedal With Lock, 5 Way 2 Position

0 reviews • Write a review

from

$20.37

Ex Tax: $20.37

Stock: In Stock
Model: RDDLZ-PFD-4F2108L
Weight: 1.00
SKU: RDDLZ-PFD-4F2108L

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

One in two out foot operated pneumatic valve, 5 way 2 position, direct-acting design, the locking mechanism is stable and reliable, and unlocking is light and fast.

Specification

Model: RDDLZ-4F210-08L
Working Medium: Air
Action Mode: Foot control direct action
Port Size: PT 1/4
Number of Positions: 5 Way 2 position
Operating Pressure Range: 0~0.8 MPa (0~114 psi)
Pressure Resistance: 1.5 MPa (215 psi)
Working Temperature: -20~70℃
Material: Aluminum alloy
Weight: 490g

Features

Aluminum pedal, surface oxidation, corrosion resistance and oxidation resistance.
Direct-acting design, easy to operate, more stable and reliable, high-quality material, long service life.
The internal thread of the pneumatic foot pedal valve is clear and standard, with good sealing performance, not easy to leak, and without burrs.
Bold spring, good quality and durable, not easy to rust.

Pneumatic Foot Pedal Dimension

Pneumatic Foot Pedal Detail

Tips: How does the RDDLZ lockable pneumatic foot switch work?

The locking foot valve locks the workpiece in place, when the foot is removed, the pawl rides over the pedal lever and holds it down, and reinsertion of the foot releases the pawl. The spring return version is used to perform repetitive functions such as metering, pressing, punching or drilling, with the valve returning when the foot is removed.
