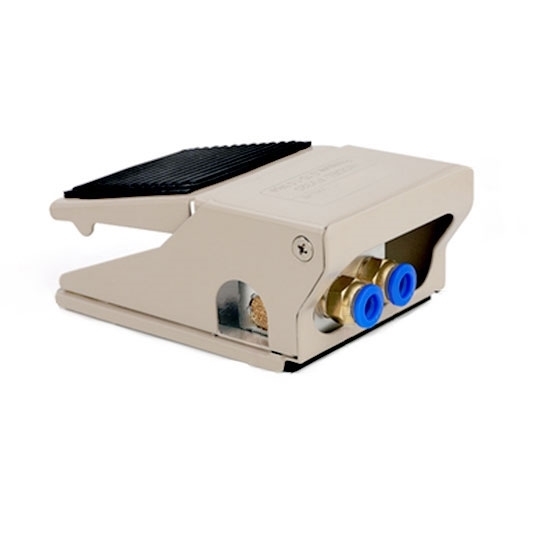

Pneumatic Foot Pedal, 3 Way 2 Position, With Pneumatic Fitting

0 reviews • Write a review

from

$27.97

Ex Tax: $27.97

Stock: In Stock
Model: RDDLZ-PFD-FV3206
Weight: 1.00
SKU: RDDLZ-PFD-FV3206

Available Options

Short Description

Pneumatic Fitting

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

3 Way 2 position pneumatic foot pedal with pneumatic fitting, 6mm, 8mm or 10mm is optional, textured rubber pad to effectively prevent slipping, improve work efficiency.

Specification

Model: RDDLZ-FV3206
Working Medium: Air
Action Mode: Foot control direct action
Port Size: PT 1/8
Number of Positions: 3 Way 2 position
Operating Pressure Range: 0~0.8 MPa (0~114 psi)
Pressure Resistance: 1.5 MPa (215 psi)
Working Temperature: -20~70℃
Material: Aluminum alloy
Weight: 490g

Features

Aluminum pedal, surface oxidation, corrosion resistance and oxidation resistance.
Direct-acting design, easy to operate, more stable and reliable, high-quality material, long service life.
The internal thread of the pneumatic foot pedal valve is clear and standard, with good sealing performance, not easy to leak, and without burrs.
Bold spring, good quality and durable, not easy to rust.

3 Way 2 Position Pneumatic Foot Pedal Dimension

Pneumatic Foot Pedal Details

Tips: Pneumatic foot pedal applications

Operating foot switches are used for applications in a variety of environments. They are particularly suitable for applications in the medical industry. They are easy to clean and easy to use. Pneumatic foot pedals are commonly used for medical bed mobility, OEM applications and various industrial applications.
