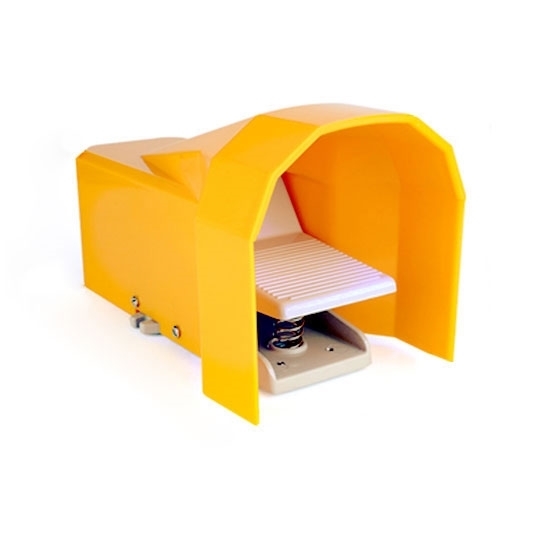

Covered Pneumatic Foot Pedal, 5 Way 2 Position

0 reviews • Write a review

from

$39.37

Ex Tax: $39.37

Stock: In Stock
Model: RDDLZ-PFD-4F2108G
Weight: 1.00
SKU: RDDLZ-PFD-4F2108G

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Covered pneumatic foot pedal port size 1/4 inch, 5 way 2 position, reinforced spring, good resilience performance, no deformation after long-term use.

Specification

Model: RDDLZ-4F210-08G
Working Medium: Air
Action Mode: Foot control direct action
Port Size: PT 1/4
Pneumatic Fitting: 6mm, 8mm, 10mm
Number of Positions: 5 Way 2 position
Operating Pressure Range: 0~0.8 MPa (0~114 psi)
Pressure Resistance: 1.5 MPa (215 psi)
Working Temperature: -20~70℃
Material: Aluminum alloy
Weight: 490g

Features

Aluminum pedal, surface oxidation, corrosion resistance and oxidation resistance.
Direct-acting design, easy to operate, more stable and reliable, high-quality material, long service life.
The internal thread of the pneumatic foot pedal valve is clear and standard, with good sealing performance, not easy to leak, and without burrs.
Bold spring, good quality and durable, not easy to rust.

Covered Pneumatic Foot Pedal Dimension

Covered Pneumatic Foot Pedal Detail

Tips: The internal structure of the foot switch

The foot switch has two sets of contacts, one is normally open and the other is normally closed. When we step down, the normally open point of the foot switch is closed, similar to the start button, which is pressed to close. Normally closed contact, when we step on the foot switch, the normally closed point is disconnected, similar to the stop button, press to disconnect.
