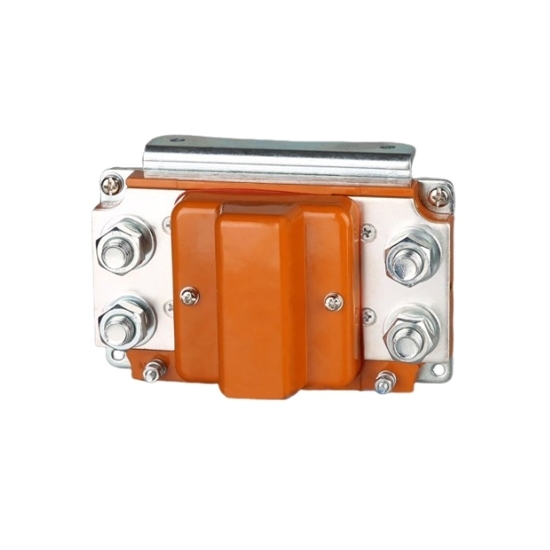

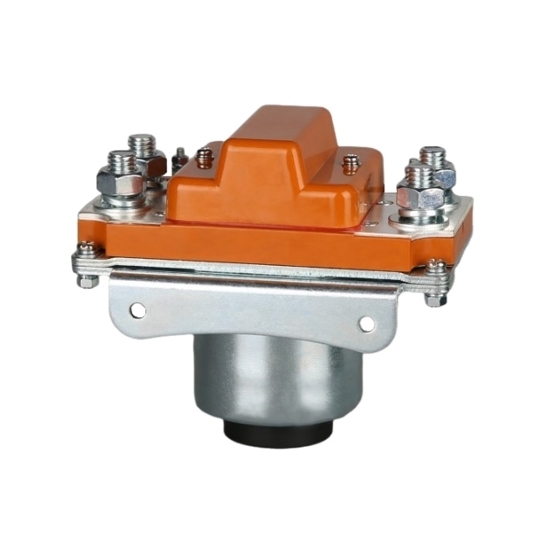

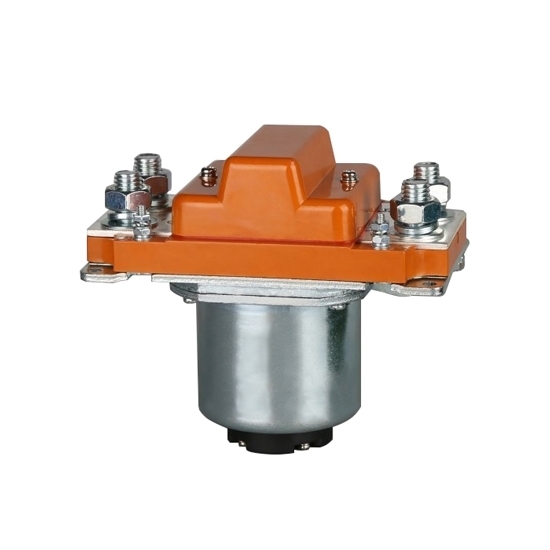

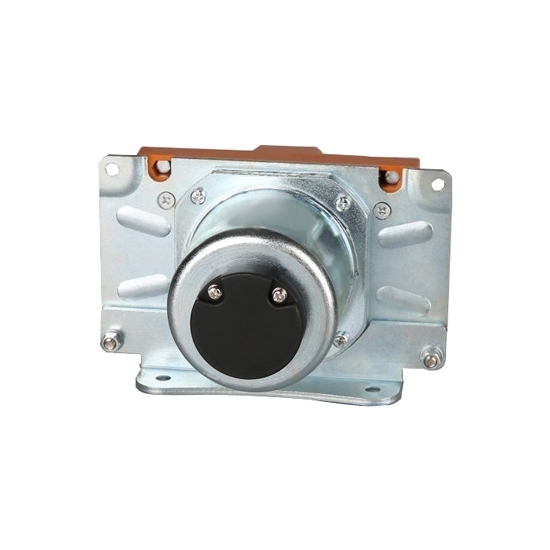

1500A DC Contactor, 12V/24V/48V

0 reviews • Write a review

from

$233.15

Ex Tax: $233.15

Stock: In Stock
Model: RDDLZ-DCCON-C1500
Weight: 1.00
SKU: RDDLZ-DCCON-C1500

Available Options

Coil Rated Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

DC contactor provides high current of 1500A. The 1500A DC contactor has 12V, 24V, 48V and high voltage dc contactor, such has 120V, 150V, 220V. The DC contactor is not only made of carefully selected BMC thermoset material, wear-resistant, damage-free and stable, but also has quality and after-sales guaranteed.

Features

1500A DC contactor has the characteristics of small size, large load capacity, long service life and simple maintenance, and is very popular among users.
1500 amps contactor complies with the requirements of the ministry standards JB2286-78, JB3974-85, YD/585-92, YD/T512-92. It has been tested in the factory and by relevant testing units and meets the requirements of the ministry standards. It has been used by users for many years to satisfy users to the maximum extent. Needed, reliable quality.
Single coil 1500A DC contactor are suitable for electric forklifts, battery trucks, tractors, excavators, brick making machines, cleaning vehicles, automotive air conditioners, communication power supplies, switch control of electronic control circuits of uninterruptible power supplies, electroplating power supplies and other systems.

Specifications

Model	RDDLZ-SZJ1500A
Contact Form	Normally open
Coil Rated Voltage (DC V)	12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V, 150V, 220V
Contact Rated Voltage (DC V)	≤80V
Contact 48V Circuit Rated Load Current (DC-1)	1500A
Main Contact Contact Voltage Drop under 100A Load	≯80mV
Cooling pull-in voltage (V), (20±5)℃	≯70%
Cooling Release Operating Voltage (V), (20±5)℃	≯40%,≮5%
40℃ Coil Operating Voltage Range	0.8-1.2Us
Power-on Action Time	30ms
Power off Release Time	15ms
Maximum Bounce Time of Contact Connection	10ms
Maximum Bounce Time of Contact Disconnection	3ms
Insulation Resistance	20MΩ
Dielectric Strength	50Hz/60Hz 1000VAC 1minute
Maximum Breaking Capacity of Main Contact (Power on for 5ms)	3000A/5ms at 48V/DC
Coil Power Consumption (W)	Start: 140-190, Hold: 9-18
Coil Temperature Rise (K)	≤50
Terminal Temperature Rise (K)	≤65
Electrical Life	10000times
Mechanical Life	200,000 times
Work Specifications	Continuous
Contact Material	Silver alloy
Load Terminal Type	2-M12 screw
Coil Terminal Type	M4 screw
Auxiliary Contact Rated Load (Optional)	2A/48VDC, 5A/24VDC
Testing Agency Certification	CE, FCC, RoHS

Load Characteristic Curve

Installation Dimension Diagram

Wiring Diagram & Coil Temperature Rise Curve Graph

One way is normally open (SPST 1NO)
1 and 2 are contact terminals
A1 and A2 are coil terminals
L1 is the take-off winding L2 is the holding winding

Mechanical Capabilities and Usage Environment

Contact Terminal M8 Tightening Torque (Nm)	≯30 is appropriate
Coil Lead-out M4 Tightening Torque (Nm)	≯1.2 is appropriate
Ambient Temperature	-25~+70℃
Relative Humidity	+20℃ 98%
Vibration Frequency at Fixed Location	3G, 1～50Hz, amplitude 0.5mm
Impact	(60～100) times/min, acceleration ≤4g
Altitude	2000 meters
Installation Direction	Arbitrary
Protection Level	IP40 (equivalent to IEC60947)

Tips: DC contactor wiring method

The DC contactor's coil is connected to the control circuit and is used to control the motor in the circuit part (use small to control large).
The auxiliary contact represents the normally open contact of the contactor, which is opened when not powered and closed after powered on. It is used to control the self-locking of the circuit or be connected in parallel to the start button to achieve continuous operation.
Both ends of the DC contactor'scoil are connected to the control circuit, the normally open contact is connected to the anode, and the normally closed contact is connected to the load.
When the coil of DC contactor is activated, the normally open contact opens, the normally closed contact closes, and the load is energized; when the control circuit is deenergized, the normally open contact closes, the normally closed contact opens, and the load is deenergized.The above information is based on the general wiring method of DC contactors.
Specific operations need to be appropriately adjusted according to the actual equipment model and wiring diagram.
