Safety single phase 110V to 220V step up isolation transformer has 30 kVA capacity, factory price, 50Hz/60Hz frequency, three insulation grades to guarantee the security. Overload capacity allows more than 1.2 times rated load to work for up to 1 hour, which makes the single phase transformer harmless.

Basic Specifications

• Model: RDDLZ-DG30kVA
• Capacity: 30kVA
• Phase: Single phase
• Frequency: 50Hz/60Hz
• Winding Material: Aluminum/Copper wire (Optional)
• Work Efficiency: ≥95%
• Primary Voltage: 110V AC (Optional: 120V/ 208V/ 220V/ 230V/240V)
• Secondary Voltage: 120V AC (Optional: 110V/ 208V/ 220V/ 230V/ 240V)
• Weight: 185 kg

Technical Specifications

• Cooling Mode: Natural or air cooling
• Insulation Resistance: ≥50 MΩ
• Electrical Strength: 2000V AC/1 min
• Noise: ≤35dB (1 meter)
• Insulation Grade: Grade B (130℃), Grade F (155℃), Grade H (180℃)
• Overload Capacity: Allow more than 1.2 times rated load to work for up to 1 hour
• Induced Overvoltage Withstand Test: 125Hz/800V/min
• Impedance Voltage: About 6%
• Total Losses: 10%
• Certification: CE, ISO
• Temperature: -15℃~+45℃
• Enclosure Protection Grade: IP20
• Warranty: 12 months

Features

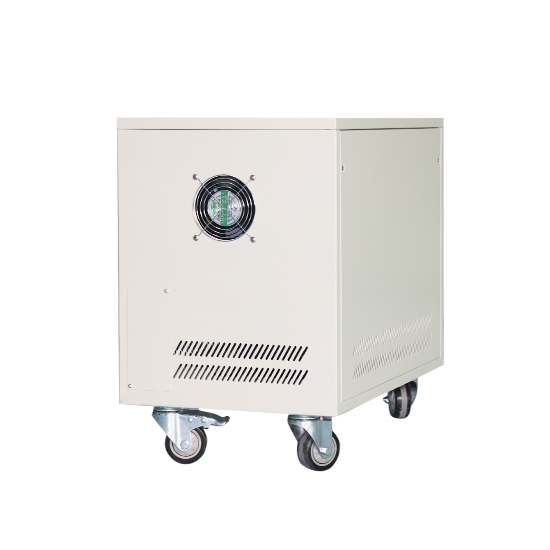

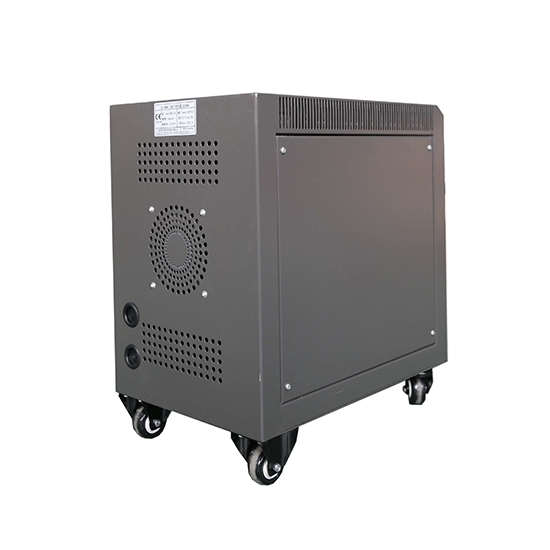

• Heat dissipation holes and fans: The enclosure is a multi-hole design, the back of the transformer installed cooling fan, can be strong and effective heat dissipation, reduce the temperature of the machine, to better protect the internal components.

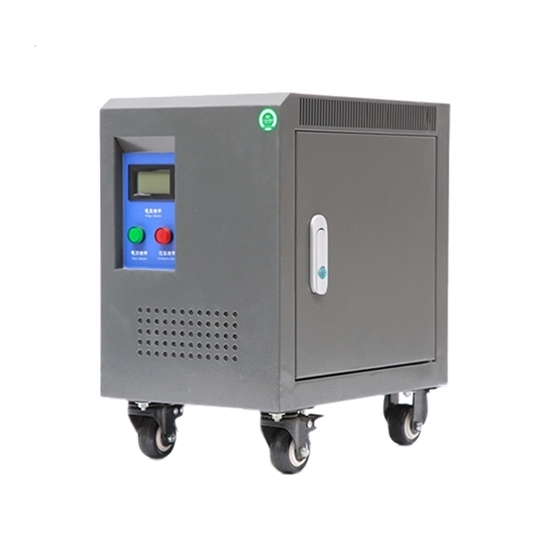

• Two-color indicator: Input and output using LCD digital display meter, equipped with indicators to accurately display the voltage when working state.
• High temperature resistant enameled wire: High temperature resistance up to 180℃, good insulation and not easy to aging, prolong the service life of the machine.
• Oriented silicon steel sheet: Cold rolled oriented silicon steel sheet is used, which has the advantages of good heat dissipation coefficient, low core loss and good magnetization characteristics.
• Long-term continuous work: With a wide range of applicable loads, can withstand transient overload, can work continuously for a long time.

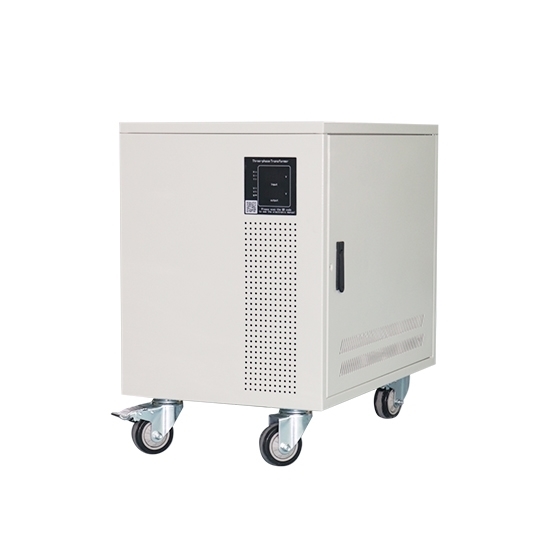

• Universal casters: Isolation transformer with four universal wheels, easy to move, can rotate 360 degrees, more energy-saving when pushing.
• Enclosure: With strong enclosure to effectively prevent dust and protect the internal transformer.

Note:

• Transformer can only convert voltage and CANNOT convert frequency.

• Transformer CANNOT convert single phase to 3 phase voltage.

• Support voltage customization, various specifications customization.

Schematic Diagram

Details

Tips: Why using isolation transformer?

1. Generally, ungrounded systems leads to fewer single-phase electric shocks. Due to that, grounding system should be transformed into ungrounded system by using isolation transformer in some specific situation. For example, if people fix a TV which connected to an isolation transformer, he can operate it at 220V voltage with no trouble in electricity. It is safe!
2. For safety, isolation transformers are needed to supply ungrounded power to industry pick and place equipment, wave soldering machine, reflow controller, etc.
