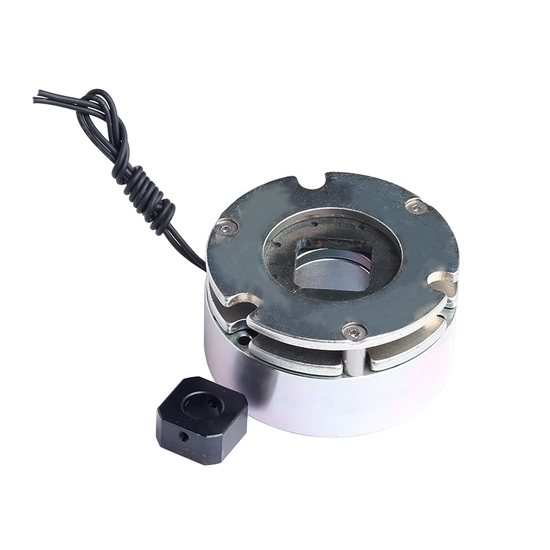

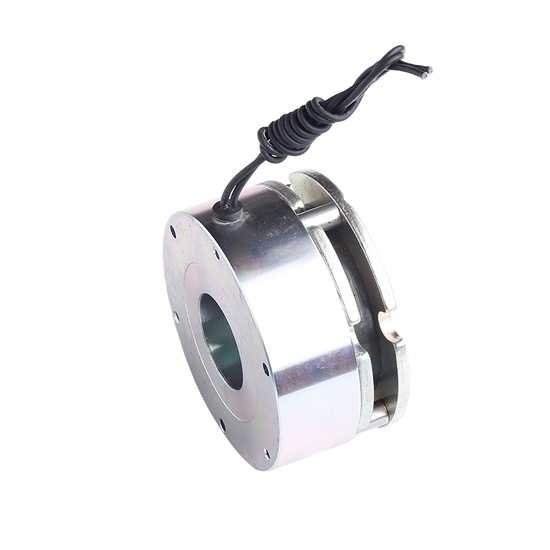

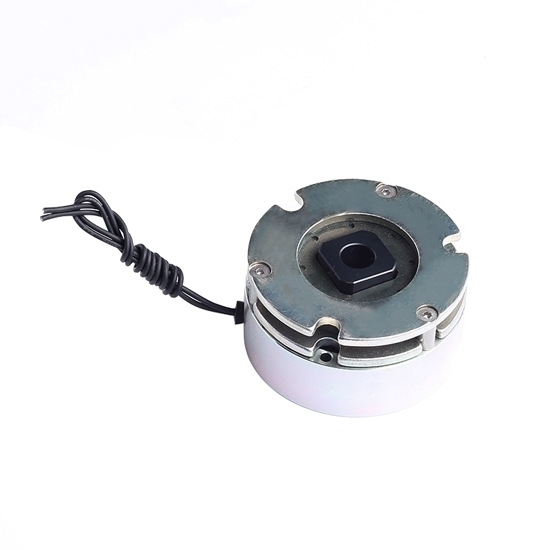

The 24V DC electromagnetic cut-off brake is made of high quality materials. It has advanced safety features such as thermal protection and overload protection to ensure reliable and safe operation under demanding operating conditions.

Specification

• Model: RDDLZ-POB-S130
• Static Torque: 12 Nm
• Rated Voltage: DC 24V
• Rated Power: 20W
• Closing Time: 100 m/s
• Max Speed: 2000rpm
• Disconnection Time: 60 m/s
• Insulation Grade: H
• Weight: 1.8kg

Features

• The electromagnetic power-off brake offers a dependable braking performance. The brake engages automatically when the power supply is interrupted or switched off.
• Power-off brakes are designed with a compact footprint, allowing for easy integration into various systems and machinery without occupying excessive space.
• The electromagnetic power-off brake has a quick response time, allowing for prompt engagement and disengagement.
• Due to their simple and robust design, 12 Nm power-off brakes require minimal maintenance.

Dimensions (unit: mm)

Applications

The electromagnetic power-off brake is suitable for various machinery applications such as metallurgy, machine tools, packaging, construction, chemical industry, food industry, stage equipment, elevators, ships, etc. It is used in situations where braking is required during power failure to achieve rapid stopping, precise positioning, and safe braking.

Tips: Can power-off brakes be released manually?

Power-off brakes, also known as parking brakes or handbrakes, are typically designed to be released manually. They are a mechanical braking system that is independent of the vehicle's hydraulic or pneumatic braking system. The purpose of power-off brakes is to secure the vehicle in a parked position when it is not in use.

To release power-off brakes manually, you usually have to engage a lever or push a button located inside the vehicle's cabin. The specific method for releasing the power-off brakes can vary depending on the make and model of the vehicle. In some cars, you may need to press a button on the dashboard or pull a lever located near the driver's seat. In others, you might have to step on a pedal or use a lever positioned on the floor.

It's important to consult your vehicle's manual for detailed instructions on how to release the power-off brakes for your specific vehicle, as the process may differ from car to car. Additionally, make sure that you release the power-off brakes only when it is safe to do so and you are ready to drive the vehicle.
