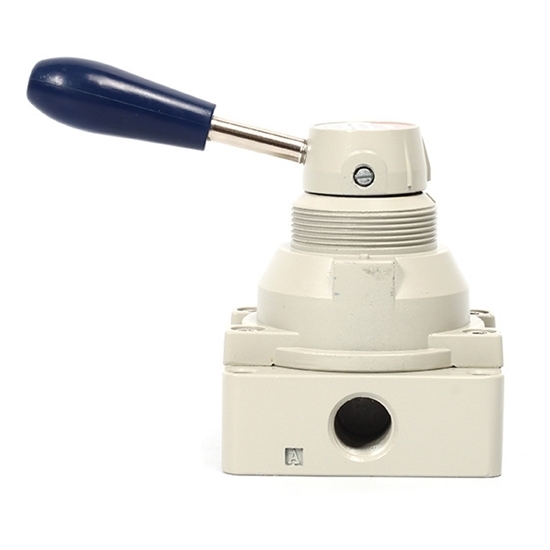

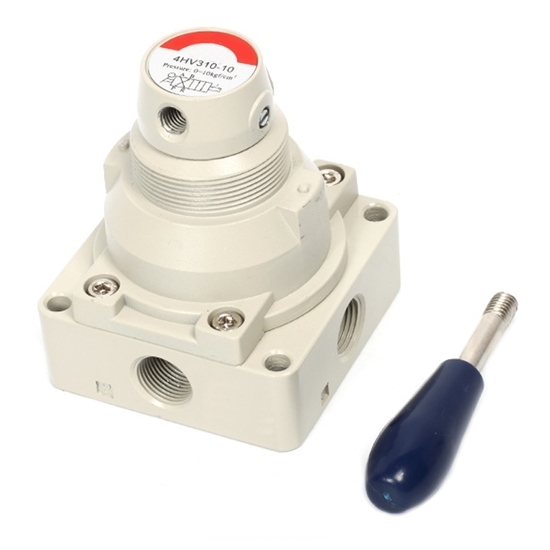

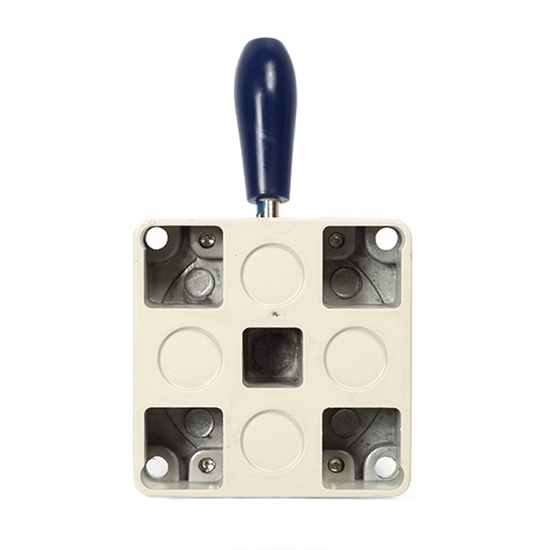

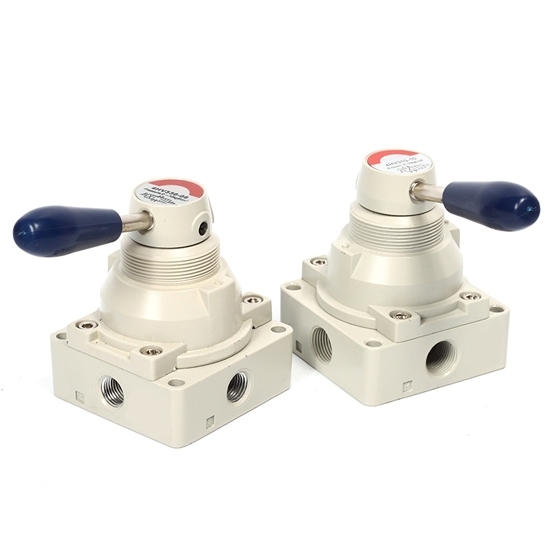

G1/2" Hand Lever Valve, 4 Way, 2/3 Position

0 reviews • Write a review

from

$75.39

Ex Tax: $75.39

Stock: In Stock
Model: RDDLZ-VALVE-12
Weight: 1.00
SKU: RDDLZ-VALVE-12

Available Options

Position

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This hand valve cannot be used for drinking water.

Low price hand lever valve is used in air chucks, pneumatic actuators, venturi vacuum generators and other pneumatic equipment which need manual operation.

Specification

Model		RDDLZ-4HV410-15	RDDLZ-4HV430-15
Working Media		Compressed Air
Action Mode		Direct-acting Type
Position		4/2 Port (4 Way, 2 Position)	4/3 Port (4 Way, 3 Position)
Port Size		G1/2
Lubrication		No Need
Working Pressure		1MPa
Proof Pressure		1.5MPa
Working Temperature		0 ~ 60℃
Operation Angle		90°
Material	Body	Aluminum Alloy
	Seal	NBR

Wiring Diagram

4 Way 2 Position

4 Way 3 Position

Dimensions (Unit: mm)

Model	A	B	C	D	E	F	G	H	I	J	K	L	M	N	P
RDDLZ-4HV410-15	109	70.5	2	G1/2	17.5	M52*1.5	130	6.5	101.5	89	63.5	3	81	94	160
RDDLZ-4HV430-15	109	70.5	2	G1/2	17.5	M52*1.5	130	6.5	101.5	89	63.5	3	81	94	160

Tips: What is a hand operated lever valve?

Hand operated lever valves use handles and levers to manipulate the valve action by manpower. When the valve opening and closing torque is large, a worm gear or reducer can be installed between the handle and lever. If necessary, universal joints and drive shafts can also be used for long-distance operations.
