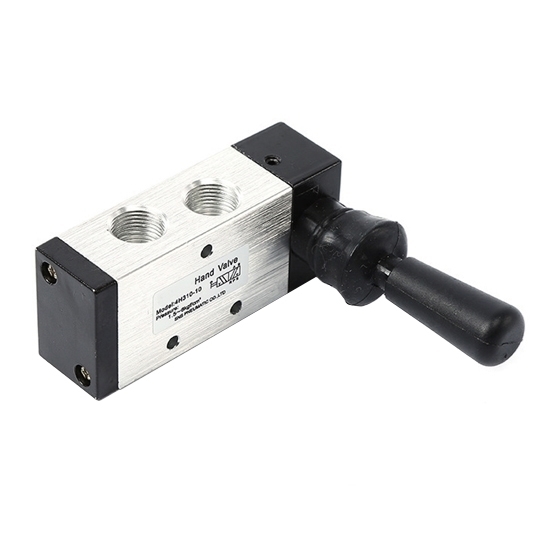

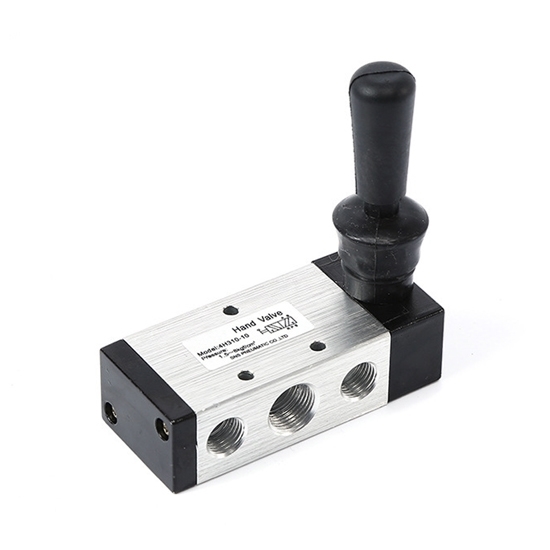

Pneumatic Hand Lever Valve, 3 Way, 2 Position

Pneumatic Hand Lever Valve, 3 Way, 2 Position
Pneumatic Hand Lever Valve, 3 Way, 2 Position
Pneumatic Hand Lever Valve, 3 Way, 2 Position
Pneumatic Hand Lever Valve, 3 Way, 2 Position
Pneumatic Hand Lever Valve, 3 Way, 2 Position
0 reviews • Write a review
from
$45.39
Ex Tax: $45.39
  • Stock: In Stock
  • Model: RDDLZ-VALVE-32
  • Weight: 1.00
  • SKU: RDDLZ-VALVE-32

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This hand valve cannot be used for drinking water.

Pneumatic hand operated lever valve is used to operate air cylinders. Its manual lever can control the movement of the spool, which allowing the air to pass.

Specification

ModelRDDLZ-3H210-08RDDLZ-3H310-10RDDLZ-3H410-15
Working MediaCompressed Air
Action ModeDirect-acting Type
Position3/2 Port (3 Way, 2 Position)
Effective Sectional Area16.0mm2 (Cv=0.89)30.0mm2 (Cv=1.67)50.0mm2 (Cv=2.79)
Port SizeInlet = Outlet = G1/4
Exhaust Port = G1/8		Inlet = Outlet = G3/8
Exhaust Port = G1/4		Inlet = Outlet = Exhaust Port = G1/2
LubricationNo Need
Working Pressure0 ~ 0.8MPa
Proof Pressure1.0MPa
Working Temperature0 ~ 60℃
MaterialBodyAluminum Alloy
SealNBR

Wiring Diagram

Dimensions (Unit: mm)

ModelABCDEFGHIJ
RDDLZ-3H210-089319.218.522G1/44.31838.73531
RDDLZ-3H310-109920.523.827G3/83.32027.74035.5
RDDLZ-3H410-1510532.53334G1/24.32745.55050

Tips:

The pneumatic hand lever valves usually go on reversing through the outer forces. When the outer strength disappears, the valve will come back to the original position and exchange the direction. The structure soloker knob and emergency push button with lock has the memory function. However, according to the function of valves, it's divided into three way and two position as well as 5 way 2 position. The 3/2 way usual is used to control the output signal of pneumatic system and the 5/2 way can directly drive the cylinder.
